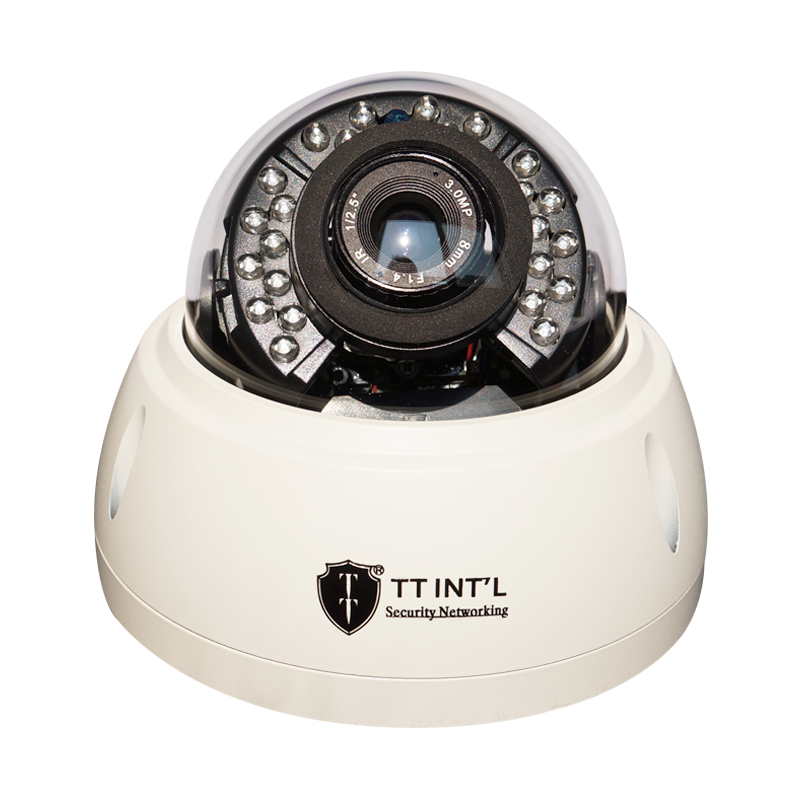

Face Capture IP Metal Dome
Features:
AI Intelligent Face Capture
2.0mp 1080P Full HD Sony Starlight Sensor
ICR Auto Switch for day/night vision
24pcs Infrared LEDs
6mm Fixed Iris CS Mount Lens
H264, H.265, AI-265 + Compression, Dual stream
Onvif Compatible to any Onvif NVR
WDR, 3D-NR, BLC, AWB
4 Area Mask, Audio, Motion Detection
Motion Alarm Auto E-mail Notification
Network Time Synchronization
iOS & android Smart Phone APP., Web IE, VMS
Vandal Proof Metal Case for Outdoor & Indoor
Specifications Send Inquiry Related Products
Camera | |
Main chip | Hi-silicon Hi3516EV200 |
Image Sensor | Color 1 / 2.8” Sony Starlight Sensor IMX307 |
Resolution | 1080P full HD (1920*1080P) |
Day/Night Vision | Dual Filter IRC auto switch |
Shutter | 1 / 25-1 / 10000 |
WBL | Support Automatic White Balance |
BLC | Support Backlight Compensation |
DNR | 3D Noise Reduction |
WDR | 120dB |
Motion Detection | Support Motion Detection |
Privacy Masking | Supports 4 Mask Area |
Mirror | Support Mirror Image |
OSD | Support OSD setting, can freely move the position |
Scheduled restart | Support scheduled restart |
Infrared Night Vision | 24pcs Infrared LEDs |
IR Distance | 25meters |
Lens | 6mm Fixed Iris CS Mount HD Lens |
Video | |
compression | H.264, H.265, AI-265+ |
Resolution | Mainstream: 1920 × 1080 |
Sub-stream: 448P (800 * 488), 704 * 576, 640 * 360, 352 *288 | |
Video Frame Rate | 2.0mp 1080p (25fps/50HZ/60HZ) |
Video Adjustment | Brightness, Saturation, Chroma, contrast, Sharpness Adjustment |
Network | |
Ethernet | RJ-45 10M/100M |
Wi-Fi | N/A |
Network protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search |
Protocols | Compatible to various ONVIF protocol version |
Maximum number of users | 4 |
Client Software | iPhone, iPad, Android, Windows IE and VMS |
Audio | |
Audio Format | G.711U |
Audio Input | 1 input (Optional) |
Audio Output | 1 output (Optional) |
General | |
Operating Temp. | -30 °C ~ 65 °C (-22 °F ~ 140 °F) |
Operating Humidity | Humidity 95% or less (non-condensing) |
Power Supply | 12V DC ± 25% |
Power Consumption | Max. 7.5W |
PoE | PoE (IEEE802.3af Class3) (Optional) |
IP Grade | IP66 |
Weight | 1KG |
Dimensions (mm) | 123mm *103mm |
