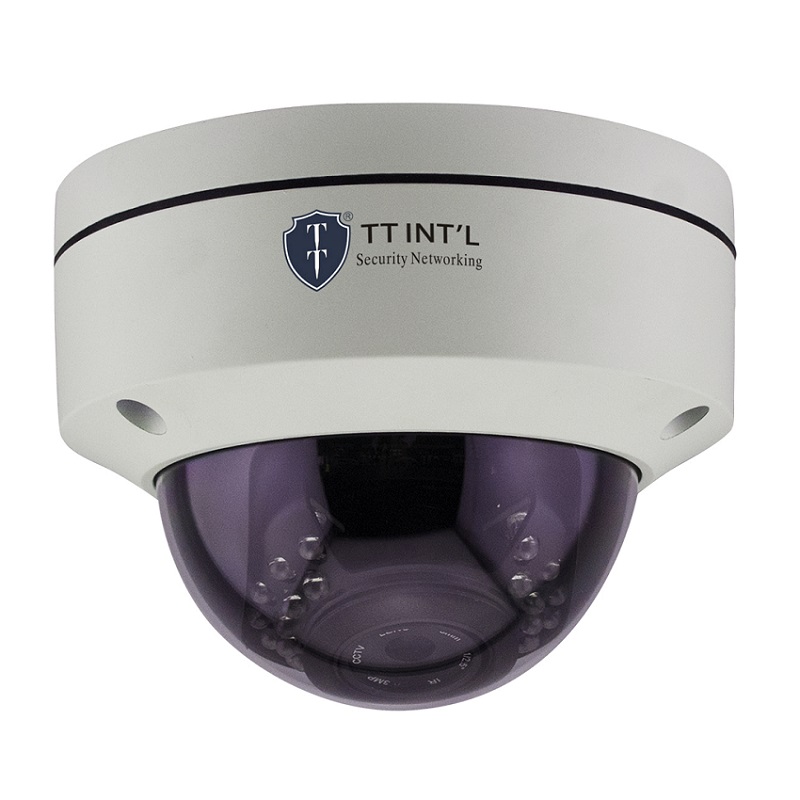

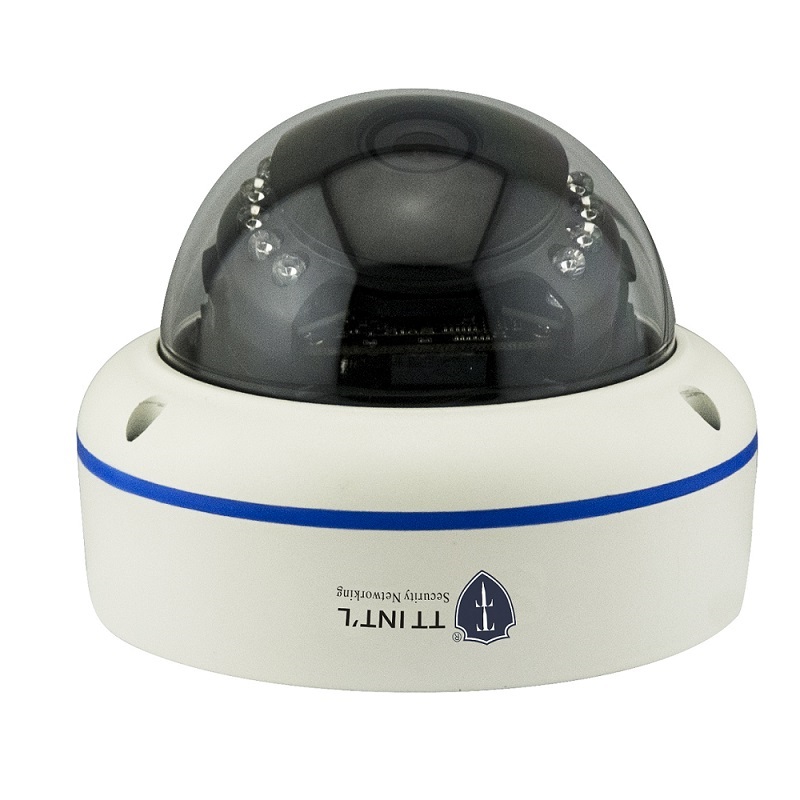

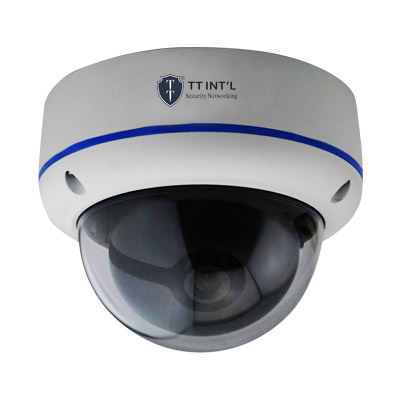

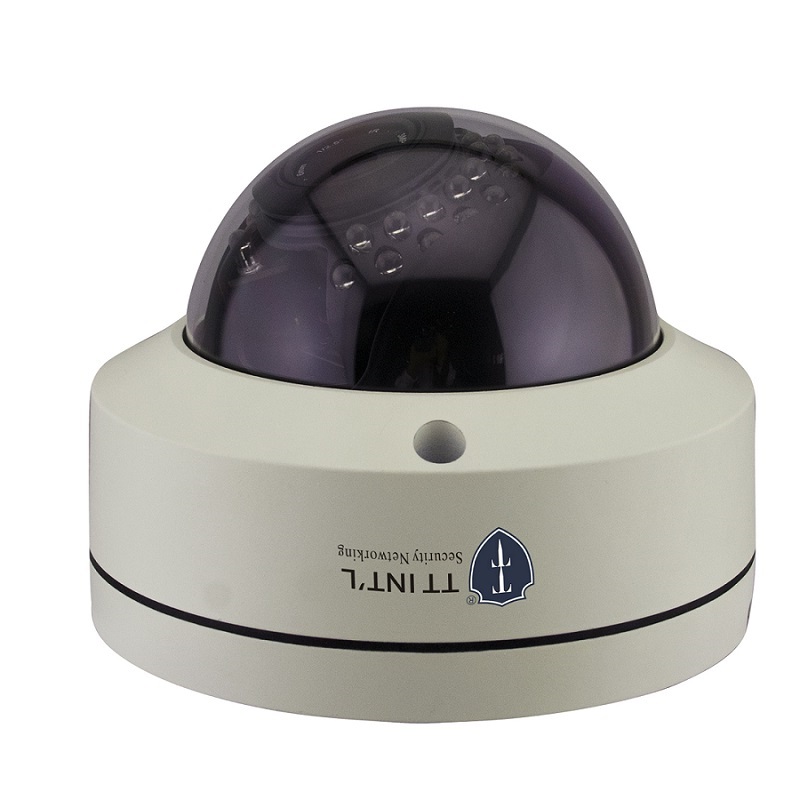

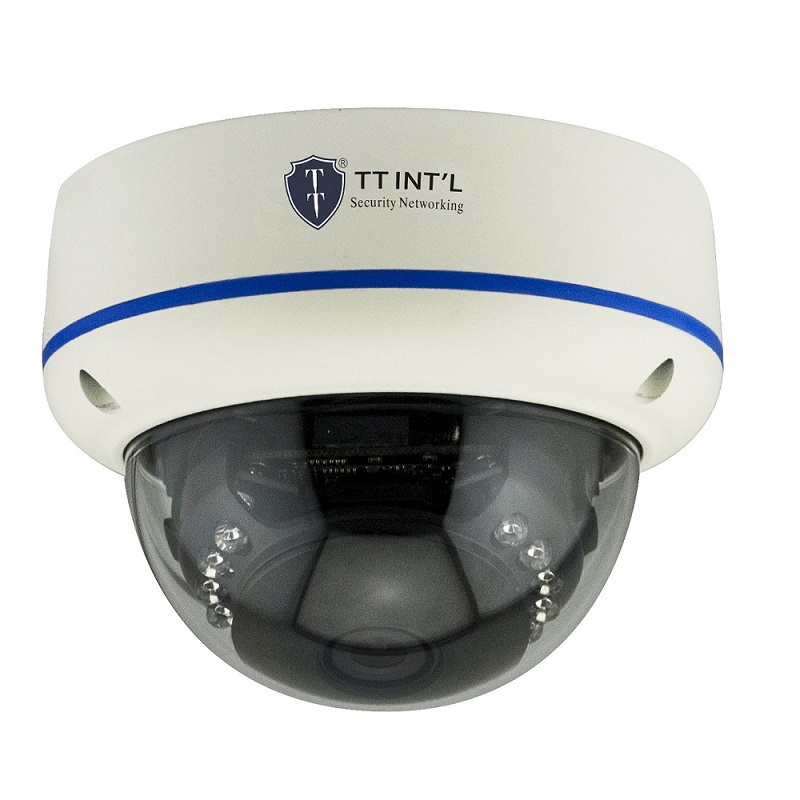

Face IP Camera Mini Metal Dome

Face IP Camera Mini Metal Dome

Features:

AI Intelligent Face Capture

2.0mp 1080P Full HD Sony Starlight Sensor

ICR Auto Switch for day/night vision

15pcs Infrared LEDs

6mm Fixed Iris Lens

H264, H.265, AI-265 + Compression, Dual stream

Compatible to Onvif and third-party NVR

WDR, 3D-NR, BLC, AWB

4 Area Mask, Audio, Motion Detection

Motion Alarm Auto E-mail Notification

Network Time Synchronization

iOS & android Smart Phone APP., Web IE, VMS

Vandal Proof Metal Case for Outdoor & Indoor


Enquiry

Specifications Send Inquiry Related Products

Camera

Main chip

Hi-silicon Hi3516EV200

Image Sensor

Color 1 / 2.8” Sony Starlight Sensor IMX307

Resolution

1080P full HD (1920*1080P)

Day/Night Vision

Dual Filter IRC auto switch

Shutter

1 / 25-1 / 10000

WBL

Support Automatic White Balance

BLC

Support Backlight Compensation

DNR

3D Noise Reduction

WDR

120dB

Motion Detection

Support Motion Detection

Privacy Masking

Supports 4 Mask Area

Mirror

Support Mirror Image

OSD

Support OSD setting, can freely move the position

Scheduled restart

Support scheduled restart

Infrared Night Vision

15pcs Infrared LEDs

IR Distance

15 meters

Lens

6mm Fixed HD Lens

Video

compression

H.264, H.265, AI-265+

Resolution

Mainstream: 1920 × 1080

Sub-stream: 448P (800 * 488), 704 * 576, 640 * 360, 352 *288

Video Frame Rate

2.0mp   1080p (25fps/50HZ/60HZ)

Video Adjustment

Brightness, Saturation, Chroma, contrast, Sharpness Adjustment

Network

Ethernet

RJ-45 10M/100M

Wi-Fi

N/A

Network protocol

HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS,   FTP, IP Search

Protocols

Compatible to various ONVIF protocol version

Maximum number of users

4

Client Software

iPhone, iPad, Android, Windows IE and VMS

Audio

Audio Format

G.711U

Audio Input

1 input (Optional)

Audio Output

1 output (Optional)

General

Operating Temp.

-30 °C ~ 65 °C (-22 °F ~ 140 °F)

Operating Humidity

Humidity 95% or less (non-condensing)

Power Supply

12V DC ± 25%

Power Consumption

Max. 6.5W

PoE

PoE (IEEE802.3af Class3) (Optional)

IP Grade

IP66

Dimensions (mm)

100mm*75mm
