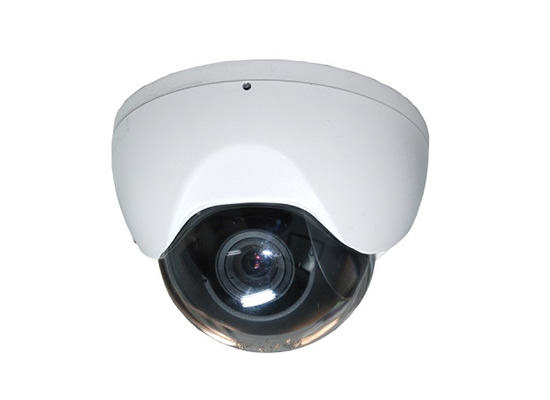

H.265 Super Star Light 5MP IP Dome Camera

Features:

H.265 Super Star Light IP Dome

1.8 " Super Low LuxStarvis Sensor

Super Star-light, HLC&BLC

Super H.265 Compression

6mm HD Lens

Built-in IR Cutter Filter

with Two-way Audio, Alarm in, RS-485, Restore

TF Card, Wifi, Alarm out optional

Built-in PoE

Support P2P, CMS, Dahua and Hikvition's Private Protocol

App. for IOS & Android

Support off screen resume feature

Support digital wide dynamic, 3D noise reduction, intelligent noise reduction

Intelligent detection, five anomalies detection, three behavioral analysis

Weatherproof &Vandal Proof for Outdoor & Indoor use



Enquiry

Specifications Send Inquiry Related Products



Model

TT-X3MVGSTP

TT-X5MVGSTP

Image Sensor

1/2.8" Progressive Scan CMOS

1/1.8" Progressive Scan SONY CMOS

Min. Illumination

0.001 Lux @ (F1.2, AGC on), 0.028 Lux @ (F2.0,   AGC on), 0 Lux with IR

0.01 Lux @ (F1.2, AGC on), 0.03 Lux @ (F2.0,   AGC on), 0 Lux with IR

Shutter Time

1/50 s ~ 1/10,000 s

1/50 s ~ 1/10,000 s

Lens

6mm HD Camera

6mm HD Camera

Day& Night

Auto Switch IR Cutter Filter

Auto Switch IR Cutter Filter

Wide Dynamic

120 dB

120 dB

DigitalNoise Reduction

3D DNR

3D DNR

Compression Standard

Video Compression

H.265+/H.265/H.264

H.265Code Profile

Main Profile

Video Bit Rate

32Kbps~16Mbps


Max. Image Resolution

2048*1536

2592*2048

Frame Rate

2048*1536 (25/30fps)

2592*2048 (25/30fps)

Image Enhancement

AGC,3D DNR, WDR, Sharpness

Image Settings

Supports Brightness, Contrast, Saturation,   Sharpness, White Balance; AWB, AGC, AE (Automatic Exposure Control); Supports   privacy area occlusion; OSD overlay; Image rotation: Normal 90 ° / 270 °.   Automatic, manual or automatic color to black and other witching methods

Day/Night Switch

Auto/Outside Trigger/Color/Black White

Smart Functions

Smart    Code

Support low code  rate, low delay, ROI region coding, support 4 ROI area

Smart Detection

Support mask detection, out of focus   detection, brightness detection, color detection, sound detection, detection   of remnants, motion detection, virtual cordon, regional invasion

Smart Control

Support intelligent control alarm startup,   alarm off, fault clearing, intelligent noise reduction

Network

Network Storage

NVR / PC / Phone

Network Interface

10M/100M adaptive Ethernet port

Protocols

IPv4/IPv6,802.1x,HTTPS, HTTP,   TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

System Compatibility

ONVIF2.42 / GB28181 / Hikvision   / Dahua

Number of Client Visits

Support 8 users login at the same time

Browser

IE, Firefox, Chrome

Interface

Communication Interface

1* RJ-45 10M/100MEthernet Port

Audio Input

AV Port

Audio Output

AV Port

Serial Port

RS-485

Reset button

1*Reset button

Alarm

1* Alarm output (Optional)

Alarm

1* Alarm Input

wireless

WIFI (Optional)

Micro SD

Micro SD/TFCard, Support Max.   128G (Optional)

General

Operating Temp.

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

OperatingHumidity

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%

PoE

PoE (IEEE 802.3af Class3)

Power Consumption

 Max. 7.5W

Max. 8.9W

IP Grade

IP66,IK10

Dimensions (mm)

135mm (W) x 110mm (H)

Net Weight (kg)

1kg
