H.265 4K 12MP Star Light IP Bullet Camera

Features:

12mp HD Low Lux Full Color IP Camera

1.7” SONY HD Star-Light Sensor

Super H.265 Compression

Built-in PoE, Super Star-Light

with Two-way Audio, Alarm in, BNC Out, RS-485, USB, Restore, TF Card Slot.

Built-in Fan and Heater

3.6-11mm 4K Motorized Zoom Lens (4X Optical)

90pcs White LEDs, Night Vision Distance: 35m

Built-in IR Cutter Filter

1* HDMI Output Port

Plug & Play, P2P, App for IOS & Android

Support P2P, CMS, VPN and Hikvition's Private Protocol

Support 4 intelligent ROI area setting, improve the image quality of the area

Supports intelligent encoding, automatically reduce image quality when video is stationary

and automatically enhance image quality when video in motion.

Support for shelter, out of focus and low-light intelligent detection

With Strong Bracket

Weatherproof for Outdoor & Indoor use with Housing


Enquiry

Specifications Send Inquiry Related Products

Model

TT-X12MCPMTP

Image Sensor

1/1.7" Progressive Scan CMOS

Min. Illumination

0.001 Lux @ (F1.2),    0 Lux with IR

Shutter Time

1/50 s ~ 1/10,000 s

Lens

3.6-11mm 4K Motorized Zoom Lens (4X Optical)

Day& Night

Auto Switch IR Cutter Filter

Wide Dynamic

120 dB

Digital Noise Reduction

3D DNR

Compression Standard

Video Compression

H.265 / H.264+ / H.264

H.265 Code Profile

Main Profile

Video Bit Rate

32Kbps~16Mbps


Max. Image Resolution

4000 * 3000

Frame Rate

4000*3000(15fps);4096*2160(25FPS)

Image Enhancement

AGC, 3D DNR, DWDR, Sharpness

Image Settings

Motion Detection, Privacy Mask, Video Tampering

Day/Night Switch

Auto / Outside Trigger / Color / Black White

Network

Network Storage

NVR & CMS

Protocols

TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP,   RTMP, Hikvition's Private Protocol

General Function

Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask

System Compatibility

ONVIF 2.4, PSIA, CGI, SPR

Browser

IE

Interface

Communication Interface

1* RJ45 10M/100M Ethernet Port

Audio Input

AV Port

Audio Output

AV Port

HDMI Output

1 CH HDMI 1.4A Output

TF Card

Support 128G

Alarm

2 CH Alarm Input

General

Operating Temp.

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Operating Humidity

Humidity 95% or less (non-condensing)

Power Supply

12VDC±25%, PoE (IEEE 802.3af Class3)

Power Consumption

 Max. 7.5W

Others

Built-in Fan and Heater

Weather Proof

IP66

IR Range

35 Meters

Dimensions (mm)

390 mm * 110mm * 140mm

Net Weight (kg)

4.5kg


Send Inquiry

Please enter the characters below

Enter your inquiry details such as product name, color, size, MOQ, FOB, etc.

Send Inquiry

Please enter the characters below

Enter your inquiry details such as product name, color, size, MOQ, FOB, etc.

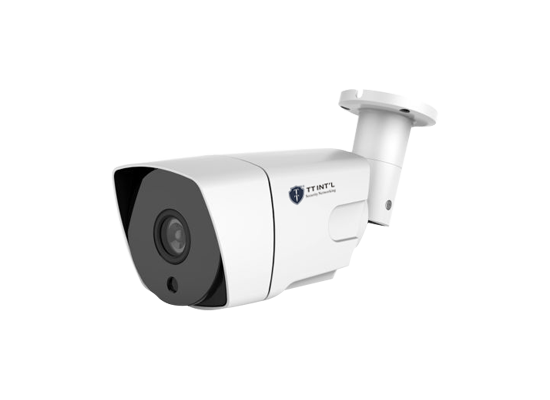

4 Megapixel Array IP B...

Bullet IP Camera

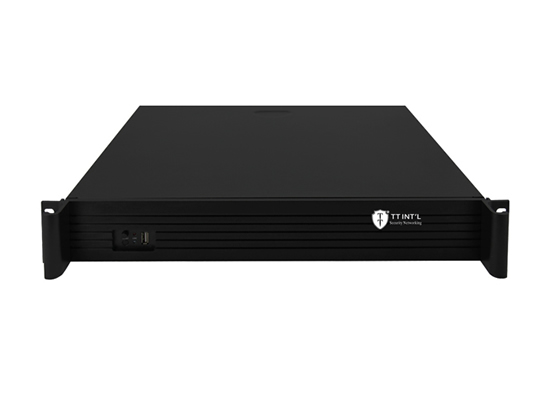

H.265 36CH 4K/5MP/1080...

36CH

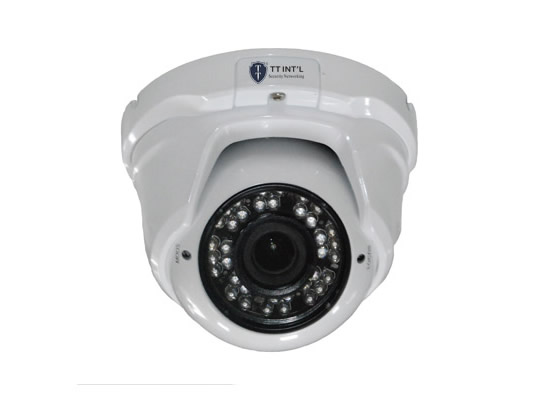

4MP Eyeball Varifocal ...
