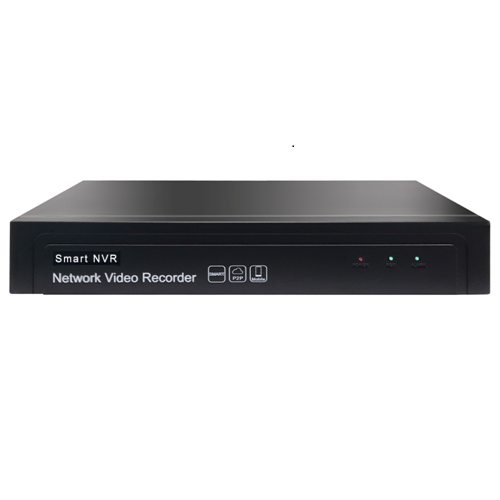

16 Channel 5MP NVR H.265

16 Channel 5MP NVR H.265

Features:

H.265 / H.264 Encoding.

Support ONVIF protocol, Highprofile S, Highprofile G.

Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.

P2P Cloud Services.

Playback and Preview Simultaneously.

Self-adaptive stream for preview and playback, Max. 720P for 4CH, Max. 2592*1944 for Single Channel.

CMS or VMS Provided.


Enquiry

Specifications Send Inquiry Related Products

Technical Parameters:

Model No.

TT-NVR51615M

Operating System

Embedded LINUX operating system

Video Standard

H.265+/ H.265/H.264

Intelligent

with Smart IPC

Target Count, Object Left /Lost,   Area Detection, Line Crossing

Video & Audio Input

Video Input

16CH 5MP H.265+/H.265/H.264 IP   Camera

Bandwidth

40M

Audio Input

IPC composite   stream network audio input

Video & Audio Output

HDMI Output

1CH, HDMI can output audio at the same time

VGA Output

1CH

Preview Split

1/4//9/16 screen

Video & Audio Coding

Video Resolution

5MP/4MP/3MP/1080P and below   resolution

Synchronized Playback

4CH

External

Ports

Internet

1 * RJ45 10M/100M adaptive Ethernet   port

USB

2 * USB2.0 rear

HDD

HDD Port

1 * SATA

MAX Capacity

up to 8TB

Network Management

Network Protocol

UPnP (Plug & Play), SNMP (Simple   Network Management), NTP (Network Timekeeping), SADP (Device Network Search),   SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE   (Dial-up Internet access), DHCP (automatically obtain IP address)

P2P

Remote Monitoring

Umeyepro

AEeye

Supports iPhone, iPad, Android Smart   phone

Supports Windows 7 and above   computer client, supports Apple MAC computer client

Power Supply

DC 12V2A (external adapter)

Working Temperature

-10--55

Working Humidity

10-90

Power Consumption

≤10W (without HDD)

Dimensions

Device : 255*220*43mm, Packing : 358*93*258mm

Weight (Without HDD)

N.W. : 0.75Kg; Packing: 1.1Kg

External Carton Package

10 pcs/carton. Dimension : 462*365*530mm   ; Weight : 12Kg

Installation Method

Desktop installation
