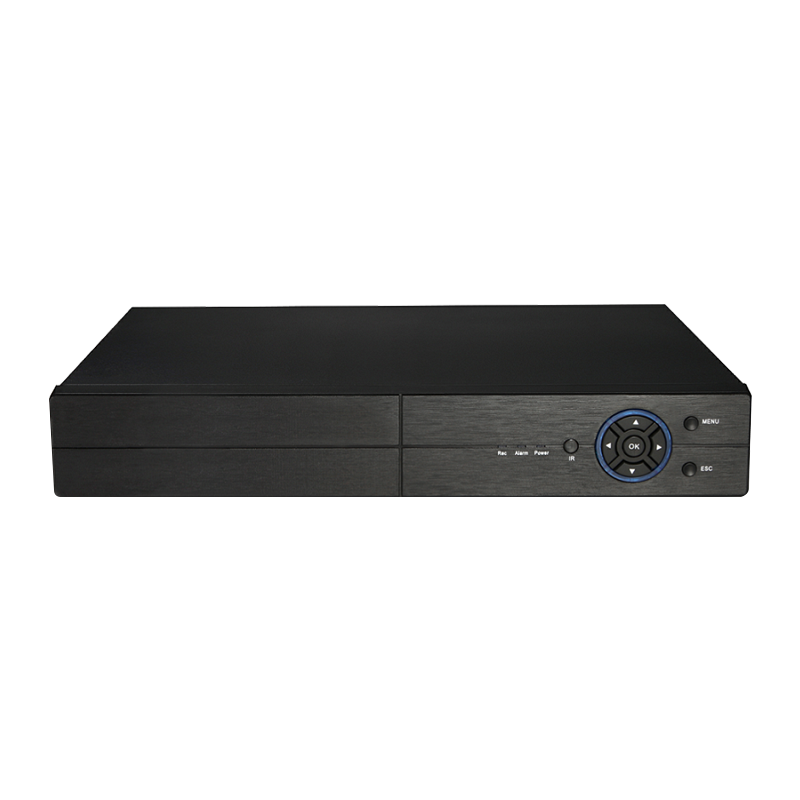

16CH AI Intelligent Face NVR

16CH AI Intelligent Face NVR

Features:

AI Face Analysis NVR

16 Channel camera access (Max. Support up to 5mp camera)

4 Ch Face Comparison Synchronizely,

Intelligent face retrieval and playback (IP Camera must has face function)

Face Capture, Comparison and Playback

Search video by face picture, and search face by face picture.

Maximum 5000 face pictures can be stored in 16 face databases.

Linkage of local voice broadcast, and LED display alarm.

IE Web Page, VMS, Onvif 2.6V, App for IOS & Android

VGA and HDMI simultaneous display, HDMI 1080P output.

2 SATA interfaces, each HDD upto 6TB

Enquiry

Specifications Send Inquiry Related Products

System

Model

TT-NVR216AI

Main Chip

HI3536D

Operating System

Embedded Linux operating system

Interface

Operation Interface

Graphical operation interface, support mouse / keyboard operation

Screen Display

1/4/9/16 screen

Video

Video Access

16CH 5MP

Video Frame Rate

NTSC @ 30 frames, PAL @ 25 frames

Video Output

VGA * 1, HDMI * 1

Image Decoding

H.264 / H.265 / H.265 +

Mask

Support (require IPC support this function too)

Motion Detection

Support (require IPC support this function too)

Smart Function

Face List Database

5000 faces can be stored in 16 databases

Face Recognition

Support 1CH face comparison (requires face capture camera to support)

Face Capture

Support  face capture function (requires face capture camera to support)

Face Retrieval

Support event retrieval, face image retrieval, U disk upload image retrieval

Human Detection

Support humanoid detection function (requires humanoid detection camera)

Audio

Audio Format

G.711U, G.711A, G.726

Audio Intercom

N/A

Audio Input

1: 1 network audio input based on number of channels

Audio Output

Support HDMI output audio, support 1CH RCA output

Video Playback

Video Recording

Timing recording, motion detection recording, manual recording,

smart recording

Playback Channel

4CH 960P playback or 1CH 5MP Playback

Video Playback Search

Point-in-time playback, log event playback, time bar playback, fast playback, smart event playback

Backup Storage

Video Save

Local hard disk, network

Backup Method

USB mobile hard disk, U disk

Remote Monitoring

Phone Monitoring

Support (iPhone, Android) smart phone

Computer Monitoring

Support IE, VMS client remote monitoring

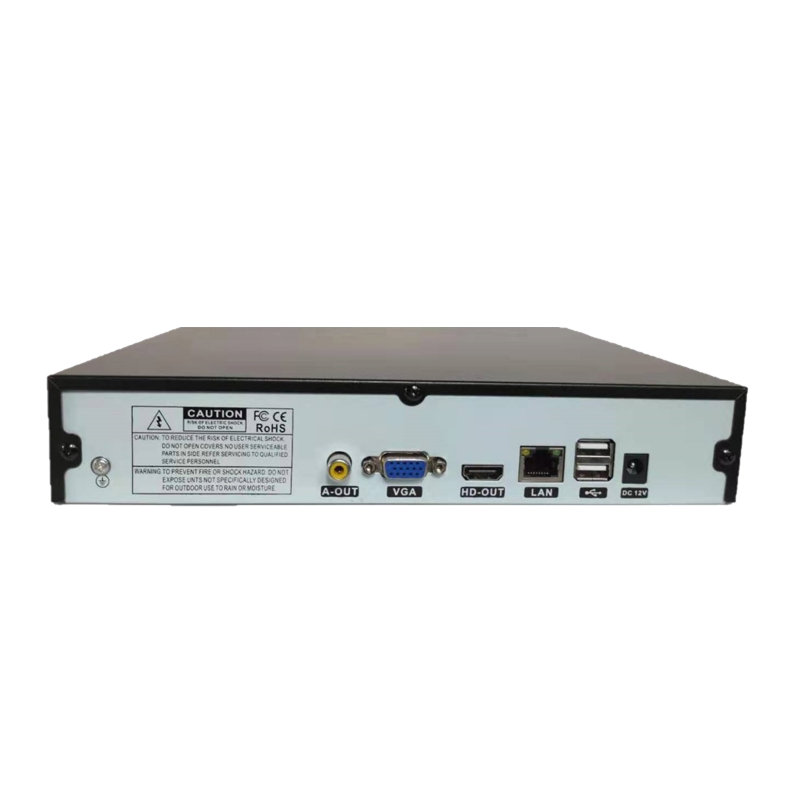

External Interface

Video Output

1 VGA, 1 HDMI interface

Network Interface

1 RJ45 10 / 100M adaptive Ethernet interface

Alarm Interface

N/A

485 Interface

N/A

USB Interface

2 USB 2.0   ports

Hard Disk Interface

2 SATA 2.0 interface; SATA interface supports a maximum capacity of 6T

Other

PTZ Control

Control PTZ via network

ONVIF

Support

Power Supply

DC12V 3A

Power Consumption

≤18W

Working  Environment

-10+50 10%95%RH
