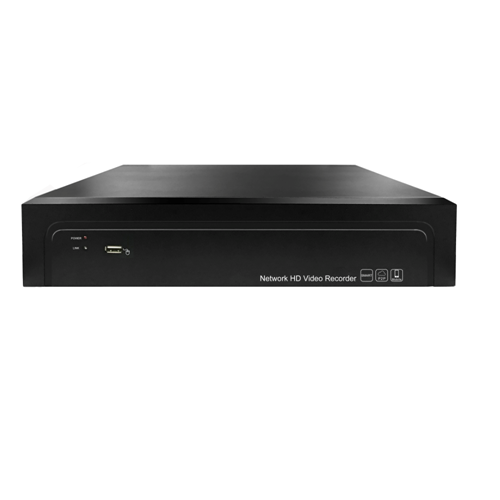

32 Channel 5MP NVR H.265

32 Channel 5MP NVR H.265

Features:

H.265 / H.264 Encoding.

Support ONVIF protocol, Highprofile S, Highprofile G.

Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.

P2P Cloud Services.

Playback and Preview Simultaneously.

Self-adaptive stream for preview and playback, Max. 1080P for 4CH, Max. 3840*2160 for Single Channel.

CMS or VMS Provided.


Enquiry

Specifications Send Inquiry Related Products

Technical Parameters:

Model No.

TT-NVR53225M

Operating System

Embedded LINUX operating system

Video Standard

H.265+/ H.265/H.264

Intelligent

with Smart IPC

Target Count, Object Left /Lost, Area Detection,   Line Crossing

Video & Audio Input

Video Input

32CH 5MP, 25CH 5MP, 16CH 4K   H.265+/H.265/H.264 IP Camera

Bandwidth

80M

Audio Input

IPC composite stream network audio   input

Video & Audio Output

HDMI Output

1CH, Resolution : 4K(3840*2160)/30Hz, 1920*1080/60Hz,   1600*1200/60Hz,

1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

VGA Output

1CH, Resolution : 1920*1080/60Hz, 1280*1024/60Hz,   1280*720/60Hz,

1024*768/60Hz

Preview Split

1/4//9/16 screen

Video & Audio Coding

Video Resolution

8MP/5MP/4MP/3MP/1080P and below   resolution

Synchronized Playback

16ch /9ch /4ch Synchronized PlaybackDifferent in various access modes

Network Port

1 * RJ45 10M/100M adaptive Ethernet   port

USB Port

Front 1 * USB2.0; Rear 1 * USB2.0

HDD

HDD Port

2 * SATA

MAX Capacity

Each port up to 8TB

Network Management

Network Protocol

UPnP (Plug & Play), SNMP (Simple Network   Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP   (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up   Internet access), DHCP (automatically obtain IP address)

P2P

Remote Monitoring

Umeyepro

AEeye

Supports iPhone, iPad, Android Smart   phone

Supports Windows 7 and above computer   client, supports Apple MAC computer client

Power Supply

DC 12V3A (external adapter)

Working Temperature

-10--55

Working Humidity

10-90

Power Consumption

≤15W (without HDD)

Dimensions

Device : 350*240*68mm, Packing : 409*365*129mm

Weight (Without HDD)

N.W. : 1.3Kg ; Packing : 2Kg

External Carton Package

5 pcs/carton. Dimension : 675*425*385mm   ; Packing : 12Kg

Installation Method

Desktop installation
