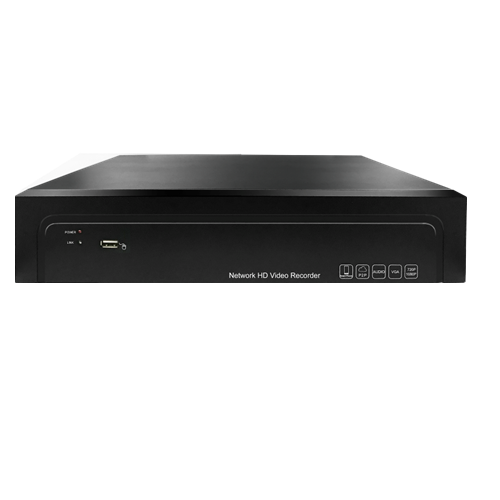

H.265 16CH 4K NVR with 16CH POE

H.265 16CH 4K NVR with 16CH POE

Features:

H.265 / H.264 Encoding.

Support ONVIF protocol, Highprofile S, Highprofile G

Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.

P2P Cloud Services.

Playback and Preview Simultaneously.

Self-adaptive stream for preview and playback, Max. 720P for 4CH, Max. 2592*1944 for Single Channel.

CMS or VMS Provided.


Enquiry

Specifications Send Inquiry Related Products

Technical Parameters:

Model No.

TT-NVR51624KP16

Operating System

Embedded LINUX operating system

Video Standard

H.265+/ H.265/H.264

Intelligent   Support

with Smart IPC

Target Count, Object   Left /Lost, Area Detection, Line Crossing

Video & Audio Input

Video Input

    32 digital2592*1944+36 Preview+9 Playback, 32ch 5MP below channel IPC

    25 digital2592*1944+25 Preview+9 Playback,  25ch 5MP below channel IPC

    16 digital3840*2160+16 Preview+16   Playback,  16ch 4K below channel IPC

    8 digital3840*2160+9 Preview+9   Playback,  8ch 4K below channel IPC

    4 digital3840*2160+4 Preview+4   Playback,  4ch 4K below channel IPC

Bandwidth

80M

Audio Input

IPC composite stream network audio input

Video & Audio Output

HDMI Output

1ch , HDMI can output audio at the same time,

Note32ch25ch 5MP input 1080P resolution, 16ch,   8ch, 4ch input 4K resolution

VGA Output

1ch

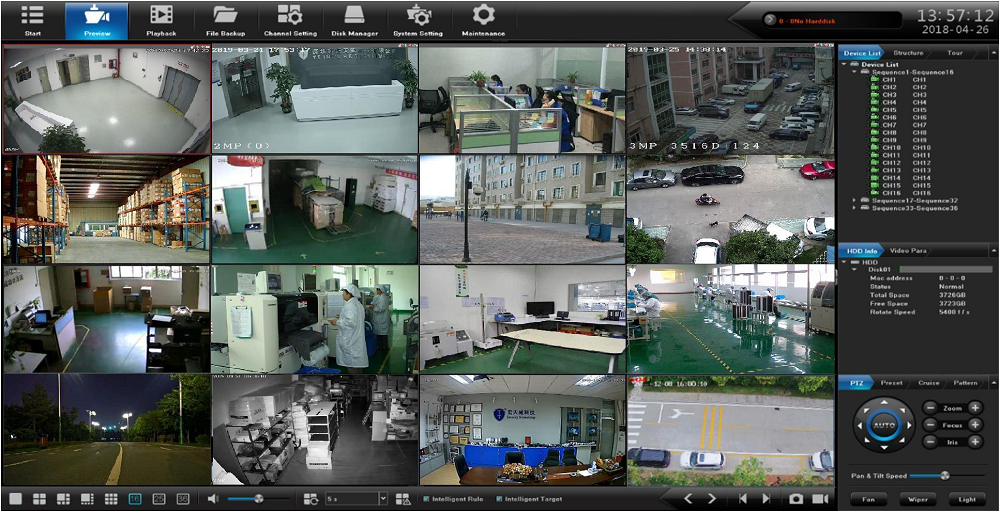

Preview Split

In 32ch mode, 36 screens split max sub-stream VGA(640*480,   or704*416) , single screen main stream

In 25ch mode, 25 screens split max sub-stream   D1(704*576) , single screen main stream

In 16ch mode, 16 screens split max   sub-stream D1(704*576), single screen main stream

In 8ch mode, 9 screens split max   sub-stream D1(704*576), single screen main stream

In 4ch mode, 4 screens split max   sub-stream D1(704*576) , single screen main stream

Video & Audio Coding

Video Resolution

4K/5MP/4MP/3MP/1080P and below   resolution

Synchronized Playback

4ch

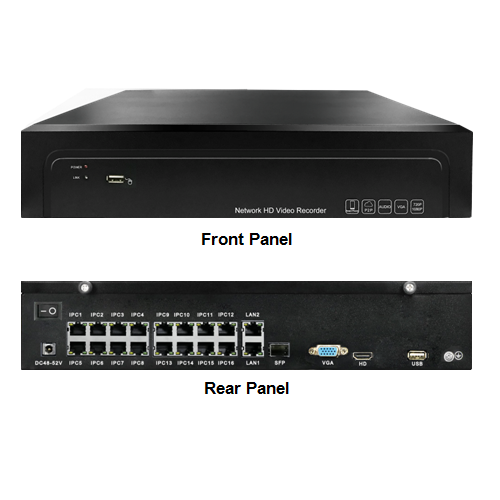

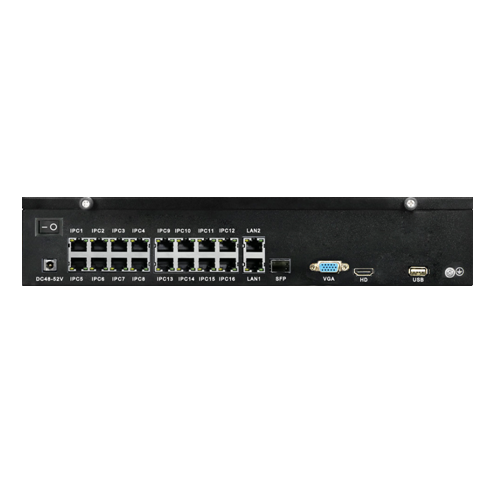

External Port

Internet Port

1 *, RJ45 10M/100M adaptive Ethernet   port

USB Port

2 * USB2.0, Front 1x, Rear 1x

HDD

HDD Port

2 * SATA

MAX Capacity

Single port up to 8TB

POE

Port

8 *   independent 10/100Mpbs Ethernet port, support 200M network cable

Support Standard

IEEE802.3af

P2P

Remote Monitoring

Umeyepro

AEeye

Supports iPhone, iPad, Android Smart   phone

Supports Windows 7 and above computer   client, supports Apple MAC computer client

Power Supply

DC 52V4.62A

Working Temperature

-10--55

Working Humidity

10-90

Power Consumption (no HDD)

POE≤208W, NVR main board≤8W

Dimensions

Device350*240*68mm, Packing409*365*129m

Weight (Without HDD)

N.W.2Kg ; Packing3.5Kg

External Carton Package

5 pcs/carton.   Dimension675*425*385mm   ; Packing19Kg

Installation Method

Desktop installation
