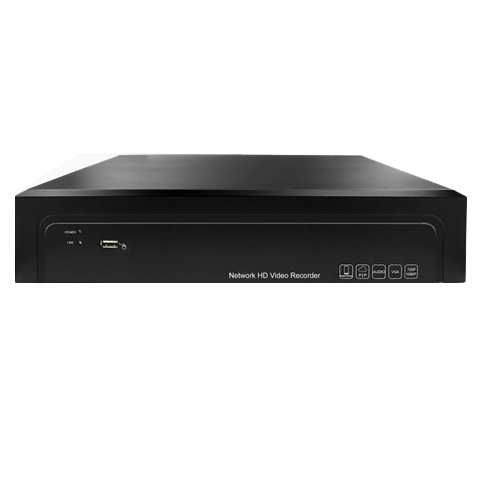

H.265 16CH 4K NVR with 8CH POE

H.265 16CH 4K NVR with 8CH POE

Features:

H.265 / H.264 Encoding.

Support ONVIF protocol, Highprofile S, Highprofile G

Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.

P2P Cloud Services.

Playback and Preview Simultaneously.

Self-adaptive stream for preview and playback, Max. 720P for 4CH, Max. 2592*1944 for Single Channel.

CMS or VMS Provided.


Enquiry

Specifications Send Inquiry Related Products

Technical Parameters:

Model No.

TT-NVR51624KP8

Operating System

Embedded LINUX operating system

Video Standard

H.265+/ H.265/H.264

Intelligent

with Smart IPC

Target Count, Object Left /Lost, Area Detection,   Line Crossing

Video & Audio Input

Video Input

    32 digital2592*1944+36 Preview+9 Playback, 32ch 5MP or below channel IPC

    25 digital2592*1944+25 Preview+9 Playback,  25ch 5MP or below channel IPC

    16 digital3840*2160+16 Preview+16   Playback,  16ch 4K or below channel IPC

    8 digital3840*2160+9 Preview+9   Playback,  8ch 4K or below channel IPC

    4 digital3840*2160+4 Preview+4   Playback,  4ch 4K or below channel IPC

Bandwidth

80M

Audio Input

IPC composite stream network audio input

Video & Audio Output

HDMI Output

1ch , HDMI can output audio at the same time,

Note : 32ch25ch 5MP input 1080P resolution,   16ch, 8ch, 4ch input 4K resolution

VGA Output

1ch

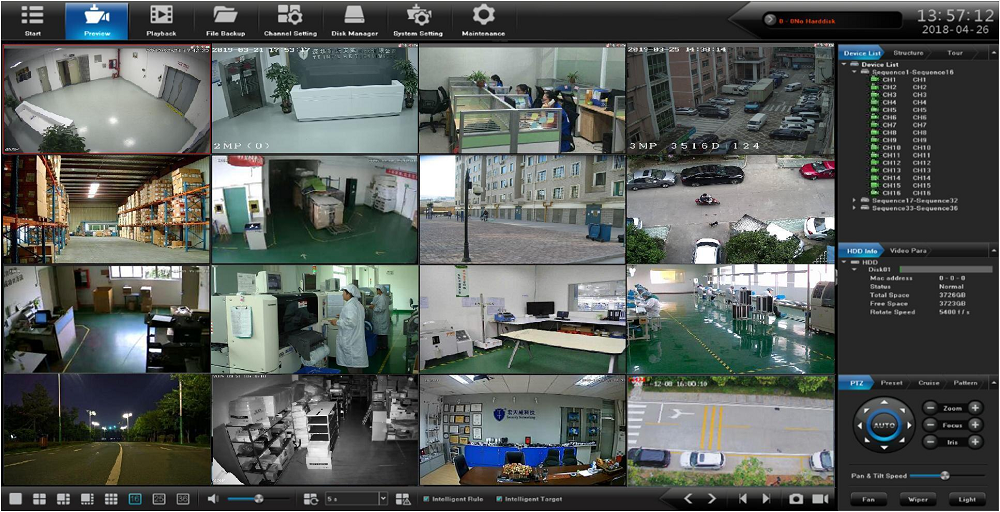

 Preview Split

In 32ch mode, 36 screens split max sub-stream VGA(640*480,   or704*416) , single screen main stream

In 25ch mode, 25 screens split max   sub-stream D1(704*576),  single screen main stream

In 16ch mode, 16 screens split max   sub-stream D1(704*576) ,  single screen   main stream

In 8ch mode, 9 screens split max   sub-stream D1(704*576) ,  single screen   main stream

In 4ch mode, 4 screens split max   sub-stream D1(704*576) ,  single screen   main stream

Video & Audio Coding

Video Resolution

4K/5MP/4MP/3MP/1080P and below   resolution

Synchronized Playback

4ch

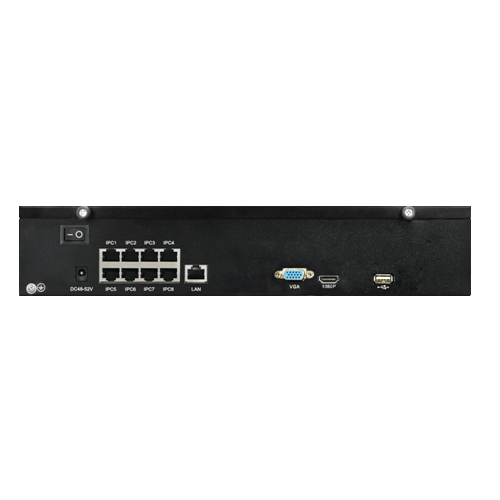

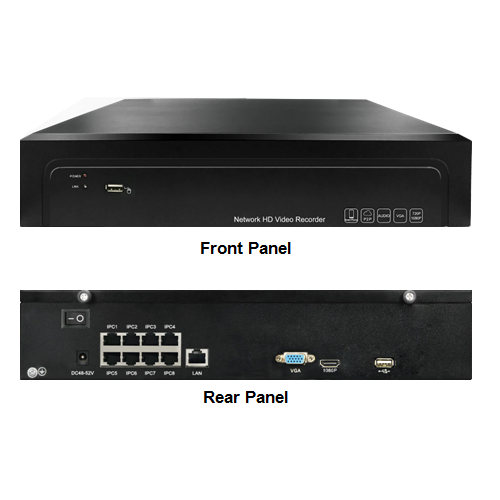

External Port

Internet Port

1 * RJ45 10M/100M adaptive Ethernet   port

USB Port

2 * USB2.0, Front 1x, Rear 1x

HDD

HDD Port

2 * SATA

MAX Capacity

Single port up   to 8TB

POE

Port

8 *   independent 10/100Mpbs Ethernet port, support 200M network cable

Support Standard

IEEE802.3af

P2P Remote Monitoring

Umeyepro

AEeye

Supports iPhone, iPad, Android Smart   phone

Supports Windows 7 and above   computer client, supports Apple MAC computer client

Power Supply

DC 52V 2.3A

Working Temperature

-10--55

Working Humidity

10-90

Power Consumption (no HDD)

POE≤104W, NVR main board≤8W

Dimensions

Device : 350*240*68mm, Packing : 409*365*129m

Weight (Without HDD)

N.W. : 1.8Kg ; Packing : 3.2Kg

External Carton Package

5 pcs/carton.   Dimension : 675*425*385mm ; Packing : 18 Kg

Installation Method

Desktop   installation
