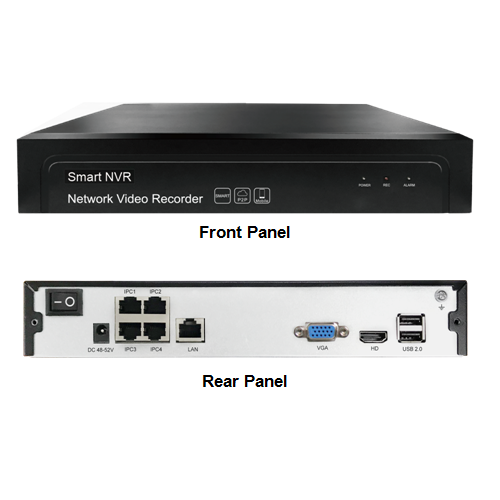

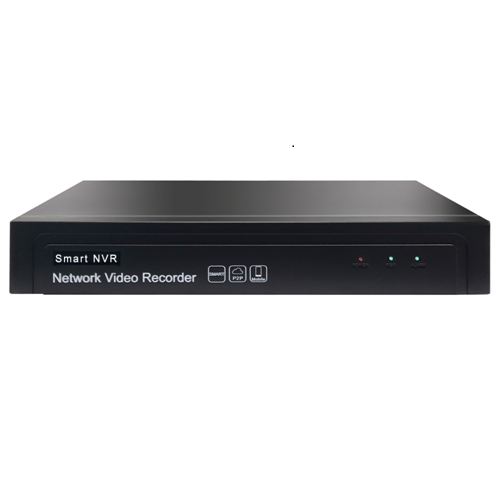

H.265 16CH 5PM NVR with 4CH POE
Features:
H.265 / H.264 Encoding.
Support ONVIF protocol, Highprofile S, Highprofile G
Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.
P2P Cloud Services.

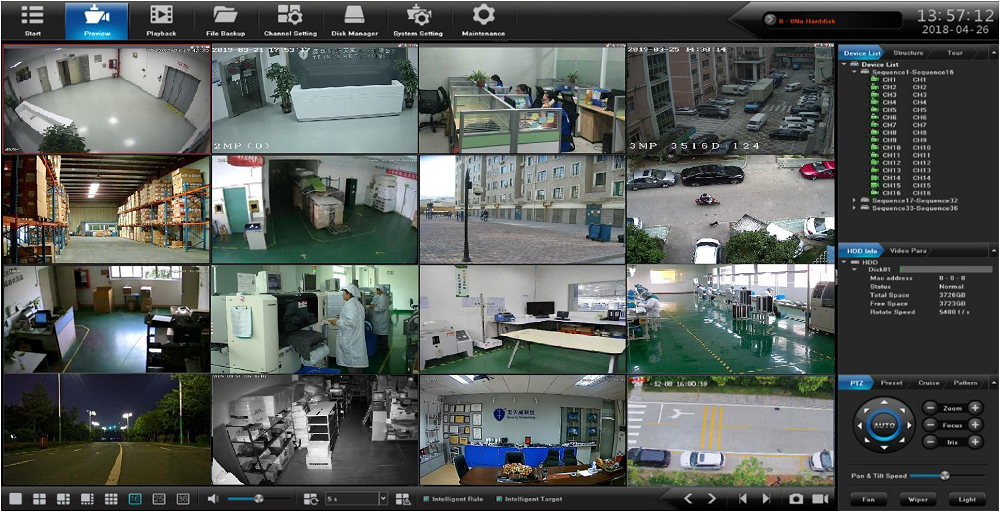

Playback and Preview Simultaneously.
Self-adaptive stream for preview and playback, Max. 720P for 4CH, Max. 2592*1944 for Single Channel.
CMS or VMS Provided.
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-NVR51615MP4 | ||
Operating System | Embedded LINUX operating system | ||
Video Standard | H.265/H.264 | ||
Intelligent | with Smart IPC | Target Count, Object Left /Lost, Area Detection, Line Crossing | |
Image Coding Control | Image code quality adjustable, variable stream and limited stream selectable | ||
Double Bit Stream | Each channel can be set | ||
Video Standard | 5MP | ||
Monitoring Image Quality | 1080P | ||
Image Motion Detection | Single screen detects multiple areas, 6 level sensitivity can be set up (IPC support). | ||
Playback Resolution | Supporting adaptive bit stream playback: 8 screen D1, 4 picture 1280*720, single screen 2592*1944 | ||
Region Cover | Each block supports 4 block blocks (with IPC support). | ||
Recording Mode | Support manual, automatic, dynamic monitoring, alarm triggering video mode (part IPC support). | ||
Backup Way | Support hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup. | ||
Operation Way | Mouse | ||
Local Login | Username and password | ||
Video Storage | Local hard disk, network | ||

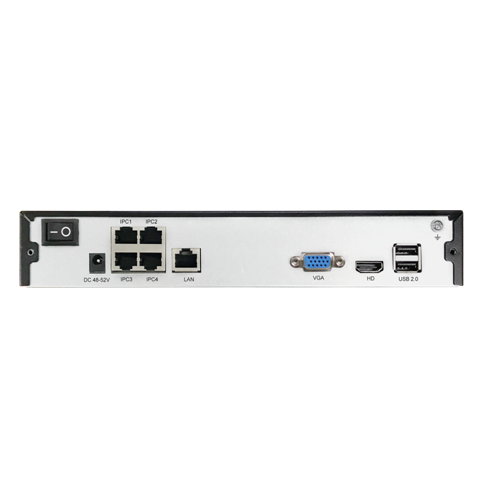

External Ports | Network Video | 4ch 5.0MP H.265/H.264 IP camera | |
Video Input | 1chVGA+1ch HDMI | ||
Video Output | 1 * RJ45,10M/100M adaptive Ethernet port | ||
Network Port | 2 * USB 2.0 Port（back panel） | ||
HDD | USB port | 1 * SATA HDD Port | |
HDD Port | Each interface supports a hard disk with the maximum capacity of 8TB | ||
POE | Max Capacity | 4* independent 10/100 Mbps Ethernet power supply interfaces | |
Port | IEEE802.3af | ||
Phone Monitoring | Support iPhone, Android system smart phone | ||
Power Supply | 52V1.5A | ||
Power Consumption | POE consumption≤40W; NVR Main board function≤8W (without HDD) | ||
Working Temperature | -10℃～＋55℃ | ||
Working Humidity | 10％-90％ | ||
Dimension | Equipment : 260*220*43mm, Packing : 355*255*88.5mm | ||
Weight (Without HDD) | N.W. : 0.85Kg ; With packing : 1.2Kg | ||
External Carton Package | 10 pcs/carton.462*365*530mm ; Weight : 13 Kg | ||
Installation Method | Desktop installation | ||
