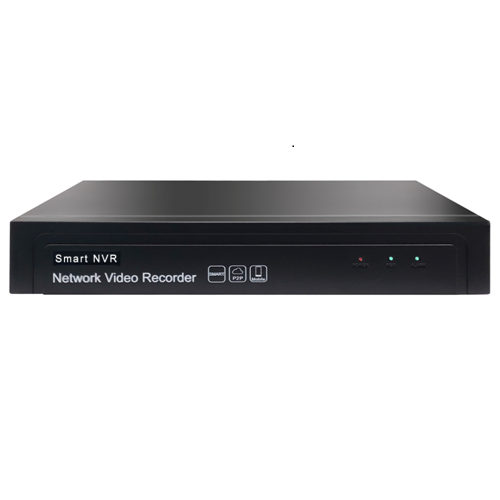

H.265 16CH 5PM NVR with 8CH POE

H.265 16CH 5PM NVR with 8CH POE

Features:

H.265 / H.264 Encoding.

Support ONVIF protocol, Highprofile S, Highprofile G

Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.

P2P Cloud Services.

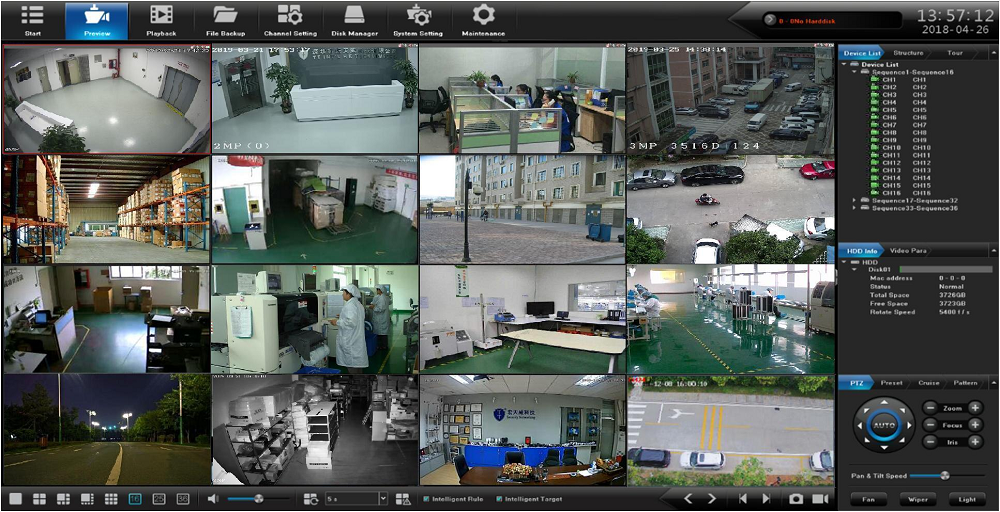

Playback and Preview Simultaneously.

Self-adaptive stream for preview and playback, Max. 720P for 4CH, Max. 2592*1944 for Single Channel.

CMS or VMS Provided.


Enquiry

Specifications Send Inquiry Related Products

Technical Parameters:

Model No.

TT-NVR51615MP8

Operating System

Embedded   LINUX operating system

Video Standard

H.265/H.264

Intelligent

with   Smart IPC

Target Count, Object Left /Lost, Area   Detection, Line Crossing

Image Coding Control

Image code quality adjustable,   variable stream and limited stream selectable

Double Bit Stream

Each channel can be set

Video Standard

5MP

Monitoring Image Quality

1080P

Image Motion Detection

Each screen can detect multiple   detection areas, and 6 level sensitivity can be set up (IPC support).

Playback Resolution

Supporting   adaptive bit stream playback: 8 screen D1, 4 screen 1280*720, single screen 2592*1944

Region Cover

Each block supports 4 block   blocks (with IPC support).

Recording Mode

Support manual, automatic,   dynamic monitoring, alarm triggering video mode (part IPC support).

Backup Way

Support hard disk, U disk, USB   mobile hard disk, USB burn, network storage and backup.

Operation Way

Mouse

Local Login

Username and password

Video Storage

Local hard disk, network

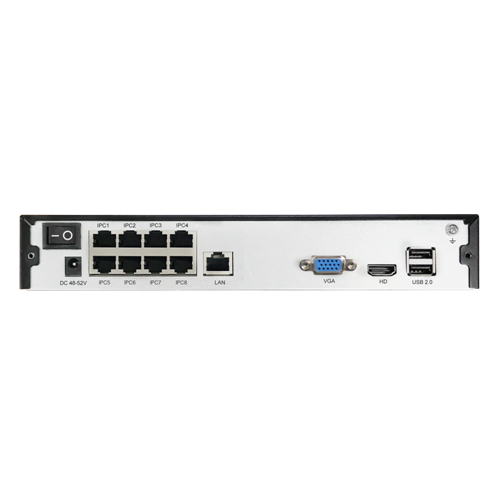

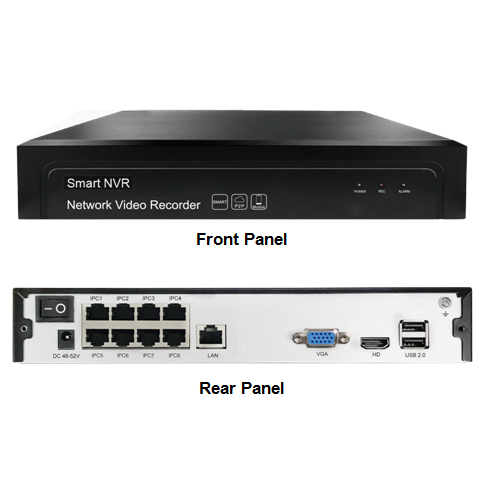

External Ports

Network Video

8ch 5.0MP   H.265/H.264 IP camera

Video Input

1chVGA+1ch   HDMI

Video Output

1 * RJ45,10M/100M   adaptive Ethernet port

Network Port

2 * USB   2.0 Portback panel

HDD

USB port

1 * SATA   HDD Port

HDD Port

Each interface supports a hard   disk with the maximum capacity of 8TB

POE

Max Capacity

8* independent 10/100 Mbps   Ethernet power supply interfaces

Port

IEEE802.3af

Phone Monitoring

Support   iPhone, Android system smart phone

Power Supply

52V 2.3A

Power Consumption

POE consumption≤80W

NVR Main   board function≤8W(without HDD

Working Temperature

-10~+55

Working Humidity

10-90

Dimension

Equipment : 260*220*43mm   , Packing :  355*255*88.5mm

Weight (Without HDD)

N.W. : 0.95Kg   ; With packing : 1.3Kg

External Carton Package

10 pcs/carton.462*365*530mm   ;  Weight : 14 Kg

Installation Method

Desktop   installation
