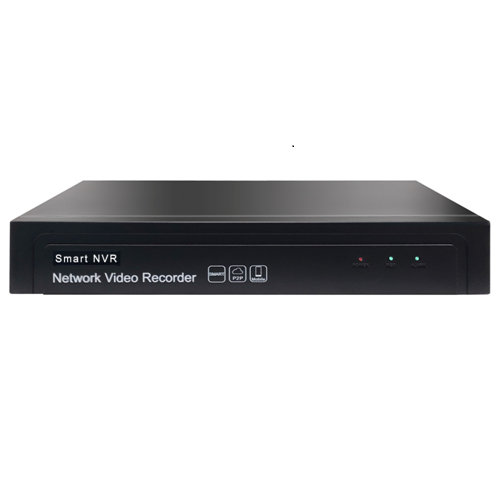

H.265 9CH 1080P NVR with 4CH POE
Features:
H.265 / H.264 Encoding.
Support ONVIF protocol, Highprofile S, Highprofile G.
Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing,Sound Detection, Fire Detection, Video Diagnostic Detection.
P2P Cloud Services.
Playback and Preview Simultaneously.
Self-adaptive stream for preview and playback, Max. 720P for 4CH, Max. 1080P for Single Channel.
CMS or VMS Provided.
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-NVR50912MP4 | ||
Operating System | Embedded LINUX operating system | ||
Video Standard | H.265/H.264 | ||
Intelligent | with Smart IPC | Target Count, Object Left /Lost, Area Detection, Line Crossing | |
Image Coding Control | Image code quality adjustable, variable stream and limited stream selectable | ||
Double Bit Stream | Each channel can be set | ||
Video Standard | 1080P(1920*1080)30FPS/960P/(1280*960)/720P(1280*720)30FPS | ||
Monitoring Image Quality | 1080P(1920*1080) / 960P/(1280*960)/720P(1280*720) | ||
Image Motion Detection | Multiple detection areas can be detected per screen and set 6-level sensitivity (IPC required) | ||
Playback Resolution | Support for adaptive bit stream playback: 4 screen 1280*720, single screen 1920*1080 | ||
Region Cover | Every channel can set 4 cover regions (IPC required) | ||
Recording Mode | Support manual, automatic, dynamic monitoring, alarm triggering video mode (part IPC support). | ||
Backup Way | Support hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup. | ||
Operation Way | Mouse | ||
Local Login | Username and password | ||
Video Storage | Local hard disk, network | ||
External Ports | Network Video | 4ch 2.0MP H.265/H.264 IP camera | |
Video Input | 1chVGA+1ch HDMI | ||
Video Output | 1 * RJ45,10M/100M adaptive Ethernet port | ||
Network Port | 2 * USB 2.0 Port（back panel） | ||
HDD | USB port | 1 * SATA HDD Port | |
HDD Port | Each interface supports a hard disk with the maximum capacity of 8TB | ||
POE | Max Capacity | 4 independent 10/100 Mbps Ethernet power supply interfaces | |
Port | IEEE802.3af | ||
Phone Monitoring | Support iPhone, Android system smart phone | ||
Power Supply | 52V1.5A | ||
Power Consumption | POE consumption≤40W, NVR Main board function≤8W (without HDD) | ||
Working Temperature | -10℃～＋55℃ | ||
Working Humidity | 10％-90％ | ||
Dimension | Device: 260*220*43mm | ||
Weight (Without HDD) | Net weight: 1.75Kg | ||
Installation Method | Desktop installation | ||
