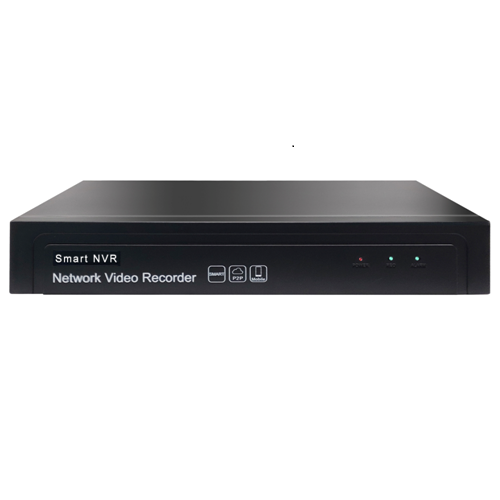

H.265 9CH 1080P NVR with 8CH POE
Features:
H.265 / H.264 Encoding.
Support ONVIF protocol, Highprofile S, Highprofile G.
Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.
P2P Cloud Services.
Playback and Preview Simultaneously.
Self-adaptive stream for preview and playback, Max. D1 for 8CH, Max. 720P for 4CH, Max. 1080P for Single Channel.
CMS or VMS Provided.
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-NVR50912MP8 | ||
Operating System | Embedded LINUX operating system | ||
Video Standard | H.265/H.264 | ||
Intelligent | with Smart IPC | Target Count, Object Left /Lost, Area Detection, Line Crossing | |
Image Coding Control | Image code quality adjustable, variable stream and limited stream selectable | ||
Double Bit Stream | Each channel can be set | ||
Video Standard | 1080P(1920*1080)30FPS/960P/(1280*960)/720P(1280*720)30FPS | ||
Monitoring Image Quality | 1080P(1920*1080) / 960P/(1280*960)/720P(1280*720) | ||
Dynamic Detection Of Image | Each screen can detect multiple areas, and 6 level sensitivity can be set up (IPC support). | ||
Image Playback Quality | Supporting adaptive bit stream playback: 8 screen D1, 4 screen 720p, single screen 1080p | ||
Area Occlusion Setting | Each block supports 4 block blocks (with IPC support). | ||
Videotape | Support manual, automatic, dynamic monitoring, alarm triggering video mode (part IPC support). | ||
Backup Mode | Support hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup. | ||
Operation Mode | Mouse | ||
Local Login | Username and password | ||
Video Preservation | Local hard disk, network | ||
External Ports | Network Video | 8ch 2.0MP H.265/H.264 IP camera | |
Video Input | 1chVGA+1ch HDMI | ||
Video Output | 1 * RJ45,10M/100M adaptive Ethernet port | ||
Network Port | 2 * USB 2.0 Port（back panel） | ||
HDD | USB port | 1 * SATA HDD Port | |
HDD Port | Each interface supports a hard disk with the maximum capacity of 8TB | ||
POE | Max Capacity | 8* independent 10/100 Mbps Ethernet power supply interfaces | |
Port | IEEE802.3af | ||
Phone Monitoring | Support iPhone, Android system smart phone | ||
Power Supply | 52V 2.3A | ||
Power Consumption | POE consumption≤80W, NVR Main board function≤8W (without HDD) | ||
Working Temperature | -10℃～＋55℃ | ||
Working Humidity | 10％-90％ | ||
Dimension | Device : 260*220*43mm | ||
Weight (Without HDD) | Net weight : 1.75Kg | ||
Installation Method | Desktop installation | ||
