1080P 2.0mp IP Camera Module-IP Module

—————— Products Center ——————

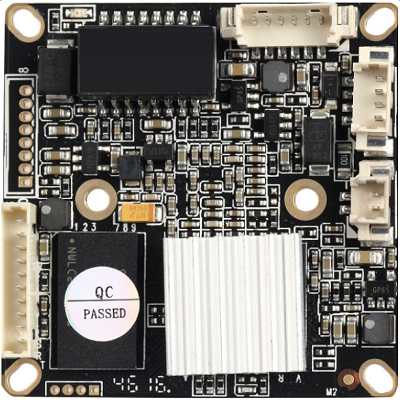

1080P 2.0mp IP Camera Module

Features:

· Support network disconnection, motion detection, video occlusion intelligence,

intelligent out-of-focus detection alarm;

· Intelligent coding, supporting up to 4 ROI regions of interest to enhance the code stream;

· Support rich network protocols;

· Adopt 1/2.9" Progressive Scan CMOS, support 2 million pixels (1920x1080) @30fps, smooth image;

· Support H.265+/H.265/H.264/MJPEG video compression algorithm, support multi-level

video quality configuration, coding complexity setting;

· Built-in automatic day and night type dual filter switching mechanism, with manual or automatic

color-to-black switching modes;

· Support 3D digital noise reduction function;

· Support Onvif agreement, national standard GBT28181

· Support iPhone, iPad, Android platform, support a variety of cloud technologies,

and achieve transparent transmission of P2P networks;

· 4X optical zoom, faster focusing and clear zoom process;

Enquiry

Specifications Send Inquiry Related Products

Specifications:

Model			TT-X2M
Camera

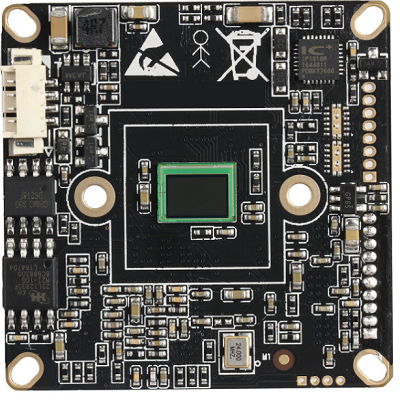

Sensor			1/2.9" Progressive Scan CMOS IMX323
DSP			Hi3516CV200
Electronic shutter			1/25s~1/10000s
Minimum illumination			Color 0.1Lux @F1.2 B/W: 0.01Lux @F1.2
Signal to noise ratio			≥50dB(AGC OFF)
Day and night conversion mode			Photosensitive detection / video detection / time detection
Wide dynamic range			≥80dB
Noise Reduction			3D digital noise reduction
Compress Standard
Video compression standard			H.265+/H.265/H.264/MJPEG
H.265 encoding type			Main Profile
Video bit rate			32 Kbps~16Mbps
Audio compression format			G.711a/ G.711u/G.726
Image Setup			Adjustable brightness, contrast, saturation, sharpness, white balance; AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure control), AIC (automatic aperture correction); support privacy zone occlusion; OSD overlay; Image rotation: normal 90 ° / 270 ° automatic, manual or automatic color to black and other switching methods
Maximum image size			1920×1080
Video resolution	Main stream		1080P(1920×1080)/1280×720
	Sub stream		D1(704×576)/VGA(640×480)/640×352/QVGA(320×240)
Video frame rate			50Hz: 50fps (1920×1080,1280×720) 60Hz: 60fps (1920×1080,1280×720)
Character overlay			Support
Smart Functions
Smart coding			Support low code rate, low latency, ROI region of interest enhanced encoding, support 4 ROI regions
Smart detection			Support intelligent occlusion detection, intelligent out-of-focus detection
Smart control			Support intelligent control alarm on, alarm off, fault clearing, intelligent noise reduction
Network features
Network protocol		IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standard		Support the latest ONVIF / national standard GB28181 / SDK
Number of supported users		Support up to 8 simultaneous users to log in
Support mobile phone monitoring		Support iPhone, iPad, Android platform

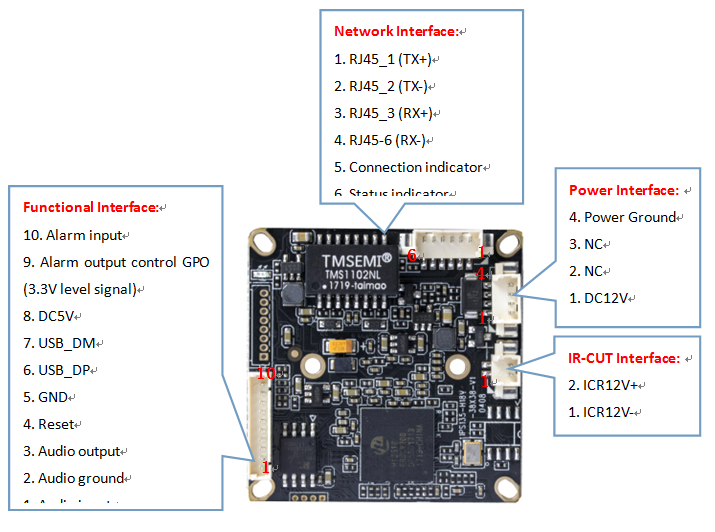

Auxiliary interface
Network Interface		10M/100M adaptive Ethernet port
audio port		1 channel audio input (MIC IN/Line IN); 1 channel audio output interface
Video output		1 channel CVBS composite video output (BNC interface, 1.1Vp-p±10%, RL=75Ω);
USB interface		1 USB interface, support TF card storage expansion (up to 128G)
Alarm interface		1 way low level alarm signal input, Vin<=0.3V; 1 way switch quantity alarm signal output, maximum support DC24V 1A or AC110V 500mA
General purpose interface		1 reset button for one-button recovery
General parameters
powered by		DC 12V
Power consumption		3W(MAX)
size		38 (long) * 38 (wide) * 10 (high) mm (without lens)
IR-CUT pitch		20mm
weight		0.06kg
