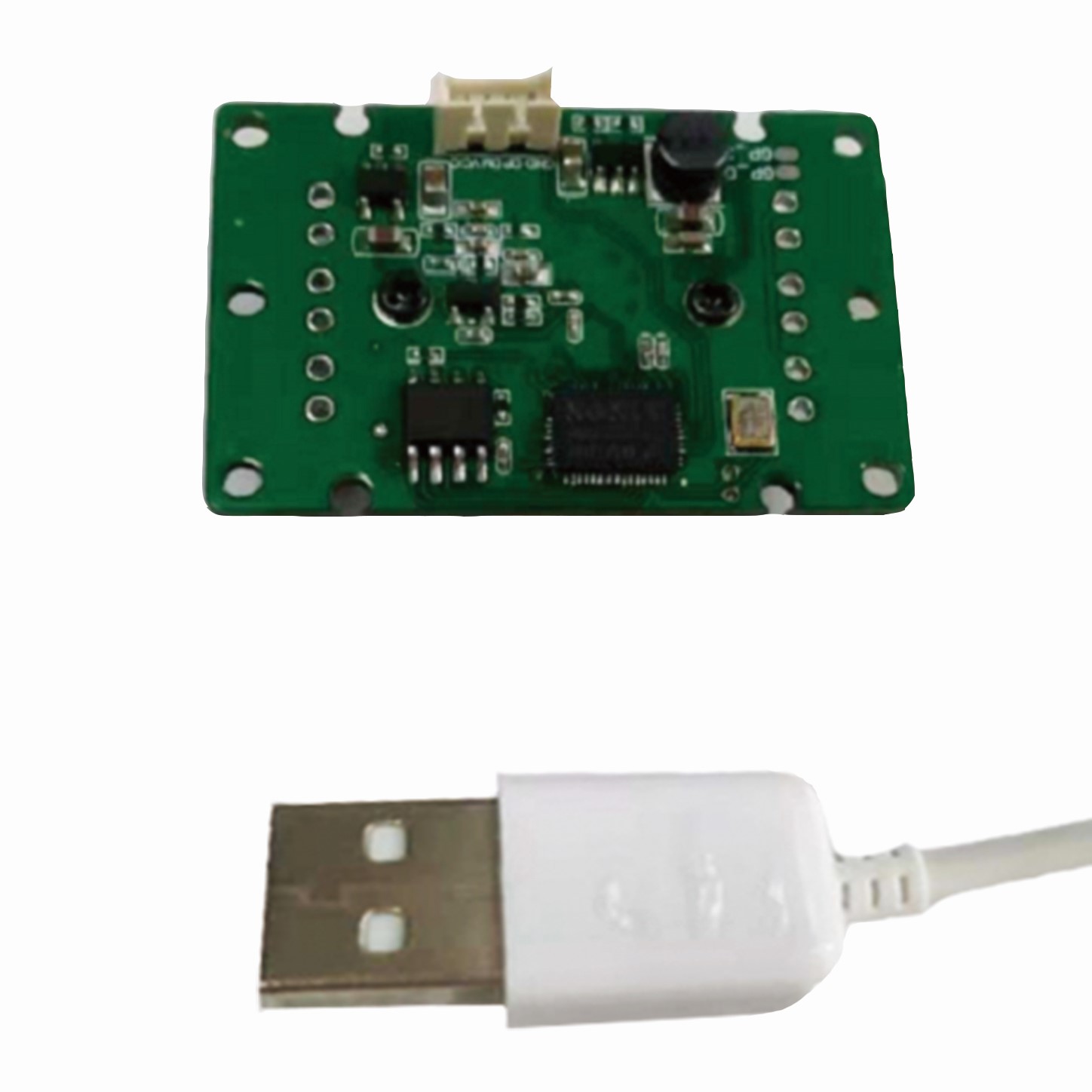

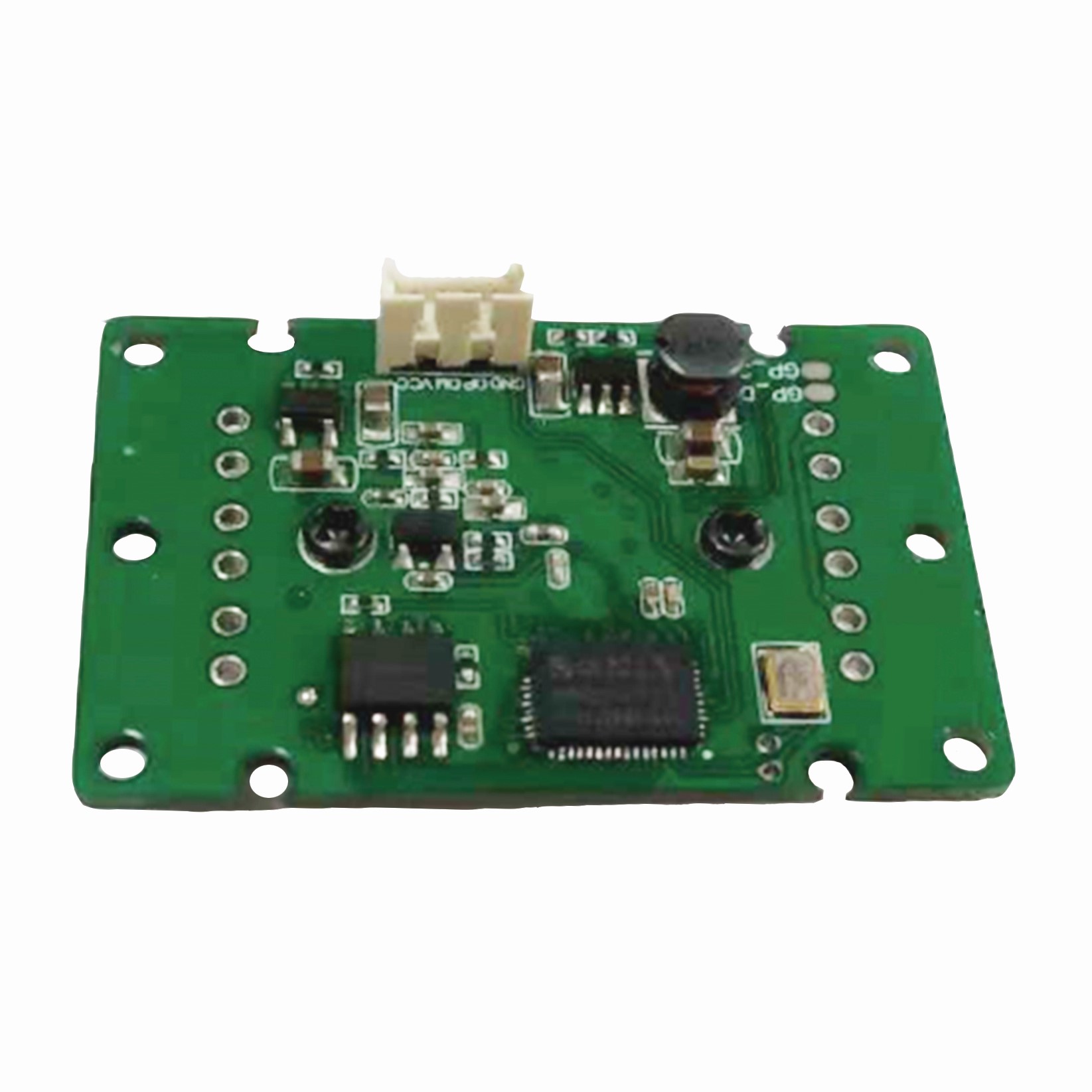

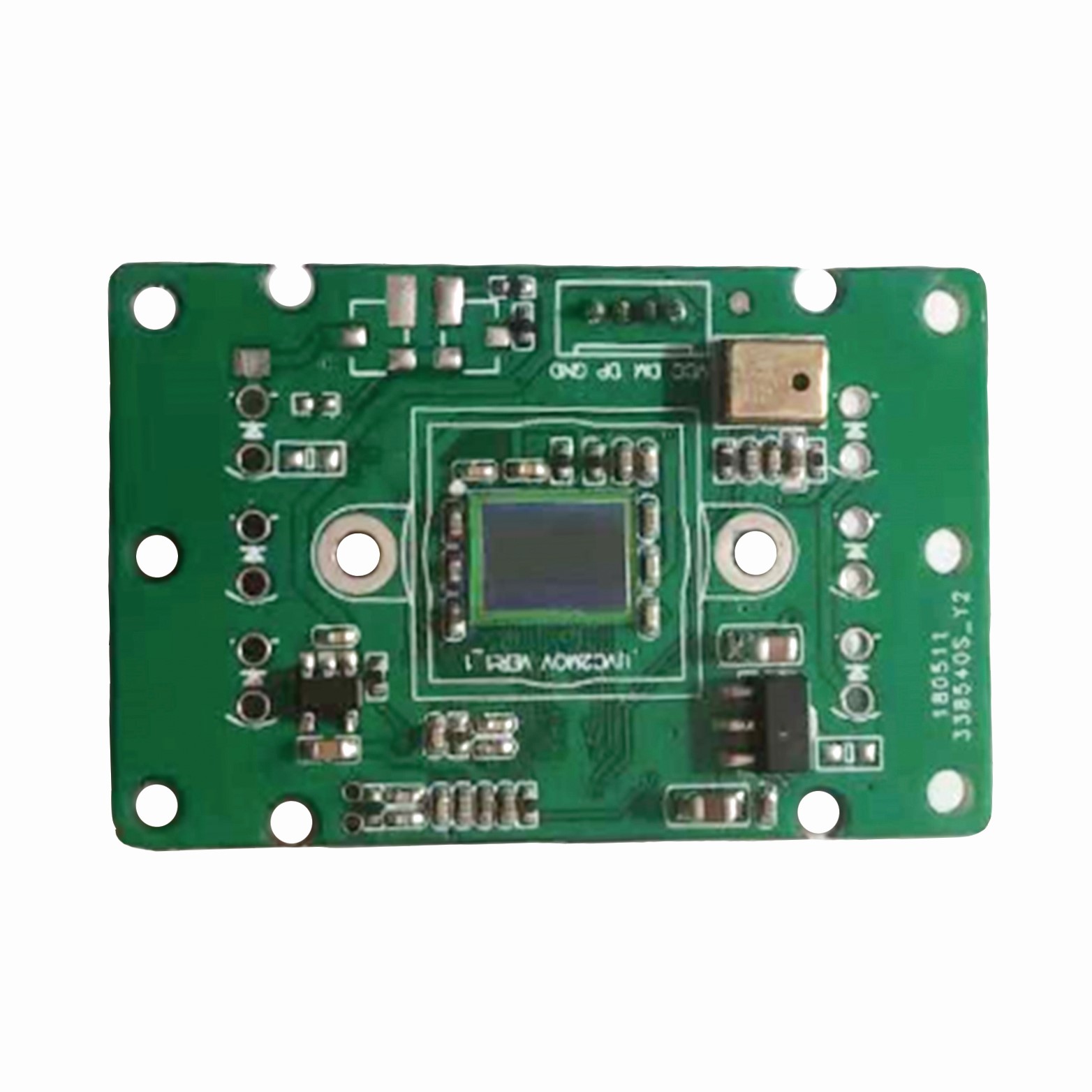

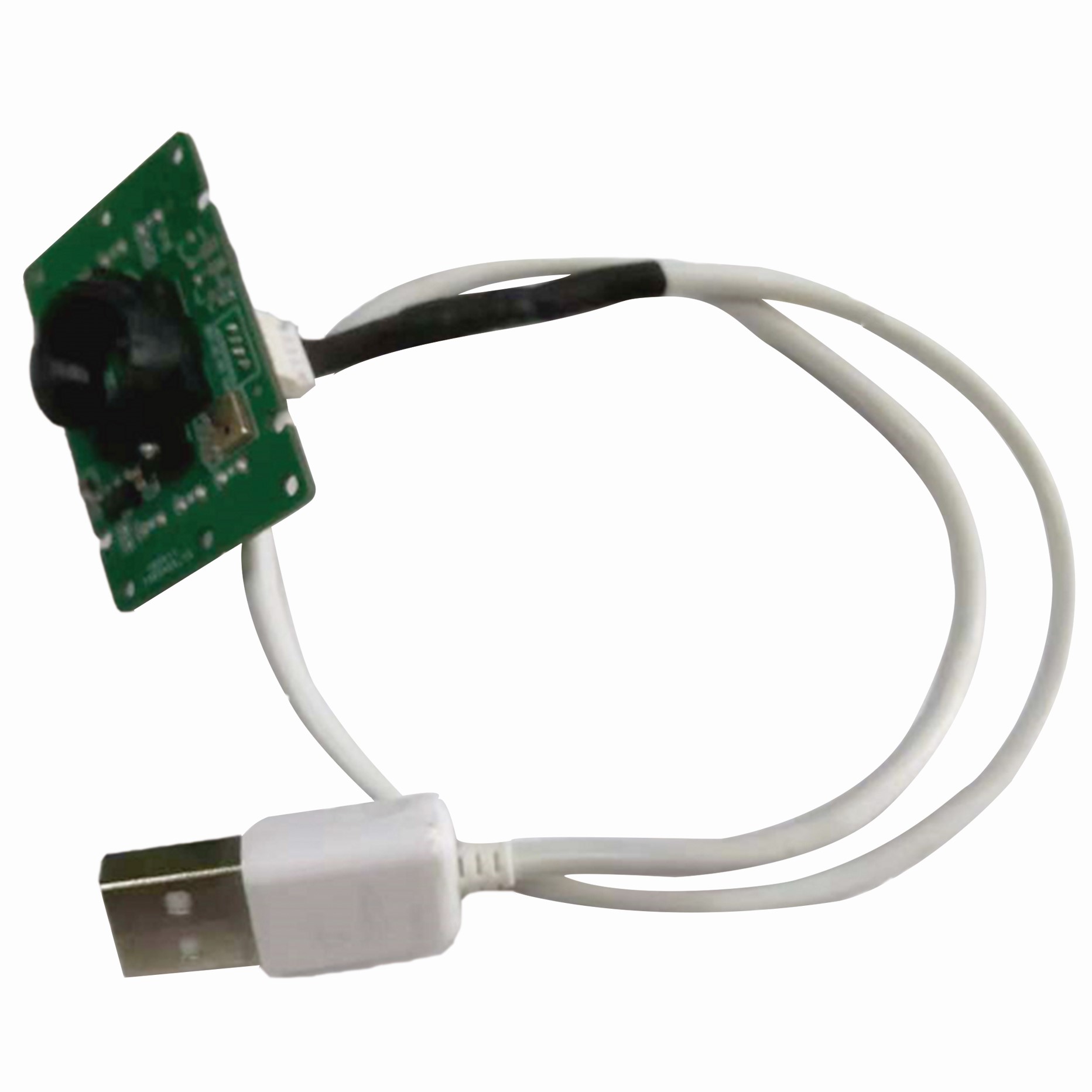

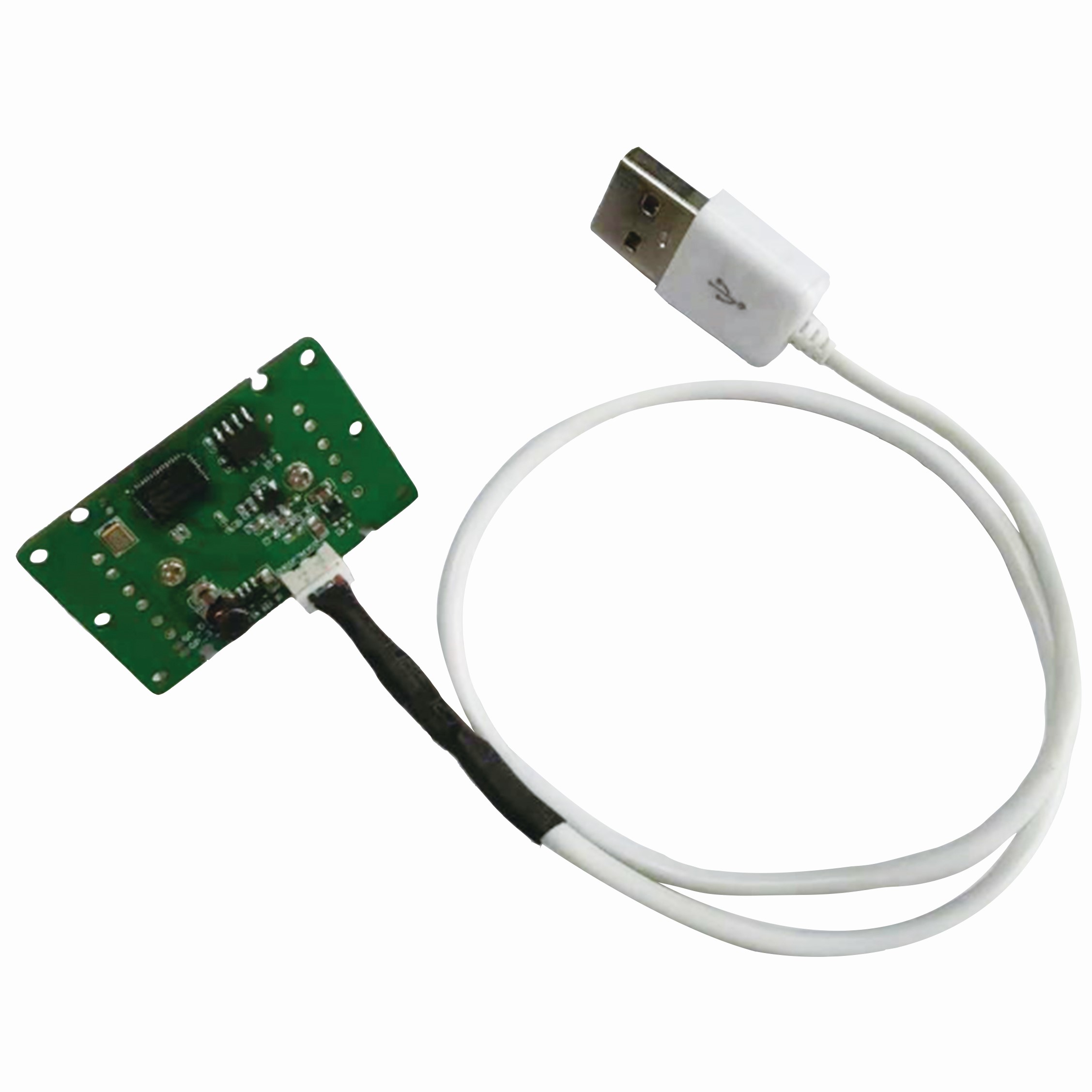

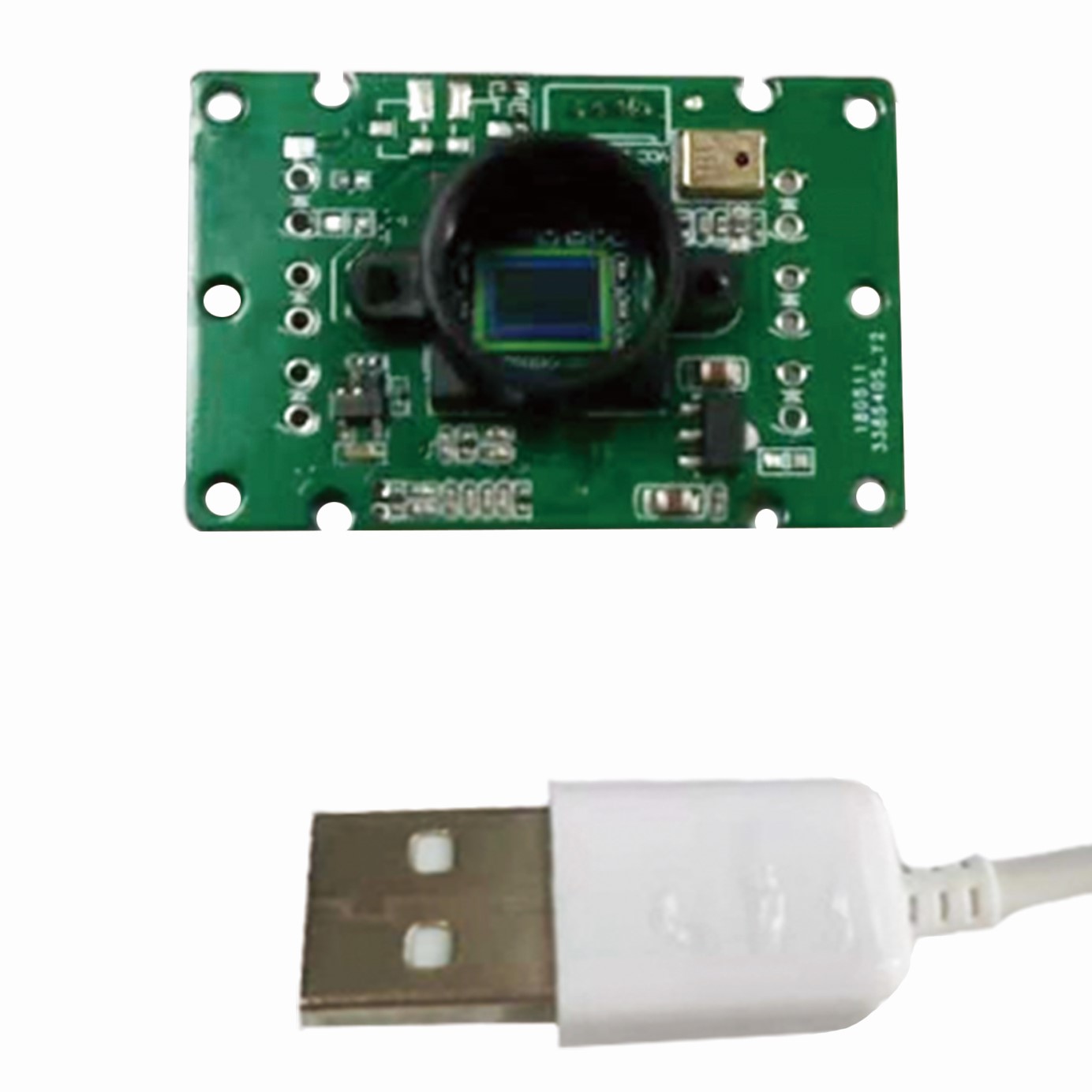

USB Camera Module

USB Camera Module

Features:

l  Color 1/2.7 OV Sensor

l  2.0mp 1080P

l  6mm, 3.6mm, 2.8mm, 1.6mm Optional

l  H.264 and MJPEG compression format output.

l  Frame rate 30fps

l  4pin Cable with USB Connector

l  Compatible with Standard UVC Driver

l  Suitable for further development with embedded systems.

l  Suitable for video surveillance and any image processing Device

l  For Medical Equipment, Telescope, ATM Machine, Industrial Equipment, Kiosk and so on.


USB Camera Module, OEM USB Camera Board, ODM USB Camera, OEM Factory, Customized USB Camera 2.0, Mini USB Camera, 5.0mp, 2.0mp USB Camera HD Resolution, Audio USB Camera


Enquiry

Specifications Send Inquiry Related Products

Specification:


Model

TT-UVC2M97

Sensor

1/2.7” OV Sensor

Effective Pixels

1920(H)*1080(V)

Image format

H.264 and MJPEG

Resolution and frame rate

1920*1080  MJPEG@30fps

S/N

50dB

WDR

80dB

Minimum illumination

0. 1lux

Shutter

Electronic rolling shutter / Frame exposure

Interface

USB 1.1 and USB 2.0 High Speed

Drive Protocol

USB Video Class (UVC)

AEC

Support

AWB

Support

AGC

Support

Audio

Support

Adjustable Parameters

Brightness, Contrast, Color, Saturation, Hue, Sharpness
Gamma, White Balance, Backlight, Contrast, Exposure, Screen Flip

Lens

6mm/3.6mm/2.8mm/1.6mm/AF lens

Systems Support

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

Power Output

DC 5V

Working Current

200mA~250mA

Operating Temperature

 -1055

Storage Temperature

-2060

Board Size

40*24mm

Weight

80g
