Star Light 60pfs 2.0mp IP Module-IP Module

—————— Products Center ——————

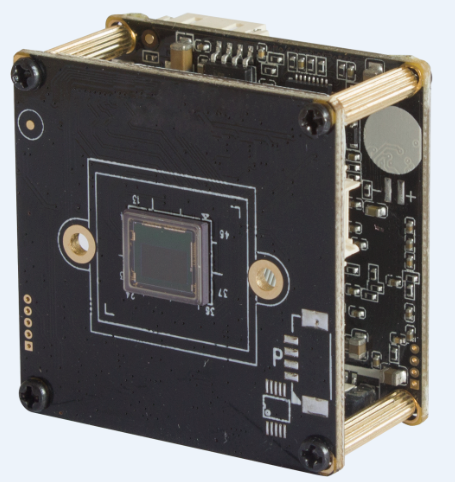

Star Light 60pfs 2.0mp IP Module

Features:

Star light IP Bullet camera
2.0mp 60fps Sony star light sensor
H.265+ /H.265 / H.264 / MJPEG video compression
Onvif Protocol and p2p
Built-in automatic day/ night IR Cutter Filter.
3D digital noise reduction;
Intelligent detection of 5 abnormal detection, 3 behavior analysis
Up to 4 ROI regions
One-button control alarm switch and fault clearing
Support broken network retransmission and network off alarm function;
Multi-level video quality configuration, encoding complexity settings;
Support iPhone, iPad, Android platform, support a variety of cloud technologies

Specifications Send Inquiry Related Products

Specification

Model		TT-X2M6ST
Camera
Sensor type		1/2.8" Progressive Scan CMOS
Hi-silicon chip		Hi3516A
Electronic shutter		1/25s~1/10000s
Minimum illumination		Color: 0.005Lux @(F1.2, AGC ON)
		Black and white: 0.007Lux @(F1.4, AGC ON)
Signal to noise ratio		≥50dB (AGC OFF)
Day and night conversion mode		Photosensitive detection / video detection / time detection
Wide dynamic range		≥80dB
Noise reduction		3D digital noise reduction
Compression Standard
Video compression standard		H.265+/H.265/H.264/MJPEG
H.265 encoding type		Main Profile
Video bit rate		32 Kbps~16Mbps
Audio compression format		G.711a/ G.711u/G.726
Image Setup		Adjustable brightness, contrast, saturation, sharpness, white balance; AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure control), AIC (automatic aperture correction); support privacy zone occlusion; OSD overlay; Image rotation: normal 90 ° / 270 ° automatic, manual or automatic color to black and other switching methods
Maximum image size		1920×1080
Video resolution	Main-Stream	1080P(1920×1080)/1280×720
	Sub-stream	D1(704×576)/VGA(640×480)/640×352/QVGA(320×240)
Video Frame Rate		50Hz: 50fps (1920×1080,1280×720)
		60Hz: 60fps (1920×1080,1280×720)
Character overlay		Support
Smart Functions
Smart Coding		Support low code rate, low latency, ROI region of interest enhanced encoding, support 4 ROI regions
Smart Detection		Supports occlusion detection, out-of-focus detection, brightness detection, color detection, sound detection, legacy detection, motion detection, virtual cordon, area intrusion
Smart Control		Support intelligent control alarm on, alarm off, fault clear, intelligent noise reduction
Network Functions
Network protocol		IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standard		Support the latest ONVIF / national standard GB28181 / SDK
Number of supported users		Support up to 8 simultaneous users to log in
Support mobile phone monitoring		Support iPhone, iPad, Android platform

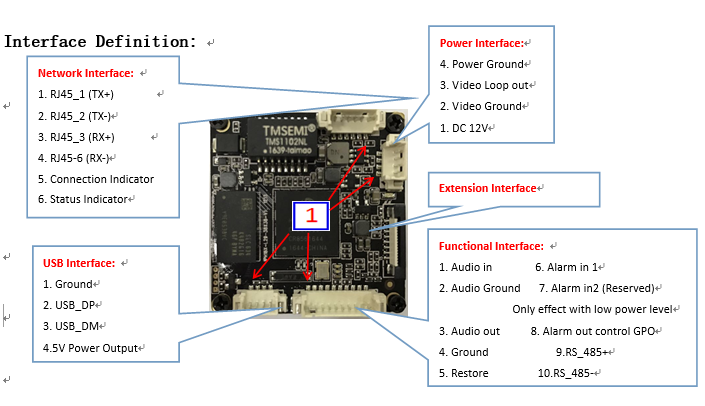

Auxiliary interface
Network Interface		10M/100M Adaptive Ethernet port
Audio Interface		1 channel audio input (MIC IN/Line IN); 1 channel audio output interface
Video output		1 channel CVBS composite video output (BNC interface, 1.1Vp-p±10%, RL=75Ω);
USB interface		1 USB interface, support TF card storage expansion (up to 128G)
Alarm interface		1 way low level alarm signal input, Vin<=0.3V; 1 way switch quantity alarm signal output, maximum support DC24V 1A or AC110V 500mA
General Interface		1 reset button for one-button recovery
General Parameters
powered by		DC 12V
Power consumption		3W(MAX)
size		38(Long) * 38 (W) * 10 (H) mm (without lens)
IR-CUT pitch		22mm
weight		0.08kg
