2.0mp USB Video Camera Module

2.0mp USB Video Camera Module

Features:

l  Color 1/2.7 Sensor

2.0mp 1080P

6mm/ 3.6mm/ 2.8mm/1.6mm Lens Optional

940nm or 850nm IR Cutter Filter Optional

MJPEG compression format output.

VGA out with 30fps/60fps/120fps optional

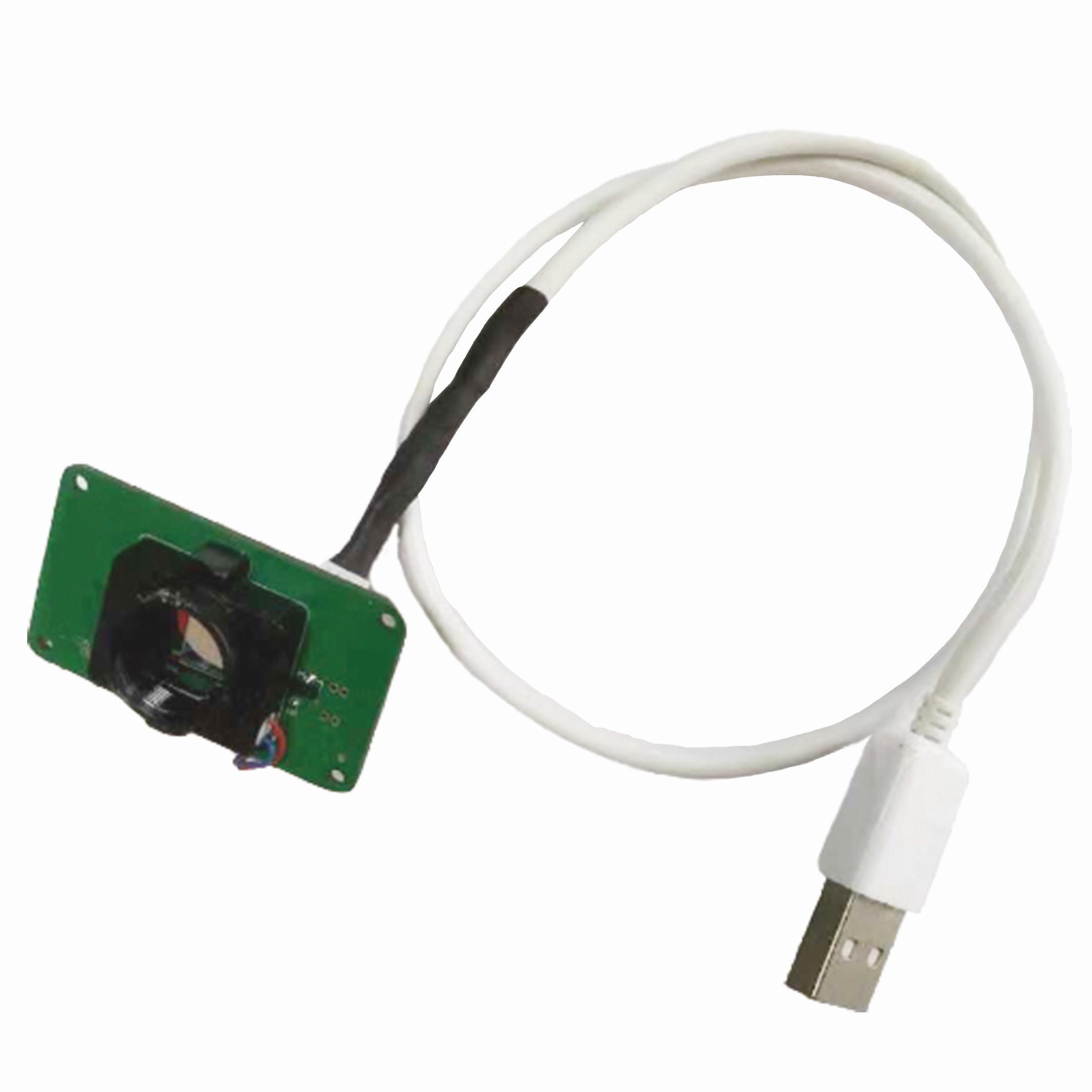

4pin Cable with USB Connector

Compatible with Standard UVC Driver

Suitable for further development with embedded systems.

Suitable for video surveillance and any image processing Device

For Medical Equipment, Telescope, ATM Machine, Industrial Equipment, Kiosk and so on.


Enquiry

Specifications Send Inquiry Related Products

Specification:


Model

TT-UVC2M27

Sensor

1/2.7” OV2710

Effective Pixels

1920(H)*1080(V)

Image format

MJPEG

Resolution and frame rate

1920*1080  MJPEG@30fps

1280*720     MJPEG@60fps

640X480    MJPEG@120fps

S/N

50dB

WDR

80dB

Minimum illumination

0. 1lux

Shutter

Electronic rolling shutter / Frame exposure

Interface

USB1.1 and USB2.0 High Speed

Drive Protocol

USB Video Class (UVC)

AEC

Support

AWB

Support

AGC

Support

Adjustable Parameters

Brightness, Contrast, Color, Saturation, Hue,   Sharpness
Gamma, White Balance, Backlight, Contrast, Exposure, Screen Flip

Lens

6mm/ 3.6mm/ 2.8mm/1.6mm   Lens Optional

IR-CUT

940nm or 850nm IR cutter   Filter Optonal

Systems Support

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

Power Output

DC 5V

Working Current

100mA~160mA

Operating Temperature

 -1070

Storage Temperature

-2085

Board Size

40*24mm

Weight

80g
