16 Port Gigabit POE Switch-PoE Switch

—————— Products Center ——————

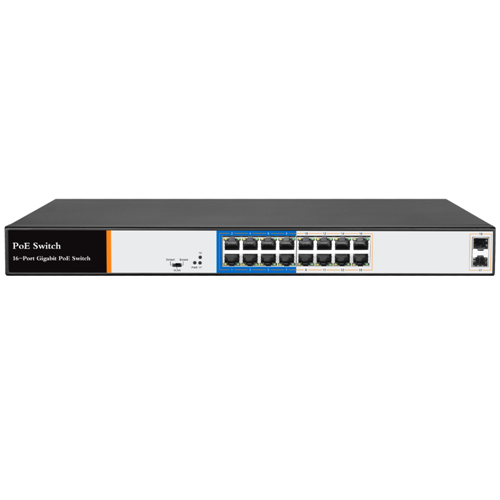

16 Port Gigabit POE Switch

Features:

Ø Support IEEE802.3af/at standard, automatically identify IEEE802.3af/at standard device and supply power

Ø Support uplink port auto MDI/MDIX;

Ø Adopt storage forwarding ;

Ø Smart powered, the lowest power dissipation, guarantee PD power requirement;

Ø With power circuit protection function, can protect back-end device safety;

Ø Zero configuration power supply can auto provide the self-adapting device;

Ø Without fan design , saving energy and protection environment; without noise, reduction the affection of environment;

Ø Compact, delicate designed

Ø Support port without link saving power function;

Ø All of port has link speed forwarding ability

Ø Plug and play, no need configuration, easy to use.

Specifications Send Inquiry Related Products

Specification:

Standard	IEEE 802.3i IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Port	16 10/100/1000Mbps RJ45 port
Port	2 gigabit SFP port
PoE	16 10/100/1000Mbps RJ45 PoE port
PoE	Total power budget: 180W
Indicator	18 Link/Act indicator light
	16 POE indicator light
	1 Power indicator light
Performance	forwarding mode: storage forwarding
Performance	Bankplane bandwidth: 36Gbps
Input Power	100-240V/50-60Hz
Dimensions（LWH）	44818044mm
