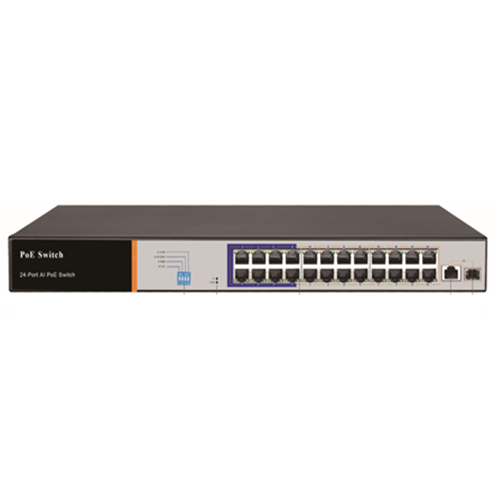

24+2 Port PoE Switch 100Mbps +1000Mbps

24+2 Port PoE Switch 100Mbps +1000Mbps


Port 1-Port 8 support 250m long distance supply power (suggestion using Cat.5 or above network cable)

Support One key VLAN, port1-port24 mutual isolation, can effect suppress network storm, promotion network performance

Support IEEE802.3af/at standard, automatically identify  IEEE802.3af/at standard device and supply power

Support uplink port auto MDI/MDIX;

Adopt  storage forwarding ;

Smart powered, the lowest power dissipation, guarantee PD power requirement;

With power circuit protection function, can protect back-end device safety;

Zero configuration power supply can auto provide the self-adapting device;

Without fan design , saving energy and protection environment;  without noise, reduction the affection of environment

Compact, delicate designed

Support port without link saving power function;

All of port has link speed forwarding ability

Plug and play, no need configuration, easy to use.


Specifications Send Inquiry Related Products



IEEE 802.3i IEEE   802.3u IEEE 802.3x
  IEEE 802.3ab   IEEE 802.3af  IEEE 802.3at


25 10/100Mbps RJ45   port

1 10/100/1000Mbps   RJ45 port

1 gigabit SFP port


24 10/100Mbps RJ45   PoE port

Total power budget: 250W

Single port max. 30W


26 Link/Act  indicator light

25 POE indicator light

1 Power indicator light


forwarding mode: storage forwarding

Bankplane bandwidth: 6.8Gbps

Packet forwarding rate: 5.059Mpps

Support 16K MAC address list depth

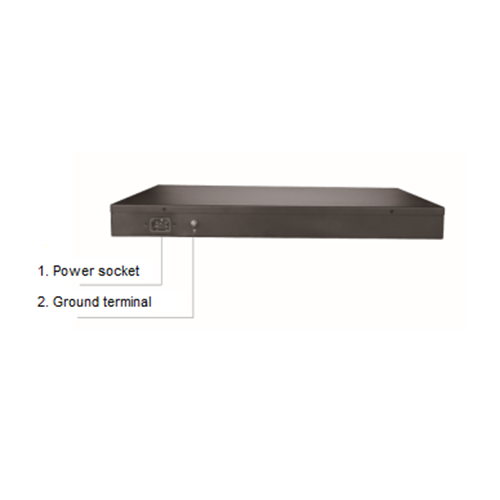

Input power

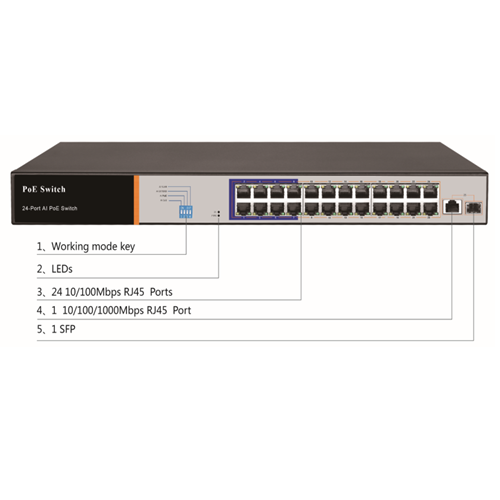

RJ45 Port

TT-POE1024 support 16 port 10/100MbpsIEEE802.3af, IEEE802.3at standard POE supply power.

When working mode is Extend mode, port1-port 8 can support 250m supply power

TT-POE1024 is with two 10/100/1000Mbps combo port, use 17, indicator light in common

SFP Port

TT-POE1024 is with one gigabit SFP portSFP1, use for gigabit SFP module.

Working mode key

AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above)

AI VLAN: Isolating ports 1-16 from each other, restrain network storms effectively and improve network performance

AI QOS: Prioritize the identified video data to make video transmission smoother

AI PoE: Automatic detection power of port, power off and restart the device if find
