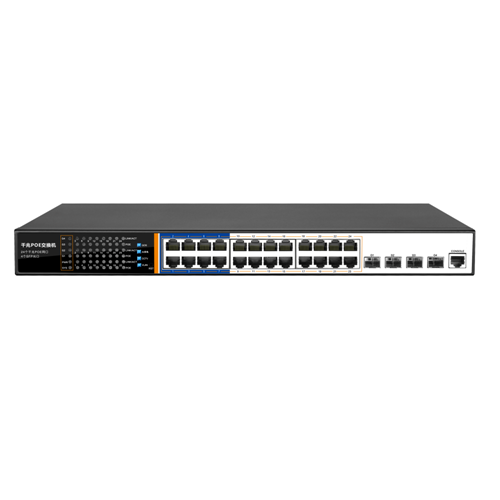

24 Gigabit Managed PoE Switch
Features:
Ø 1-8 port support 250Meters long-distance power supply (recommended cat5e or 6 network cable)
Ø Support a key VLAN, the port 1-24 isolated from each other, which can effectively inhibit network storms, improve network performance

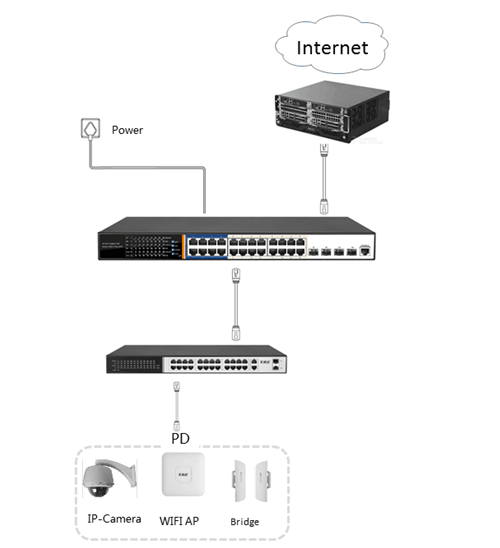

Ø Supports IEEE 802.3af / at standard, automatically detects and identifies devices that comply with the IEEE 802.3af / at standard and supply power to it
Ø Support Auto MDI/MDIX；
Ø Adopt store-and-forward exchange method
Ø intelligent power supply, the lowest power consumption, ensure PD power needs
Ø With power circuit protection, protect the safety of PD
Ø No configuration characteristics of the power supply is automatically supplied to the adaptive equipment;
Ø Fan-less design, energy saving and environmental protection; no noise, reduce the impact on the environment
Ø Small, exquisite design
Ø Support port without link power saving function
Ø All ports have wire-speed forwarding capability
Ø Plug and play ,easy to use
Specifications Send Inquiry Related Products
Specifications:
Network standard | IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet IEEE 802.3z:1000BASE-X gigabit Ethernet（fiber） IEEE 802.3ae:10GBASE-SR/LR 10G Ethernet（fiber） IEEE 802.3ad: comply link aggregation standard IEEE 802.3x: flow control IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering) IEEE 802.1q:VLAN Bridge operation IEEE 802.1d:STP spanning tree IEEE 802.1s:MSTP spanning tree IEEE 802.1w:RSTP spanning tree IEEE 802.3af IEEE 802.3at |

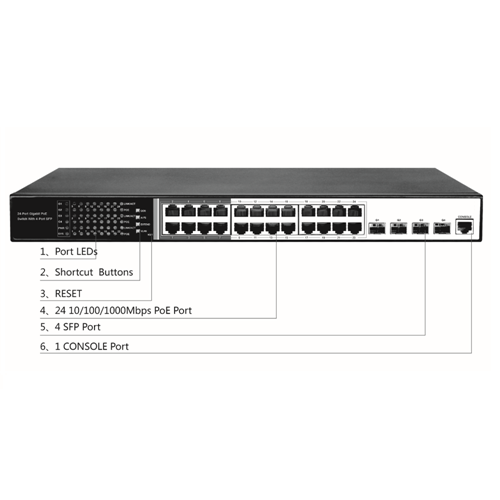

Port | 24 10/100/1000Mbps RJ45 port |
4 gigabit SFP fiber port | |
1 Console port | |
PoE | 24 10/100/1000Mbps RJ45 port support PoE |
Max 400W | |
Single port max 30W | |
LEDs | 28 Link/Act LEDs |
24 POE LEDs | |
1 Power LEDs | |
Performance | Forwarding mode: store and forward |
Switch Volume (Full-duplex) ：56Gbps | |
Packet forwarding rate：41.664Mpps | |
8K MAC address table | |

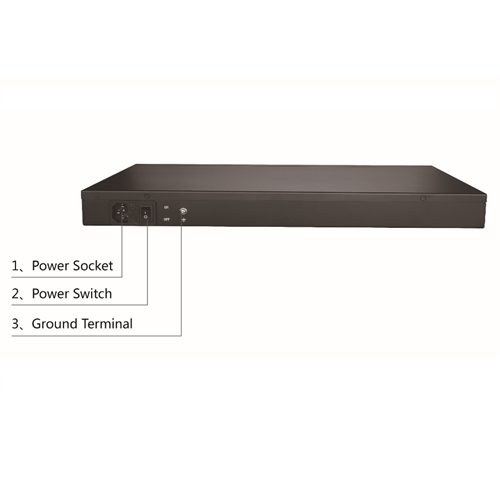

Input | 100-240V/50-60Hz |
Dimension （L*W*H） | 440*320*44mm |
Software Specifications:
Shortcut Function | One key VLAN |
One key CCTV(1-8 port 250meters PoE distance) | |
One key Q0S (Video priority) | |
One key AI power supply | |
Routing | Support RIP V1/V2 dynamic routing |
Support static routing | |
DHCP | Support DHCP server |
Support DHCP reply | |
Support DHCP Snooping | |
VLAN | Support 4K VLAN |
Support 802.1Q VLAN , Port VLAN , Voice VLAN | |
PoE | Support setting the PoE port priority |
Support setting PoE power supply period | |
Support setting port power | |
MAC Address Table | Comply the IEEE 802.1d standard |
Support MAC address learning and aging automatically | |
Support static, dynamic, filter address table | |
Safety | Based on user rating management and password protection |
Support based on the port number, IP address, MAC address restrictions on user access | |
Icmp-echo, DoS protection | |
Support DHCP Snooping, DHCP attack protection | |
Support port security, port isolation | |
Access control (ACL) | Support L2(Layer 2)～L4(Layer 4) packet filtering function |
Support port mirroring, port redirection, flow rate limit, QoS re-marking | |
Multicast | Support IGMP v1/v2 Snooping |
Support static multicast | |
Support multicast VLAN | |
QoS | Support 8 port queue |
Support port priority, 802.1p priority, DSCP priority | |
Support SP, RR, WRR, WFQ Priority scheduling algorithm | |
Spanning Tree | Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol |
Support loop protection, BPDU protection | |
Management and maintenance | Support WEB management（HTTP） |
Support CLI（Telnet, local serial port） | |
Support SNMP V1/V2/V3，Compatible with public MIBS | |
Support LLDP, RMON | |
Support IP Source protection, DoS protection | |
Support CPU monitor, memory monitoring | |
Support system log | |
Support cable testing | |
Multicast | Support IGMP v1/v2 Snooping |
Support static multicast | |
Support Multicast VLAN |
