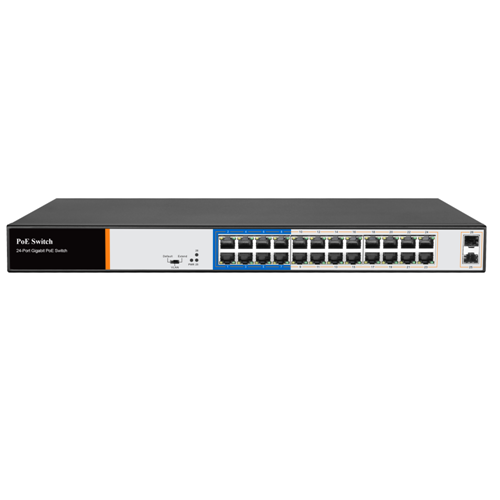

24 Port Gigabit POE Switch
Features:
Supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard and supply power to it
Support Auto MDI/MDIX；
Adopt store-and-forward exchange method
intelligent power supply, the lowest power consumption, ensure PD power needs
With power circuit protection, protect the safety of PD
No configuration characteristics of the power supply is automatically supplied to the adaptive equipment;
Fan-less design, energy saving and environmental protection; no noise, reduce the impact on the environment
Small, exquisite design
Support port without link power saving function
All ports have wire-speed forwarding capability
Plug and play ,easy to use
Specifications Send Inquiry Related Products
Specifications :

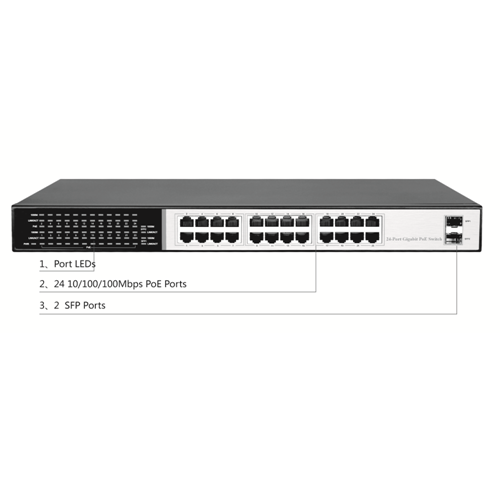

Network Port | 10/100/1000Mbps PoE RJ45 port (port 1～port24 ） |
2 Gigabit SFP port (25 port-26 port ) | |
Transfer Pattern | Full wired-speed store-and-forward |
Performance | bandwidth：52Gbps (non-blocking ) |
network delay ( 100 to 1000M bps ): maximum 20 μs (using 64 byte packet ) | |
network delay (1000 to 1000M bps ): maximum 10 μs (using 64 byte packet ) | |
MAC address capacity : 8K | |
Frames filter and transfer rate : | |
10M : 14,880pps/port | |
100M : 148809pps/port | |
1000M : 1488095pps/port | |
Network Protocol & Standard | IEEE 802.3ad,LACP |
IEEE 802.3u,Fast Ethernet | |
IEEE 802.3ab,Gigabit Ethernet standard | |
IEEE 802.3x,Full-duplex Ethernet data link layers | |
IEEE 802.3af/at ,Ethernet power supply POE standard | |
IEEE 802.3az ,EEE ,Energy efficient Ethernet standard | |
IEEE 802.3z ,Gigabit Ethernet fiber-optic standards | |
POE Pin | 1/2(+),3/6(-) |
LEDs Indicator | Power, POE |
Link/ACT,1000M | |

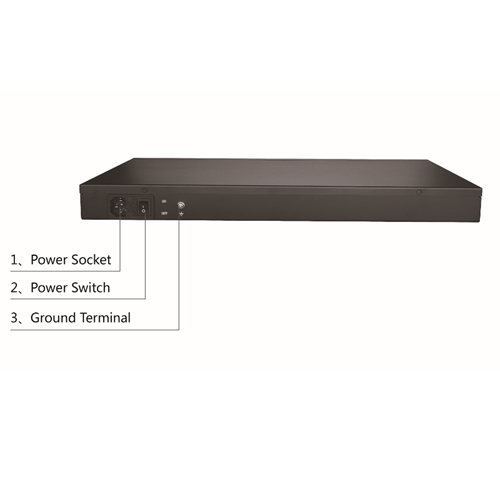

Power Supply | Total power : 250W (All PoE port , port 1～port24 ) single port max 30W |
Input power : 250W | |
Dimensions | Size ( L*W*H ) : 440* 270 * 44 mm |
Weight: 3.5kg | |
Environment | Operating Temperature : 0°~40°C ( 32°~104°F ) |
Storage Temperature : -40℃~70℃（-104°~158°F） | |
Working Humidity : 10%~90% ( Non-condensing ) | |
Storage Humidity : 5%~90% (Non-condensing) | |
EMC | CE Class B |
FCC Part 15，Class B | |
VCCI Class B | |
C-Tick | |
Certifications | CE,ROHS,FCC |
