6 Port Gagibit AI POE Switch-PoE Switch

—————— Products Center ——————

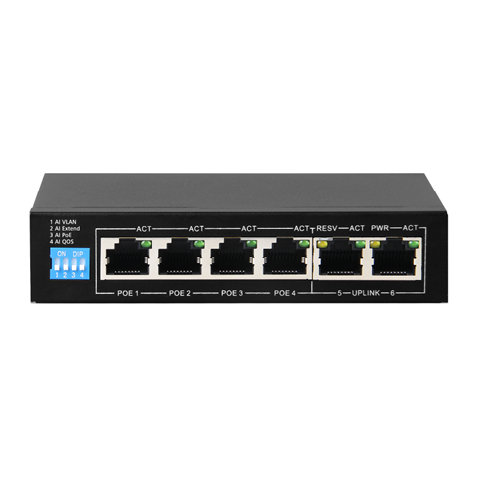

6 Port Gagibit AI POE Switch

Features:

AI Extend: 1-4 ports support 250 meters long distance power supply (should be use cat5e or cat6 cable);

AI VLAN: Isolating ports 1-4 to each other can effectively suppress network storms and improve network performance;

AI QoS: Prioritize the identified video data to make video transmission smoother;

AI POE: Automatically detect the power receiving port, find the dead device, power off and restart the device;

Support wireless access points (APs) and network surveillance cameras via Cat 5 cables;

Support IEEE802.3af/at standard PD device；

Supports uplink port auto-flip (Auto MDI/MDIX);

Adopt store-and-forward exchange mechanism;

Intelligent power supply, lowest power consumption, ensure the power demand of the PD terminal;

With power circuit protection, it can protect the security of the back-end equipment;

Zero configuration feature power is automatically supplied to the adaptive device;

No fan design to achieve energy saving and environmental protection;

Support port no link power saving function;

Specifications Send Inquiry Related Products

Specification:

Network Port	4 10/100/1000Mbps PoE RJ45 port ( Port 1~ port4）
Network Port	2 10/100/1000Mbps RJ45 port uplink(Port5~port 6)
Transfer Rate	1000Mbps full Duplex
Network Protocol & Standard	IEEE 802.3i ,IEEE 802.3u ,IEEE 802.3x ,IEEE 802.3af, IEEE 802.3at , IEEE802.3ab
Performance	Bandwidth :12Gbps (no block)）
	Frame filtering and transmission rate:
	10M port maximum 14,800pps
	100M port maximum 148,800pps
	1000M port maximum 1，488，000pps
LED indicator	Power
	RESV
	LINK/ACT
POE pin	1/2/4/5(+), 3/6/7/8(-)
Power	Max power for single port 30W
Power	External power adapter : 60W
Dimensions	Size（LWH）: 1257528mm
Dimensions	Weight : 0.5kg
Environment	Operating Temperature : 0°~40°C
Environment	Operating Humidity : 10%~ 90% ,Non-condensing
Safety Regulation	CE/ROHS/FCC
