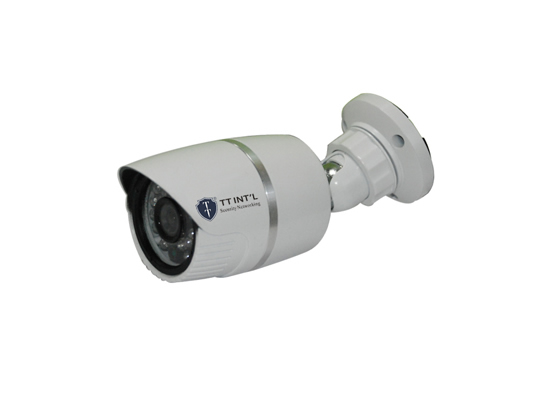

4 in 1 HD 2.0MP Plastic IR Bullet Camera
特征:
4 in 1 HD Plastic IR Bullet Camera
Color CMOS HD Sensor
AHD, TVI, CVI, CVBS Signal
Built-in IR Cutter Filter
3.6mm Megapixel Lens
24pcs Φ5 IR LEDs
OSD Menu
HBLC, HDNR, Mask Function
Indoor use
产品规格 发询盘 相关产品
Model | TT-HQ13MAHD | TT-HQ2MHD | TT-2M-HQ | TT-HQ4MHD |
Image Sensor | 1/3” 1.3MP Sensor | 1/2.7”2MP SONY Sensor | 1/2.7”2MP Sensor | 1/2.7”4MP Sensor |
Signal System | PAL/NTSC | |||
Effective Pixels | 1280 (H) * 960 (V) | 1920 (H) * 1080 (V) | 1920 (H) * 1080 (V) | 1944 (H) * 1092 (V) |
Min. Illumination | 0.01 Lux | 0.01 Lux | 0.1Lux | 0.1Lux |
Shutter Time | 1/25(1/30) s to 1/50,000 s | |||
Lens | 3.6mm HD Lens | |||
Day& Night | Auto Switch IR Cut Filter | |||
Wide Dynamic | 110 dB | 120 dB | 100 dB | 120 dB |
Video Frame Rate | 960p@25fps (PAL) 960p@30fps (NTSC) | 1080p@25fps (PAL) 1080p@30fps (NTSC) | 1080p@25fps (PAL) 1080p@30fps (NTSC) | 4MP@25fps (PAL) 4MP@30fps (NTSC) |
HD Video Output | Analog HD Signal Output (AHD, CVI, TVI, CVBS 4 in 1 Signals) | |||
Synchronization | Internal Synchronization | |||
CVBS Output | 1Vp-p CVBS Output (75Ω/BNC) | |||
S/N Ratio | More than 50 dB | More than 60 dB | More than 48 dB | More than 62 dB |
UTC | Support (Optional) | |||
Menu (Optional) | ||||
Camera ID | On / Off (15 Characters, Position Programmable) | |||
Day/Night Mode | Color / BW / EXT | |||
Auto White Balance | ATW / AWC-SET / Indoor / Outdoor / Manual | |||
Private Mask | On/Off, Maximum 4 Zones | |||
Motion Detection | On/Off, Maximum 4 Zones | |||
BLC | On/Off | |||
AGC | On/Off | |||
Language | English / Japanese / Simplified / traditional / Korean / German / French / Italia | |||
Environment Mode | Indoor, Outdoor, Indoor1, Low-Light | |||
Functions | Super WDR, HLC, 3DNR, Electronic Sensitivity, Mirror, Defogging, Positive & Negative Film, Dead Pixel Repair, Intelligent Digital Zoom | |||
General | ||||
Operating Temp. | -20 °C - 55 °C (-4 °F - 113 °F) | |||
Operating Humidity | Humidity 90% or Less (Non-condensing) | |||
Power Supply | DC 12V ±15% | |||
Power Consumption | Max. 7W | |||
IR Range | 25 Meters | |||
Net Dimension (mm) | 175 (L) x 65 (W) x 65 (H) mm | |||
Net Weight (kg) | 0.5 kg | |||
