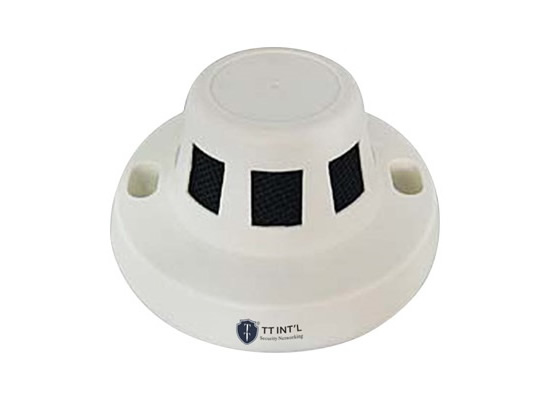

2MP 4 in 1 HD Smoke Detector Camera
特征:
4 in 1 HD Smoke Detector Camera
Color CMOS HD Sensor
AHD, TVI, CVI, CVBS Signal
Built-in IR Cutter Filter
3.6mm Megapixel Lens
HBLC, HDNR, Mask Function
Indoor Use Only
产品规格 发询盘 相关产品
Model | TT-Y13MAHD | TT-Y2MHD | TT-2M-Y | TT-Y4MHD | |
Image Sensor | 1/3” 1.3MP Sensor | 1/2.7”2MP SONY Sensor | 1/2.7”2MP Sensor | 1/2.7”4MP Sensor | |
Signal System | PAL/NTSC | ||||
Effective Pixels | 1280(H)*960 (V) | 1920(H)*1080 (V) | 1920(H)*1080(V) | 1944(H)*1092(V) | |
Min. Illumination | 0.01Lux | 0.01Lux | 0.1Lux | 0.1Lux | |
Shutter Time | 1/25(1/30) s to 1/50,000 s | ||||
Lens | 3.6mm Megapixel Lens | ||||
Day& Night | Auto Switch IR Cut Filter | ||||
Wide Dynamic | 110 dB | 120 dB | 100 dB | 120 dB | |
Video Frame Rate | 960p@25fps (PAL) 960p@30fps (NTSC) | 1080p@25fps (PAL) 1080p@30fps (NTSC) | 1080p@25fps (PAL) 1080p@30fps (NTSC) | 4MP@25fps (PAL) 4MP@30fps (NTSC) | |
HD Video Output | Analog HD Signal Output (AHD, CVI, TVI, CVBS 4 in 1 Signals) | ||||
Synchronization | Internal Synchronization | ||||
CVBS Output | 1Vp-p CVBS Output (75Ω/BNC) | ||||
S/N Ratio | More than 50 dB | More than 60 dB | More than 48 dB | More than 62 dB | |
UTC | Support (Optional) | ||||
Menu (Optional) | |||||
Camera ID | On / Off (15 Characters, Position Programmable) | ||||
Day/Night Mode | Color / BW / EXT | ||||
Auto White Balance | ATW / AWC-SET / Indoor / Outdoor / Manual | ||||
Private Mask | On/Off, Maximum 4 Zones | ||||
Motion Detection | On/Off, Maximum 4 Zones | ||||
BLC | On/Off | ||||
AGC | On/Off | ||||
Language | English / Japanese / Simplified / traditional / Korean / German / French / Italia | ||||
Environment Mode | Indoor, Outdoor, Indoor1, Low-Light | ||||
Functions | Super WDR, HLC, 3DNR, Electronic Sensitivity, Mirror, Defogging, Positive & Negative Film, Dead Pixel Repair, Intelligent Digital Zoom | ||||
General | |||||
Operating Temp. | -20 °C - 55 °C (-4 °F - 113 °F) | ||||
Operating Humidity | Humidity 90% or Less (Non-condensing) | ||||
Power Supply | DC 12V ±15% | ||||
Power Consumption | Max.2W | ||||
Net Dimension (mm) | 120mm (W)x 55mm(H) | ||||
Net Weight (kg) | 0.35kg | ||||
