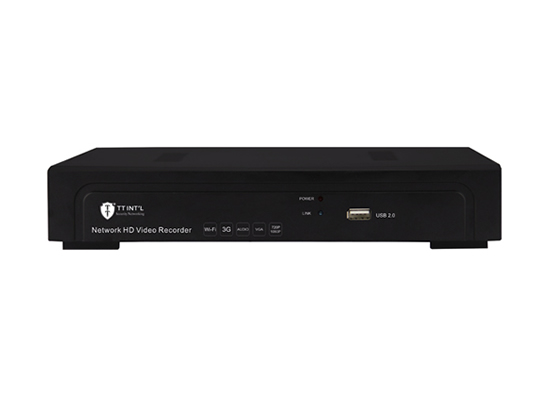

NVR081-z

H.264 PoE NVR 8-CH 1 HDD

特征:

8 Channel PoE NVR (1 HDD)

H.264 Compression

with 8 Channel PoE (DC48V 3A )

Support IE, Firefox, Chrome, Safari Main Browser

App for IOS & Android, P2P, Plug & Play

Support Onvif, SPR, Third-part IPC

Audio Input & Output: 1-CH RCA Out & Two-way Talk

Standard Port:USB *3, 1* VGA, 1* HDMI & 1* RJ45

HDD: 1 HDD (Max 6TB each HDD)

Support: 3G and WIFI (External)

Support Protocols: TCP/IP, IPv4, HTTP/HTTPS, DNS, RTMP, RTSP……


咨询

产品规格 发询盘 相关产品



Model

TT-NVR081P

Operating   System

Embedded LINUX   Operating System

Image Code Control

Image Code   Quality Adjustable, Variable   Bit Stream &Constant Bit Stream   Optional

Dual Stream

Main Stream   &Sub Stream Changeable by   Channels

Video Standard

1080P   (1920*1080) 30FPS; 960P (1280*960);   720P   (1280*720) 30FPS

Preview Image

1080P   (1920*1080); 960P (1280*960); 720P     (1280*720)

Motion   Detection

Multiple   Detection Areas & 6- level   Sensitivity (IPC Support)

Video Playback

Any 4 Channel   960P or 1 Channel 1080P   Playback Simultaneously

Privacy Area

4 Privacy   Areas (Require IPC Support too)

Recording Mode

Support   Manual, Auto, Dynamic Detection,   Alarm Trigger Record Mode (Some of   these functions need support by IPC)

Backup

Support HDD, U   disk, USB mobile HDD, USB   DVD-RW, Network Storage & Backup

Operation

Mouse

Local Login

User Name   & Password

Recording   Storage

Local HDD,   Network

External
    Ports

Network Video   Input

1)8*(1280*720)+sub[960*576]+4Ref.+4Play       8 Channel 1.0MP IP Camera

2) 8*(1280*960)+sub[960*576]+1Ref.+4Play       8 Channel1.3MP IP Camera

3) 8*(1920*1080)+sub[960*576]+4Ref.+1Play      8 Channel 2.0MP IP Camera

Audio Input

8 Channel   Network Audio Input

Audio Output

1 Channel RCA   and Two-way Audio

Video Output

1 * VGA      + 1 * HDMI

Network

9 *   RJ4510M/100MSelf-adaptive LAN Port (8   * IEEE802.AF)

USB

 3* USB   Port

Wireless

WIFI, 3G

HDD

HDD Port

1 * SATA HDD

Max Capacity

Max.6TB HDD   each HDD

Smart Phone   Remote View

Support   iPhone, Windows Mobile,   BlackBerry, Symbian, Android  System   Remote Control

Power Supply

DC 48V/3A

Power   Consumption

Max.6W   without HDD

Working   Temperature

-10°C~+55°C

Working   Humidity

10%-90%

Size (mm)

Product:   260mm*220mm*45mm,Include   Packing:   355mm*255mm*90 mm

Weight   (without HDD)

Product:   2Kg; Include   Packing: 3Kg
