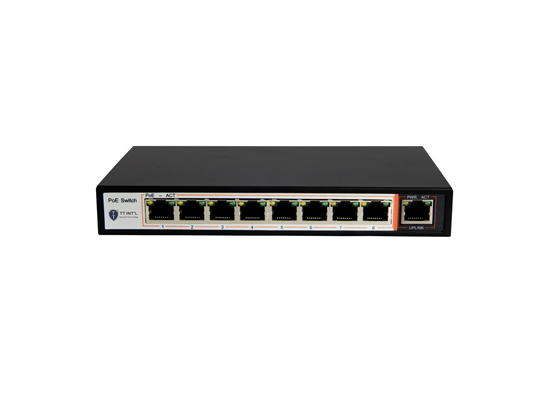

TT-POE1081

8+1 Port 10/100Mbps PoE Switch

特征:

9 10/100Mbps Auto-Negotiation RJ45 ports with 8 PoE port

Complies with IEEE802.3af standard

Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)

Bandwidth 1.8Gbps

Supports PoE power up to 15.4W for single PoE port

Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device

LED indicators for monitoring power, link, activity and speed

96W external power adapter


咨询

产品规格 发询盘 相关产品



Model

TT-POE1081

Standard



IEEE802.3, 802.3u, 802.3af, 802.3x,

CSMA/CD, TCP/IP

Basic Function

Wire-speed Performance


IEEE802.3x flow control for Full-Duplex Mode   and backpressure for Half-Duplex Mode

Bandwidth

1.8 Gbps

Power support

Max power: 15.4W for single POE port


96W Power adapter

Transmission Method

Store-and-Forward

Ports

9 10/100/Mbps Auto-Negotiation RJ45 ports (Auto   MDI/MDIX)

Network Media

10Base-T: UTP category 3, 4, 5 cable (maximum   100m)


EIA/TIA-568 100Ù STP (maximum 100m)


100Base-Tx: UTP category 5, 5e cable (maximum   100m)


EIA/TIA-568 100Ù STP (maximum 100m)


1000Base-T: UTP category 5, 5e cable (maximum   100m)

LED Indicators

Power, Link/Act ( 10/100Mbps)

Safety & Emission

FCC, CE, ROHS

Environment

Operating Temperature: 0°C~50°C


Storage Temperature: -10°C~70°C


Operating Humidity: 10%~90% non-condensing


Storage Humidity: 5%~90% non-condensing

Product Size:

183*94*27mm

Weight

1.05kg
