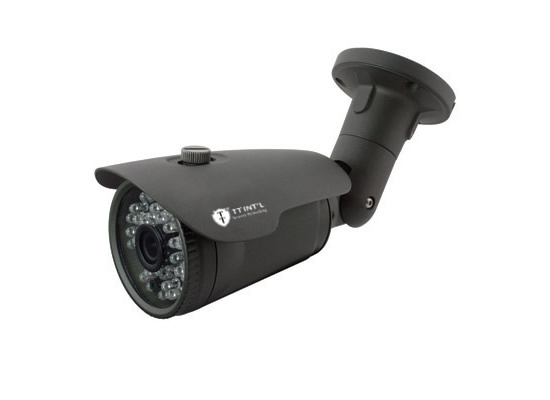

2.0MP 1080P Outdoor IR Bullet IP Camera

Features:

Outdoor IR Bullet IP Camera

3.6mm Mega Pixel Board Lens

24 pcs Φ5 IR LEDs

Built-in IR Cutter Filter

PoE and Two-way Audio Optional

Alarm in, BNC Out, RS-485, USB, Restore(Optional for 2.0mp/4.0mp)

TF Card (Optional for 2.0mp/4.0mp)

Support P2P, CMS, VPN and Hikvition's Private Protocol

App. for IOS & Android

Support 4 intelligent ROI area setting, improve the image quality of the area

Supports intelligent encoding, automatically reduce image quality when video is stationary

and automatically enhance image quality when video in motion.

Support for shelter, out of focus and low-light intelligent detection

Cable through Bracket

Weatherproof for Outdoor & Indoor use

Enquiry

Specifications Send Inquiry Related Products

Model	TT-X13MS5	TT-X2MS5		TT-X4MS5
Image Sensor	1/2.7" Progressive Scan CMOS	1/2.7" Progressive Scan CMOS		1/2.7" Progressive Scan CMOS
Min. Illumination	0.01Lux @(F1.2,AGC on) 0Lux with IR	0.01Lux @(F1.2,AGC on) 0Lux with IR		0.02Lux @(F1.2,AGC on) 0Lux with IR
Shutter time	1/50 s ~ 1/10,000s	1/50 s ~ 1/10,000s		1/50 s ~ 1/10,000s
Lens	3.6mm Mega Pixel Board Lens
Day& Night	Auto Switch IR Cutter Filter
Wide Dynamic	120 dB	120 dB	90 dB
DNR	3D DNR	3D DNR	3D DNR
Compression Standard
Compression	H.264 + / H.264 / MPEG	H.264 + / H.264 / MPEG	H.265 / H.264 / MPEG
H.264 Code	Main Profile	Main Profile	Main Profile
Video Bit Rate	32Kbps~16Mbps	32Kbps~16Mbps	32Kbps~16Mbps
Resolution	1280*960	1920*1080	2592*1520
Frame Rate	1280*960 (25/30fps)	1920*1080 (25/30fps)	2592*1520 (25/30fps)
Image Enhancement	AGC, 3D DNR, WDR, Sharpness
Image Settings	Motion Detection, Privacy Mask, Video Tampering
Day/Night Switch	Auto/Outside Trigger/Color/Black White
Network
Network Storage	NVR & CMS
Protocols	TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, Hikvition's Private Protocol
General Function	Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask
System Compatibility	ONVIF2.4, PSIA, CGI, SPR
Browser	IE
Interface
Interface	1* RJ-45 10M/100M Ethernet Port
Serial Port	NC	RS-485 (Optional)
Reset button	NC	1* Reset button(Optional)
Video Port	NC	BNC (Optional)
Micro SD	NC	Micro SD/ TF (Optional)
Alarm	NC	1* Alarm Input (Optional)
Audio Input	AV Port (Optional)
Audio Output	AV Port (Optional)
wireless	NC	WIFI (Optional)
General
Operating Temp.	-30 °C ~ 60 °C (-22 °F ~ 140 °F)		-20°C ~ 50 °C (-4 °F ~ 122 °F)
Operating Humidity	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%
PoE	PoE (IEEE 802.3af Class3) (Optional)
Power Consumption	Max. 9.5W	Max. 10W		Max. 11.5W
IP Grade	IP66
IR Range	25 Meters
Dimensions (mm)	210mm (L) * 70mm (W) * 75mm (H)
Net Weight (kg)	0.8kg
