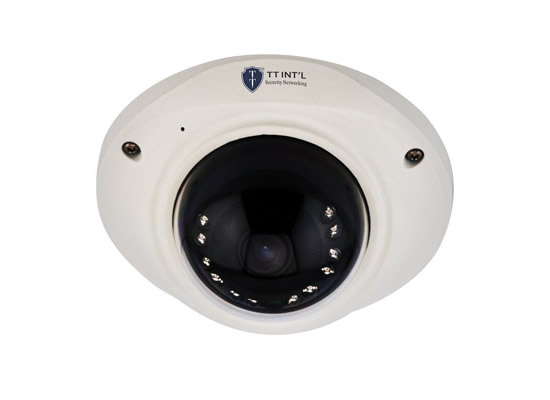

2MP Mini IP Dome Camera
Features:
Vandal Proof Metal IR IP Dome
3.6mm Mega Pixel Board Lens
12pcs Φ5 IR LEDs
Built-in IR Cutter Filter
PoE and Two-way Audio Optional
Alarm in, BNC Out, RS-485, USB, Restore(Optional for 2.0mp/4.0mp)
TF Card (Optional for 2.0mp/4.0mp)
Support P2P, CMS, VPN and Hikvition's Private Protocol
App. for IOS & Android
Support 4 intelligent ROI area setting, improve the image quality of the area
Supports intelligent encoding, automatically reduce image quality when video is stationary
and automatically enhance image quality when video in motion.
Support for shelter, out of focus and low-light intelligent detection
Indoor use
Specifications Send Inquiry Related Products
Model | TT-X13MD2 | TT-X2MD2 | TT-X45MD2 | |
Image Sensor | 1/2.7" Progressive Scan CMOS | 1/2.7" Progressive Scan CMOS | 1/2.7" Progressive Scan CMOS | |
Min.Illumination | 0.01Lux @(F1.2,AGC on) 0Lux with IR | 0.01Lux @(F1.2,AGC on) 0Lux with IR | 0.02Lux @(F1.2,AGC on) 0Lux with IR | |
Shutter time | 1/50 s ~ 1/10,000s | 1/50 s ~ 1/10,000s | 1/50 s ~ 1/10,000s | |
Lens | 3.6mm Mega Pixel Board Lens | |||
Day& Night | Auto Switch IR Cutter Filter | |||
Wide Dynamic | 120 dB | 120 dB | 90 dB | |
DNR | 3D DNR | 3D DNR | 3D DNR | |
Compression Standard | ||||
Compression | H.264 + / H.264 / MPEG | H.264 + / H.264 / MPEG | H.265 / H.264 / MPEG | |
H.264 Code | Main Profile | Main Profile | Main Profile | |
Video Bit Rate | 32Kbps~16Mbps | 32Kbps~16Mbps | 32Kbps~16Mbps | |
Image | ||||
Resolution | 1280*960 | 1920*1080 | 2592*1520 | |
Frame Rate | 1280*960 (25/30fps) | 1920*1080 (25/30fps) | 2592*1520 (25/30fps) | |
Image Enhancement | AGC, 3D DNR, WDR, Sharpness | |||
Image Settings | Motion Detection, Privacy Mask, Video Tampering | |||
Day/Night Switch | Auto/Outside Trigger/Color/Black White | |||
Network | ||||
Network Storage | NVR & CMS | |||
Protocols | TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, Hikvition's Private Protocol | |||
General Function | Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask | |||
System Compatibility | ONVIF2.4, PSIA, CGI, SPR | |||
Browser | IE | |||
Interface | ||||
Interface | 1* RJ-45 10M/100M Ethernet Port | |||
Serial Port | NC | RS-485 (Optional) | ||
Reset button | NC | 1* Reset button(Optional) | ||
Video Port | NC | BNC (Optional) | ||
Micro SD | NC | Micro SD/TF (Optional) | ||
Alarm | NC | 1* Alarm Input | ||
Audio Input | AV Port (Optional) | |||
Audio Output | AV Port (Optional) | |||
wireless | NC | WIFI (Optional) | ||
General | ||||
Operating Temp. | -30 °C ~ 60 °C (-22 °F ~ 140 °F) | -20°C ~ 50 °C (-4 °F ~ 122 °F) | ||
Operating Humidity | Humidity 95% or less (non-condensing) | |||
Power Supply | 12 VDC ± 25% | |||
PoE | PoE (IEEE 802.3af Class3) (Optional) | |||
Power Consumption | Max. 9.5W | Max. 10W | Max. 11.5W | |
IP Grade | IP66 | |||
IR Range | 15Meters | |||
Dimensions (mm) | 120mm (W) *65mm (H) | |||
Net Weight (kg) | 0.5 kg | |||
