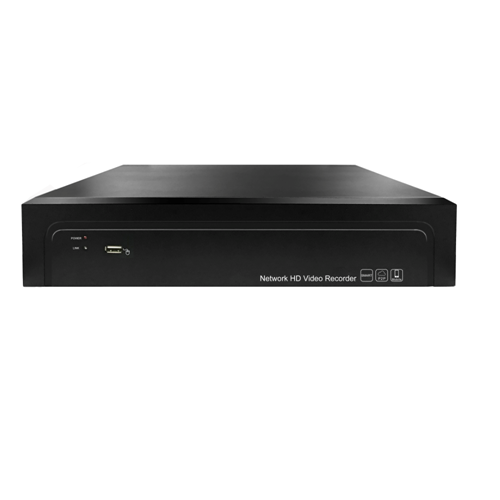

32 Channel 5MP NVR H.265 with 1ch audio and Alarm
Features:
H.265 / H.264 Encoding.
Support ONVIF protocol, Highprofile S, Highprofile G.
Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.
P2P Cloud Services.

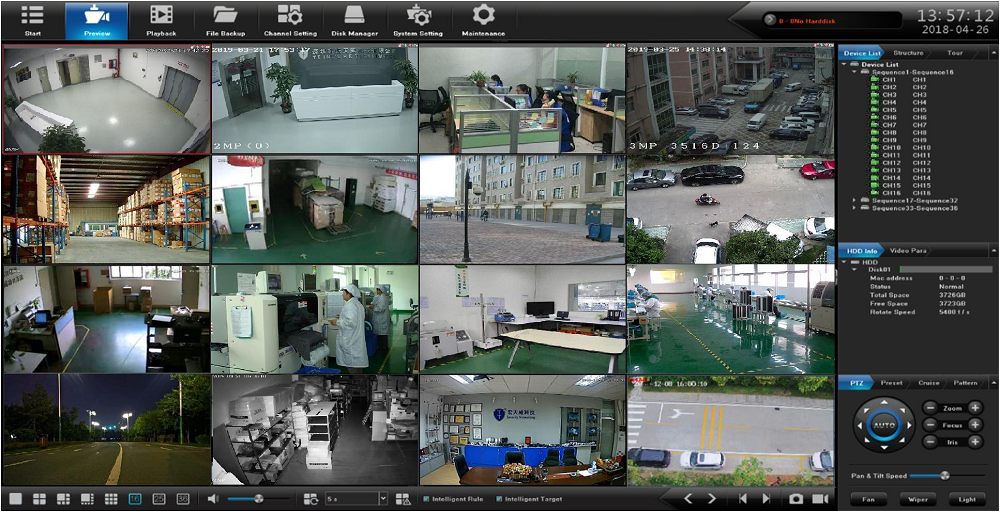

Playback and Preview Simultaneously.
Self-adaptive stream for preview and playback, Max. 1080P for 4CH, Max. 3840*2160 for Single Channel.
CMS or VMS Provided.
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-NVR53225M1 | |
Operating System | Embedded LINUX operating system | |
Video Standard | H.265+/ H.265/H.264 | |
Intelligent | with Smart IPC | Target Count, Object Left /Lost, Area Detection, Line Crossing |
Video & Audio Input | Video Input | 32CH 5MP, 25CH 5MP, 16CH 4K H.265+/H.265/H.264 IP Camera |
Bandwidth | 80M | |
Audio Input | IPC composite stream network audio input | |
Video & Audio Output | HDMI Output | 1CH, Resolution : 4K(3840*2160)/30Hz, 1920*1080/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
VGA Output | 1CH, Resolution : 1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
Audio Output | 1CH, RCA port （Linear level, impedance : 1KΩ） | |
Preview Split | 1/4//9/16 screen | |
Video & Audio Coding | Video Resolution | 8MP/5MP/4MP/3MP/1080P and below resolution |
Synchronized Playback | 16ch /9ch /4ch Synchronized Playback（Different in various access modes） | |

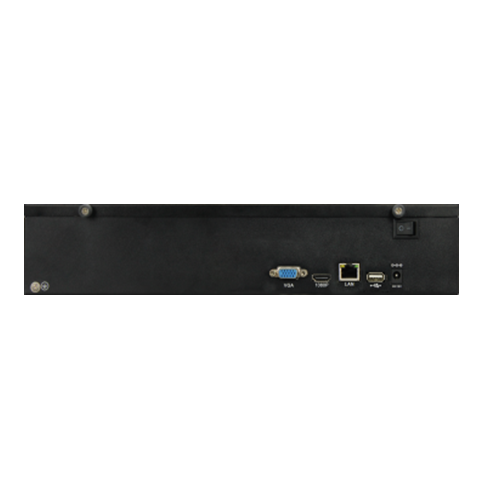

External Ports | Audio | 1CH audio input, 1CH audio output, RCA port（Level : 2.0Vp-p, impedance : 1kΩ） |
Network | 1 * RJ45 10M/100M adaptive Ethernet port | |
USB | Front 1 * USB2.0; Rear 1 * USB2.0 | |
Alarm | 4 in 1 out alarm | |
485 | RS-485 | |
HDD | HDD Port | 2 * SATA |
MAX Capacity | up to 8TB | |
Network Management | Network Protocol | UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address) |
P2P Remote Monitoring | Umeyepro AEeye | Supports iPhone, iPad, Android Smart phone |
Supports Windows 7 and above computer client, supports Apple MAC computer client | ||
Power Supply | DC 12V3A (external adapter) | |
Working Temperature | -10℃--＋55℃ | |
Working Humidity | 10％-90％ | |
Power Consumption | ≤15W (without HDD) | |
Dimensions | Device : 350*240*68mm, Packing : 409*365*129mm | |
Weight (Without HDD) | N.W. : 1.3Kg ; Packing : 2Kg | |
External Carton Package | 5 pcs/carton. Dimension : 675*425*385mm ; Weight : 12Kg | |
Installation Method | Desktop installation | |
