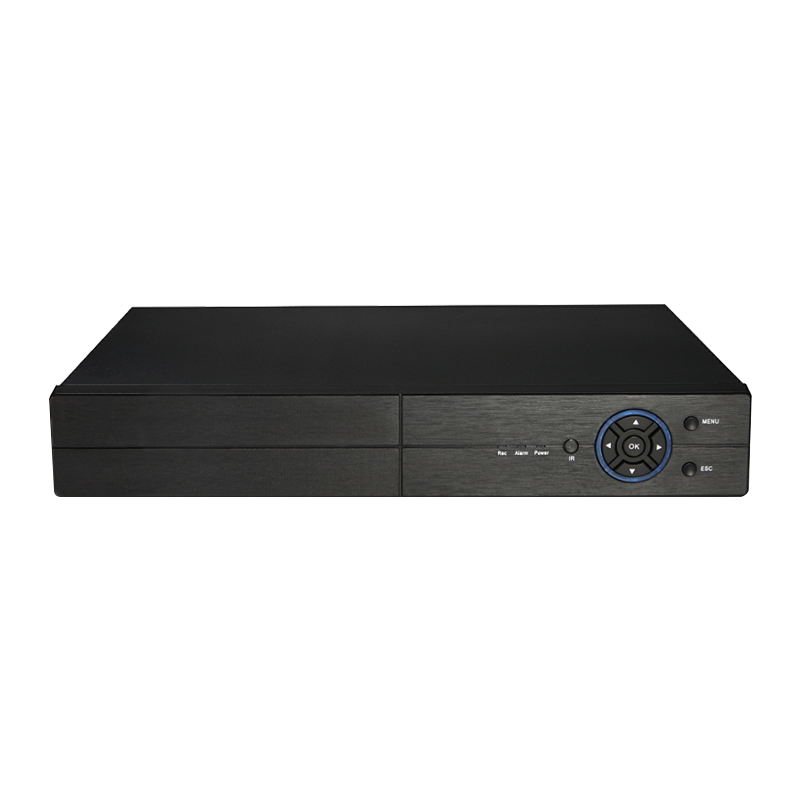

8CH AI Intelligent Face Comparison NVR-Face NVR

Specifications Send Inquiry Related Products

System
Model	TT-NVR081AI
Main Chip	HI3536D
Operating System	Embedded Linux operating system
Interface
Operation Interface	Graphical operation interface, support mouse / keyboard operation
Screen Display	1/4/9 screen
Video
Video Access	8CH 3MP
Video Frame Rate	NTSC @ 30 frames, PAL @ 25 frames
Video Output	VGA * 1, HDMI * 1
Image Decoding	H.264 / H.265 / H.265 +
Mask	Support (require IPC support this function too)
Motion Detection	Support (require IPC support this function too)
Smart Function
Face List Database	3000 faces can be stored in 16 databases
Face Recognition	Support 1CH face comparison (requires face capture camera to support)
Face Capture	Support face capture function (requires face capture camera to support)
Face Retrieval	Support event retrieval, face image retrieval, U disk upload image retrieval
Human Detection	Support humanoid detection function (requires humanoid detection camera)
Audio
Audio Format	G.711U, G.711A, G.726
Audio Intercom	N/A
Audio Input	1: 1 network audio input based on number of channels
Audio Output	Support HDMI output audio, support 1CH RCA output
Video Playback
Video Recording	Timing recording, motion detection recording, manual recording, smart recording
Playback Channel	1 CH 3MP playback
Video Playback Search	Point-in-time playback, log event playback, time bar playback, fast playback, smart event playback
Backup Storage
Video Save	Local hard disk, network
Backup Method	USB mobile hard disk, U disk
Remote Monitoring
Phone Monitoring	Support (iPhone, Android) smart phone
Computer Monitoring	Support IE, VMS client remote monitoring

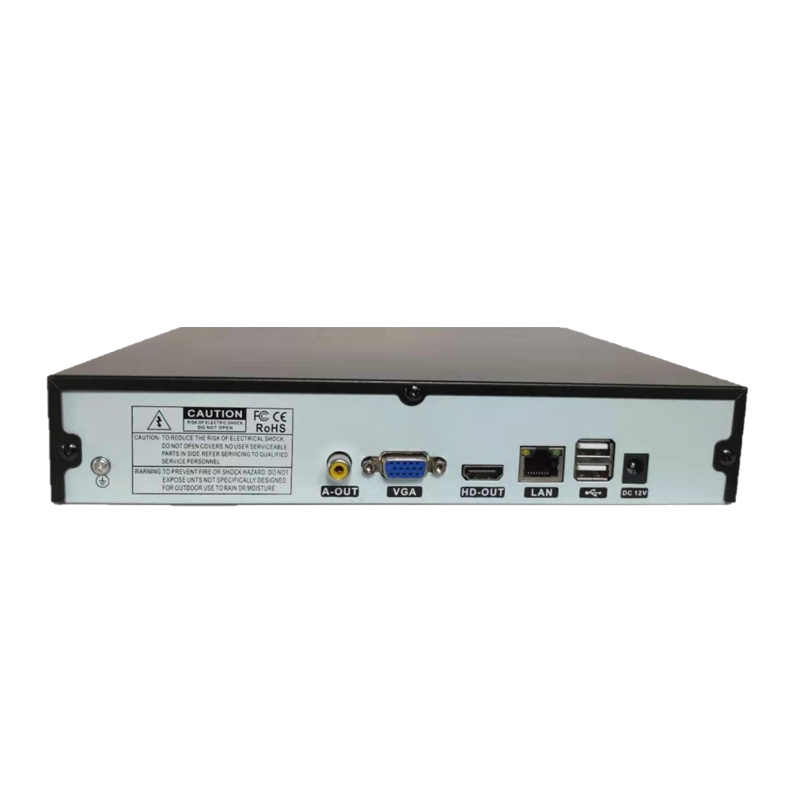

External Interface
Video Output	1 VGA, 1 HDMI interface
Network Interface	1 RJ45 10 / 100M adaptive Ethernet interface
Alarm Interface	N/A
485 Interface	N/A
USB Interface	2 USB 2.0 ports
Hard Disk Interface	1 SATA 2.0 interface; SATA interface supports a maximum capacity of 6T
Other
PTZ Control	Control PTZ via network
ONVIF	Support
Power Supply	DC12V 2A
Power Consumption	≤15W
Working Environment	-10℃～+50℃ 10%～95%RH
