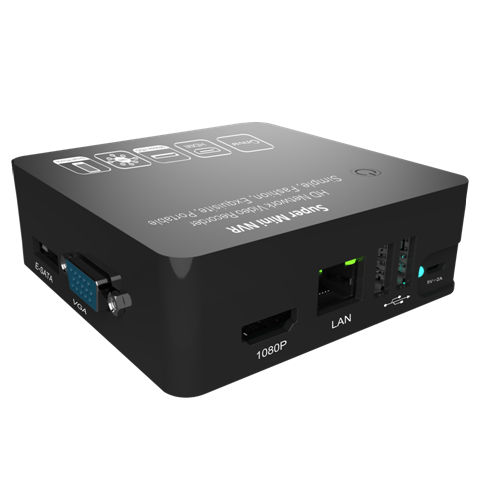

9 Channel 1080P MINI NVR H.265
Features:
H.265 / H.264 Encoding.
Support ONVIF protocol, Highprofile S, Highprofile G.
Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.
P2P Cloud Services.
Playback and Preview Simultaneously.
Self-adaptive stream for preview and playback, Max. D1 for 9CH, Max. 720P for 4CH, Max. 1080P for Single Channel.
CMS or VMS Provided.
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-MNVR091 | |
Operating System | Embedded LINUX operating system | |
Video Standard | H.265/H.264 | |
Intelligent | with Smart IPC | Target Count, Object Left /Lost, Area Detection, Line Crossing |
Video & Audio Input | Video Input | 9CH 1080P H.265+/H.265/H.264 IP Camera |
Bandwidth | 24M | |
Audio Input | IPC composite stream network audio input | |
Video & Audio Output | HDMI Output | 1ch , HDMI can output audio at the same time, |
VGA Output | 1ch | |

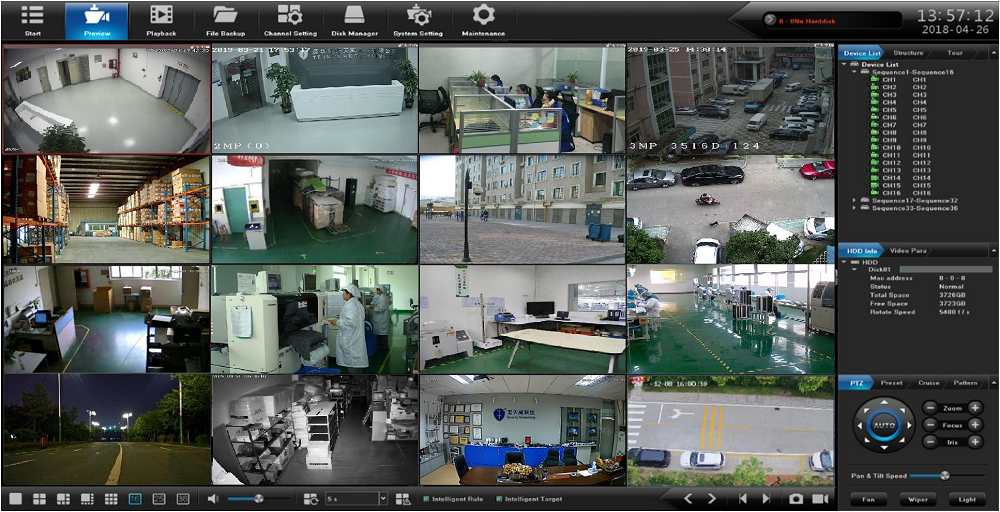

Preview Split | 1/4/6/8/9, multi screens split max sub-stream D1(704*576) , single screen main stream | |
Video & Audio Coding | Video Resolution | 1080P and below resolution |
Synchronized Playback | Support adaptive stream playback: 9 screens D1, 4 screens 1280*720, single screen 1920*1080 | |
External Ports | Network Port | 1 * RJ45 10M/100M adaptive Ethernet port |
USB Port | 2 * USB 2.0 Port rear | |
HDD | HDD Port | USB portable HDD port + 1 * eSATA port |
Max Capacity | USB powered by NVR: mobile hard disk supports up to 2T, Powered by the adapter separately: mobile hard disk and hard disk box support up to 8T, | |
P2P Remote Monitoring | Umeyepro AEeye | Supports iPhone, iPad, Android Smart phone |
Supports Windows 7 and above computer client, supports Apple MAC computer client | ||
Power Supply | DC 5V2A（external power adaptor） | |
Working Temperature | -10℃--＋55℃ | |
Working Humidity | 10％-90％ | |
Power Consumption (no HDD)Power Supply | ≤8W | |
Dimensions | Device : 88*88*32mm , Packing: 185.5*115.5*36mm | |
Weight (Without HDD) | N.W. : 105g ; Packing : 250g | |
External Carton Package | 30pcs/carton Size : 365*350*188mm ; Weight : 8Kg | |
Installation Method | Desktop installation | |
