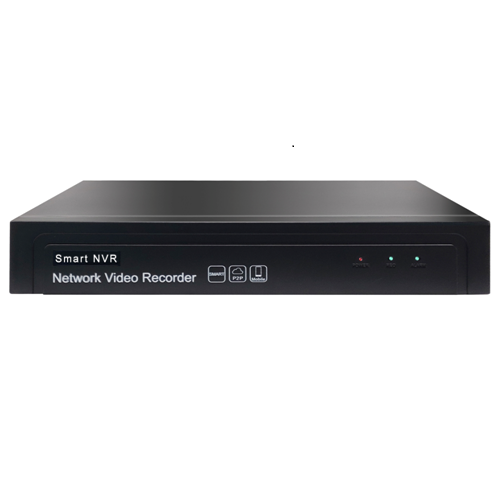

H.265 16 Channel 1080P 1U 1HDD NVR
Features:
H.265 / H.264 Encoding.
Support ONVIF protocol, Highprofile S, Highprofile G.
Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.
P2P Cloud Services.

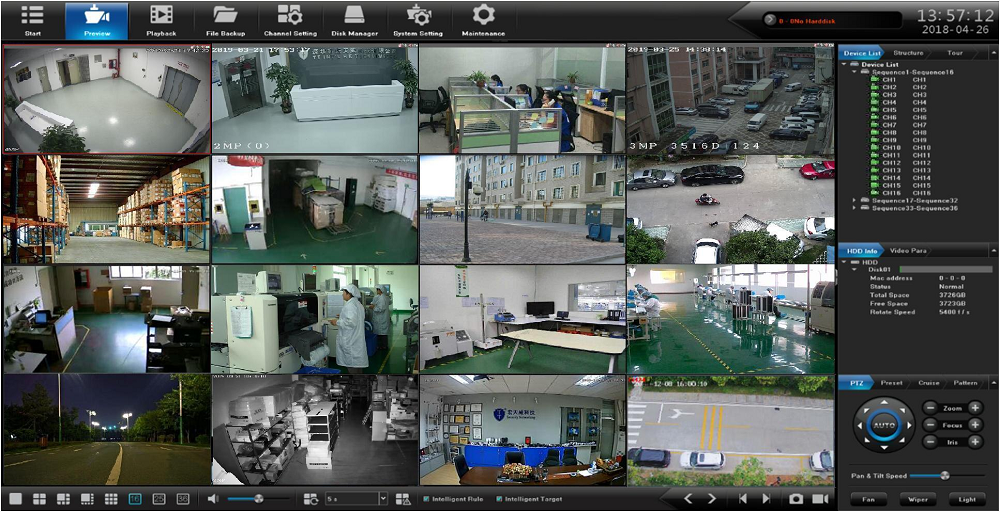

Playback and Preview Simultaneously.
Self-adaptive stream for preview and playback, Max. D1 for 9CH, Max. 720P for 4CH, Max. 1080P for Single Channel.
CMS or VMS Provided.
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-NVR51612M | |
Operating System | Embedded LINUX operating system | |
Video Standard | H.265+/ H.265/H.264 | |
Intelligent | with Smart IPC | Target Count, Object Left /Lost, Area Detection, Line Crossing |
Video & Audio Input | Video Input | 16ch 1080P H.265+/H.265/H.264 IP camera |
Bandwidth | 24M | |
Audio Input | IPC composite stream network audio input | |
Video & Audio Output | HDMI Output | 1CH, HDMI can output audio at the same time |
VGA Output | 1CH | |
Preview Split | 1/4/9 screen | |
Video & Audio Coding | Video Resolution | 1080P and below resolution |
Synchronized Playback | Support adaptive stream preview and playback : 9 screens D1, 4 screens 1280*720, single screen 1920*1080 | |
External Ports | Internet | 1 * RJ45 10M/100M adaptive Ethernet port |
USB | 2 * USB2.0 rear | |
HDD | HDD Port | 1 * SATA |
MAX Capacity | up to 8TB | |
Network Management | Network Protocol | UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address) |
P2P Remote Monitoring | Umeyepro AEeye | Supports iPhone, iPad, Android Smart phone |
Supports Windows 7 and above computer client, supports Apple MAC computer client | ||
Power Supply | 12V2A (external adapter) | |
Working Temperature | -10℃--＋55℃ | |
Working Humidity | 10%-90% | |
Power Consumption | ≤10W (without HDD) | |
Dimensions | Device : 255*220*43mm , Packing : 358*93*258mm | |
Weight (Without HDD) | N.W. : 0.72Kg; Packing : 1Kg | |
External Carton Package | 10 pcs/carton. Dimension : 462*365*530mm; Weight : 12Kg | |
Installation Method | Desktop installation | |
