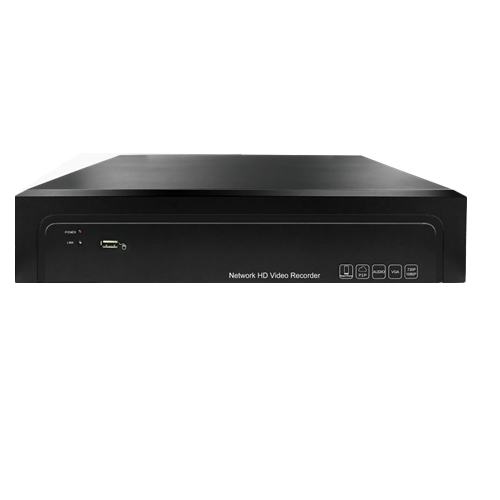

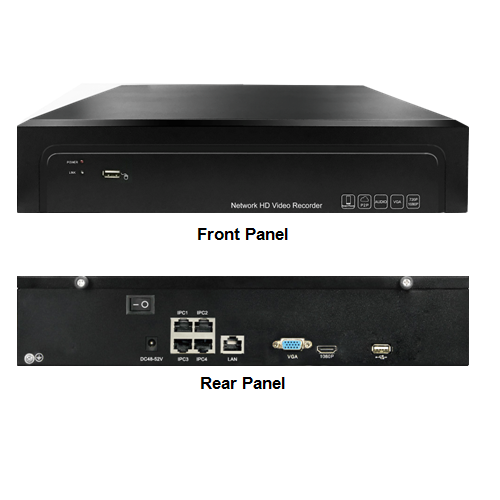

H.265 16CH 4K NVR with 4CH POE
Features:
H.265 / H.264 Encoding.
Support ONVIF protocol, Highprofile S, Highprofile G
Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing, Sound Detection, Fire Detection, Video Diagnostic Detection.
P2P Cloud Services.
Playback and Preview Simultaneously.
Self-adaptive stream for preview and playback, Max. 720P for 4CH, Max. 2592*1944 for Single Channel.
CMS or VMS Provided.
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-NVR51624KP4 | |
Operating System | Embedded LINUX operating system | |
Video Standard | H.265+/ H.265/H.264 | |
Intelligent | with Smart IPC | Target Count, Object Left /Lost, Area Detection, Line Crossing |
Video & Audio Input | Video Input | ① 32 digital（2592*1944）+36 Preview+9 Playback, 32ch 5MP or below channel IPC |
② 25 digital（2592*1944）+25 Preview+9 Playback, 25ch 5MP or below channel IPC | ||
③ 16 digital（3840*2160）+16 Preview+16 Playback, 16ch 4K or below channel IPC | ||
④ 8 digital（3840*2160）+9 Preview+9 Playback, 8ch 4K or below channel IPC | ||
⑤ 4 digital（3840*2160）+4 Preview+4 Playback, 4ch 4K or below channel IPC | ||
Bandwidth | 80M | |
Audio Input | IPC composite stream network audio input | |
Video & Audio Output | HDMI Output | 1ch , HDMI can output audio at the same time, Note : 32ch 、25ch 5MP input 1080P resolution, 16ch, 8ch, 4ch input 4K resolution |
VGA Output | 1ch | |

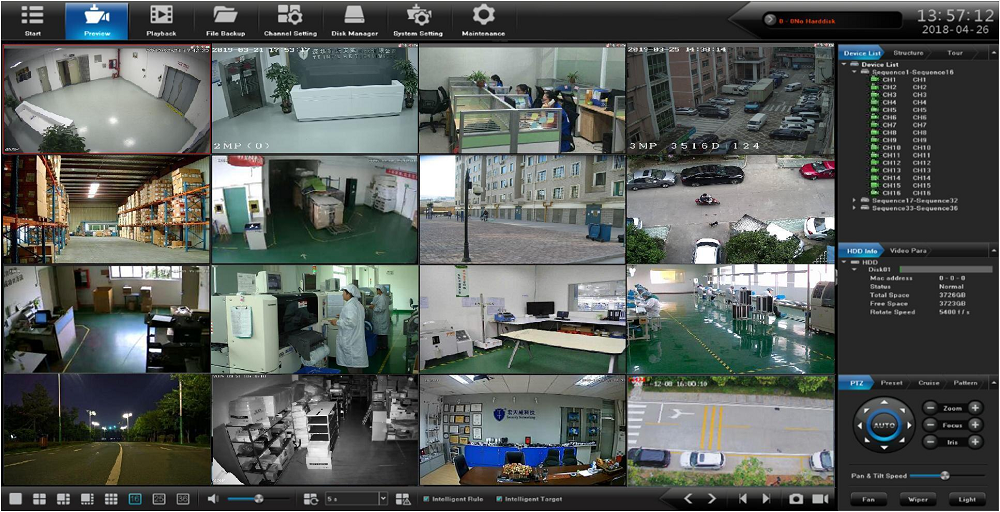

Preview Split | In 32ch mode, 36 screens split max sub-stream VGA(640*480, or 704*416) , single screen main stream | |
In 25ch mode, 25 screens split max sub-stream D1(704*576) , single screen main stream | ||
In 16ch mode, 16 screens split max sub-stream D1(704*576) , single screen main stream | ||
In 8ch mode, 9 screens split max sub-stream D1(704*576) , single screen main stream | ||
In 4ch mode, 4 screens split max sub-stream D1(704*576) , single screen main stream | ||
Video & Audio Coding | Video Resolution | 4K/5MP/4MP/3MP/1080P and below resolution |
Synchronized Playback | 4ch | |

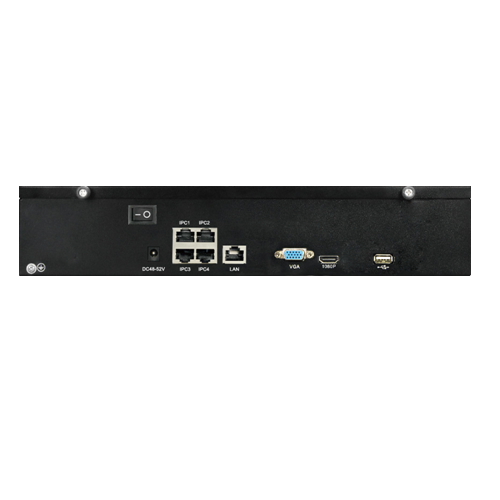

External Port | Internet Port | 1 * RJ45 10M/100M adaptive Ethernet port |
USB Port | 2 * USB2.0, Front 1x, Rear 1x | |
HDD | HDD Port | 2 * SATA |
MAX Capacity | Single port up to 8TB | |
POE | Port | 4x independent 10/100Mpbs Ethernet port, support 200M network cable |
Support Standard | IEEE802.3af | |
P2P Remote Monitoring | Umeyepro AEeye | Supports iPhone, iPad, Android Smart phone |
Supports Windows 7 and above computer client, supports Apple MAC computer client | ||
Power Supply | DC 52V1.5A | |
Working Temperature | -10℃--＋55℃ | |
Working Humidity | 10％-90％ | |
Power Consumption (no HDD) | POE≤52W, NVR main board≤8W | |
Dimensions | Device : 350*240*68mm, Packing : 409*365*129m | |
Weight (Without HDD) | N.W. : 1.8Kg; Packing : 3Kg | |
External Carton Package | 5 pcs/carton. Dimension : 675*425*385mm ; Packing : 17 Kg | |
Installation Method | Desktop installation | |
