H.265 36CH 4K/5MP/1080P 9HDD NVR
Features:
• H.265 / H.264 Encoding
• Support ONVIF protocol, Highprofile S, Highprofile G
• NVR Local Intelligence: target count, object left/lost, area detection, line crossing.
• Smart Functions (IPC must support smart functions too):Target Count, Object Left/Lost, Area Detection, Line Crossing,
Sound Detection, Fire Detection, Video Diagnostic Detection.
• P2P Cloud Services

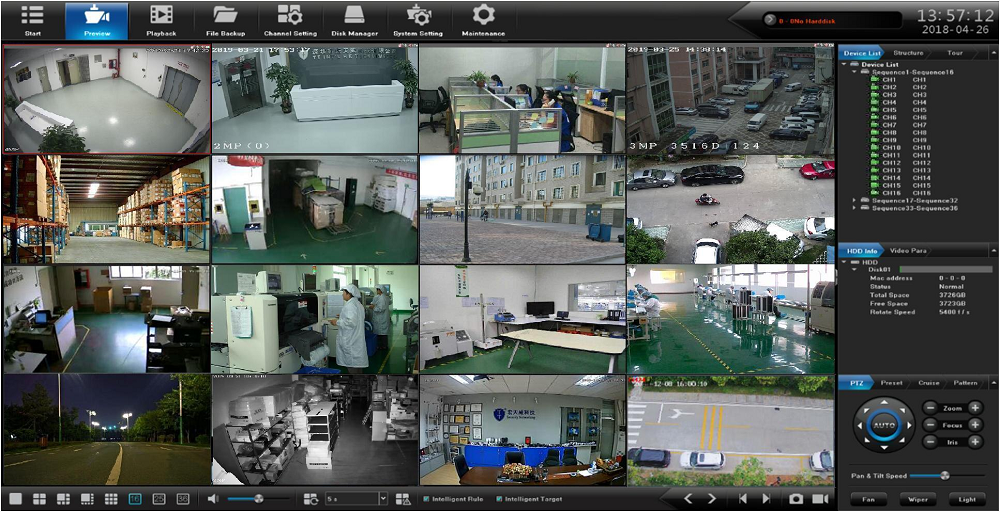

• Playback and Preview Simultaneously.
• Self-adaptive stream for preview and playback, Max. 1080P for 4CH, Max. 3840*2160 for Single Channel.
• CMS or VMS Provided
Specifications Send Inquiry Related Products
Technical Parameters:
Model No. | TT-NVR5369 | |
Video & Audio Input | Video Input | 36ch（Compatible with 4K resolution below 4K） |
Bandwidth | 216M | |
Audio Input | IPC composite stream network audio input | |
Video & Audio Output | HDMI Output | 1ch HDMI, 1ch VGA, Resolution : 3840*2160/30Hz, 1920*1080/60Hz, 1280X1024/60Hz |
Audio Output | 1ch RCA | |
Video & Audio Coding | Video Format | H.265/H.264 /MJPEG |
Resolution | 12M/8M/5M/3M/1080P/720P | |
Playback | Max support 16ch 1080P playback | |
Video management | Video/Picture mode | Manual recording, timer recording, event recording, motion detection recording, alarm recording, motion measurement or alarm recording, motion measurement and alarm recording |

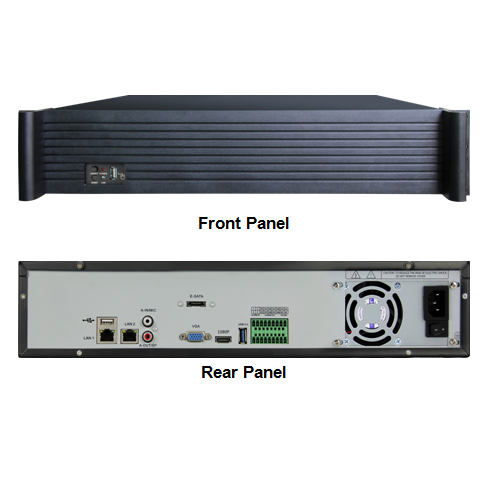

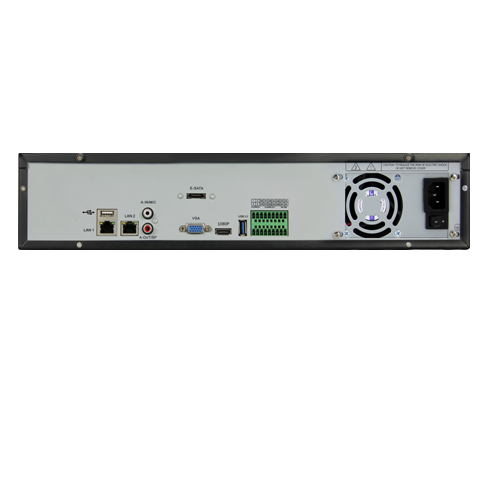

HDD | HDD Port | 9 * SATA+1 * eSATA HDD Port |
MAX Capacity | Each port up to 8TB | |
External Port | Network Port | 2 x, RJ45 10M/100M/1000M adaptive Ethernet port |
USB Port | 3x, 1 * USB2.0 front, 1 * USB2.0+1*USB3.0 back | |
Serial Port | RS-485 | |
Alarm Input | 4ch alarm input, active low, green terminal interface | |
Alarm Output | 4ch alarm output, relay contact (1A@24VDC), NO, NC programmable | |
Network Management | Network Protocol | ONVIF (supports version 2.4), IPv4, UPnP (plug and play), NTP (network time), SADP (automatic search IP address), PPPoE (dial-up), DHCP (automatically obtain IP address), etc. |
Power Supply | ATX 110-220V~ 50/60Hz 200W | |
Working Temperature | -10℃--＋55℃ | |
Working Humidity | 10％-90％ | |
Power Consumption | ≤30W (without HDD) | |
Dimensions | Device : 437*483*143mm; Packing: 600*556*275mm | |
Weight (Without HDD) | N.W. : 7.4Kg ; Packing : 9.8Kg | |
External Carton Package | 1 pcs/carton. Dimension : 555*545*250mm, Packing : 10.8Kg 2 pcs/carton. Dimension : 555*545*470mm, Packing : 21Kg | |
Installation Method | Desktop installation | |
