10 Port Gigabit AI PoE switch-PoE Switch

—————— Products Center ——————

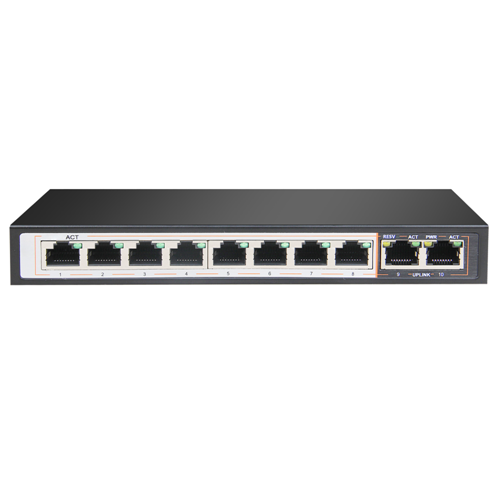

10 Port Gigabit AI PoE switch

Features:

AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above)

AI VLAN: Isolating ports 1-8 from each other, restrain network storms effectively and improve network performance

AI QOS: Prioritize the identified video data to make video transmission smoother

AI PoE: Automatic detection power of port, power off and restart the device if find dead machine

Supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard and supply power to it

Support Auto MDI/MDIX;

Adopt store-and-forward exchange method

Intelligent power supply, the lowest power consumption, ensure PD power needs

With power circuit protection, protect the safety of PD

No configuration characteristics of the power supply is automatically supplied to the adaptive equipment;

Fan-less design, energy saving and environmental protection; no noise, reduce the impact on the environment

Compact size design

Support port without link power saving function

All ports have wire-speed forwarding capability

Plug and play, easy to use

Specifications Send Inquiry Related Products

Specification:

Network Port	8 10/100/1000Mbps PoE RJ45 port (port 1～port 8)
Network Port	2 10/100/1000Mbps non-POE RJ45 port(port 9~port 10)
Transfer Rate	1000Mbps full Duplex,
Network Protocol & Standard	IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3ab,IEEE802.3af IEEE802.3at
Performance	Bandwidth: 20Gbps(no block)
	Frame filtering and transmission rate:
	10M port maximum 14,800pps
	100M port maximum 148,800pps
	1000M port maximum 1，488，000pps
LED Indicator	Power
	RESV
	LINK/ACT
POE Pin	1/2/4/5(+) , 3/6/7/8(-)
Power	Max. output power single port: 30W
Power	Max Power supply: 96W
Dimensions	Size (LWH): 1859528mm
Dimensions	Weight: 0.8kg
Environment	Operating Temperature: 0°~40°C
Environment	Operating Humidity : 10%~90%, Non-condensing
Safety Regulations	CE/ROHS/FCC/CCC
