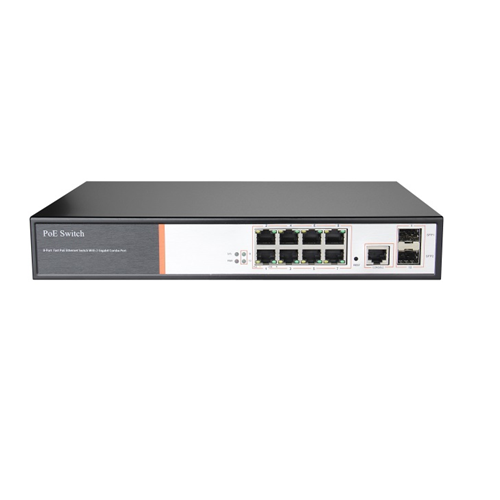

8 Gigabit Managed PoE Switch

Features:

Overview

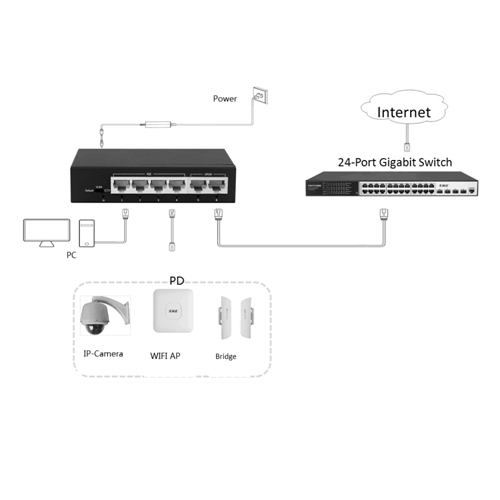

TT-POE1082S is 8 port gigabit managed PoE switch which designed for security industry, automatically detect and identify IEEE 802 af / at standard PD devices and power it. Therefore, there is no need to worry about damaging private standard PoE or non-PoE device.TT-POE1082S is the ideal choice for those who desire to economically use PoE to deploy wireless access point and small-size commercial network that is based on IP camera. Which can effectively solve the problems of tedious maintenance, wireless coverage, power take-off of terminal equipment, security monitoring project and long time project, thus saving the project cost to the maximum.

Features

Power over wireless access point (AP) and surveillance cameras via Category 5 Ethernet cable

PD equipment supporting IEEE802.3af / at standard;

Long-distance data transmission and power supply, the distance up to 100 meters, saving power lines,

flexible installation of wireless AP and network monitoring equipment; Support Auto MDI / MDIX;

Adopt store-and-forward switching method;

intelligent power supply, the lowest power consumption to ensure that PD-side power needs;

With power circuit protection, to protect PD safety;

Zero configuration characteristics of the power supply is automatically supplied to the adaptive equipment;

single fan cooling increase equipment performance;

8 10/100 / 1000Mbps POE ports4Mb packet buffer memory;

Support IEEE 802.1x traffic controlSupport port without link power saving function;

Enquiry

Specifications Send Inquiry Related Products

Technical Specification:

Network Protocol & Standard	IEEE 802.3i IEEE 802.3u IEEE 802.3x IEEE802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Port	8 10/100/1000Mbps RJ45 port
	2 gigabit SFP fiber port
	1 Console port
PoE	8个10/100/1000Mbps RJ45 port support PoE+ power
	Total max 150W
	Single port max 30W
Indicator	10 Link/Act LED indicator
	8 POE LED indicator
	1 Power LED indicator
	1 SYS LED indicator
Performance	Forwarding mode : store-and-forward
	Bandwidth : 20Gbps
	Packet forwarding rate :14.88Mpps
	Support 8K MAC address table
Input Power	100-240V/50-60Hz
Environmental	Operating temperature : 0°~40℃; storage temperature : -40~70℃
Environmental	Operating Humidity : 10%~ 90%, non-condensing ; Storage Humidity : 5%~ 95%, non-condensing
Dimension（LWH）	28518046mm

Software Specifications:

Access Control	L2~L3 Packet filtering			support
	Based on the port, VLAN delivery			support
	Based on time period			support
	Flow-based destination port reset			support
	Flow-based speed limit			support
	Flow-based QoS remarking			support
VLAN	802.1QVLAN			support
	Private VLAN			support
Address Table	Address display / inquiry			support
	IVL/SVL			support
	Static MAC address setting			support
	Dynamic MAC address management			support
	MAC address filtering			support
Port Management	Port aggregation		Manually assemble	support
			Dynamic LACP	support
	Port monitoring			support
	Port speed limit			support
	Storm suppression			support
Spanning Tree	STP(802.1d)			support
	RSTP(802.1w)			support
Multicast Management	IGMPV1/V2/V3			support
	Fast Leave			support
	Multicast address management			support
	Multicast VLAN			support
	Multicast routing port			support
	Static multicast address			support
	Unknown multicast discarded			support
	Multicast filtering			support
QoS DHCP	Port queue			4
	Port priority			support
	802.1P priority			support
	DSCP/ToS priority			support
DHCP	DHCP Client			support
	Option82			support
	DHCP Snooping			support
	DHCP Attack protection			support
System Maintenance	Configure import and export			support
	System time			support
	Ping test			support
	System log	Show / filter		support
		Log server		support
System Management	Web	HTTP		support
	CLI	Telnet		support
		Console		support
	SNMPV1/V2/V3			support
	Cluster management			Support managed
