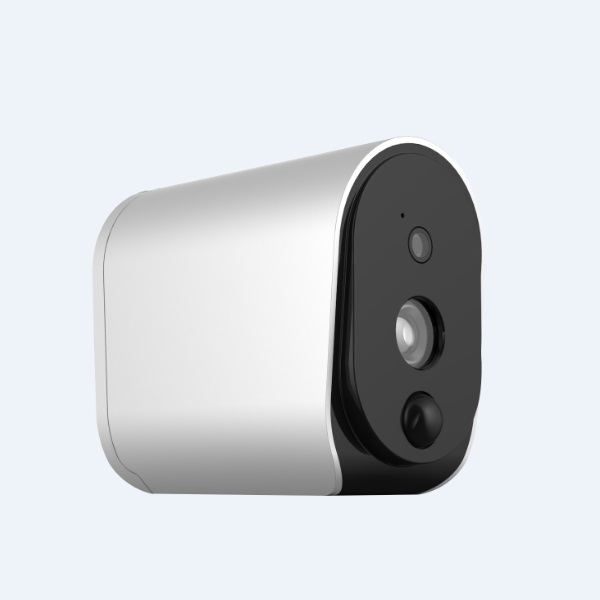

Home Wifi Battery Camera
Features:
Built-in Wi-fi Connection
Built-in Battery Slot
2.0mp 1080P Full HD
Cloud Storage (1 month free)
TF Card Storage (Max 128GB)
Two-way Audio (Noise Reduction)
Infrared Night Vision
PIR Motion Sensor
Motion Detection Recording
Free Mobile App with Alexa Amazon & Google Home
Support Screen Inversion
4 Channel Playback Simultaneously
Streaming Media Forwarding Server
Accurate Low Battery Reminder
USB Cable Charge up
Rechargeable Lithium Battery (Optional)
Online Delete/save Cloud Video via App
Fast and Accurate Message Pushup
OEM for Tuya Version Available
Smart Phone App. supports Amazon Alexa in English, Canadian, Spanish, German, French, Mexican, Italian, Japanese and many other languages in voice wakeup device and cast the screen.
Specifications Send Inquiry Related Products
| Product Colour | White | |
| Plastic Material (External) | Housing | PC plastic |
| Camera Lens | PC plastic | |
| Surface Finishing (Plastic & Metal part) | Housing | glazed |
| Camera Lens | Glossy polishing | |
| Resistance to UV (UVA 340) | 3 years | |
| Gross Weight | 450g | |
| Product Size | 90mm*52mm*81mm | |
| Warranty Period | 2 Years | |
| General Specificatoin | ||
| Battery | Built-in Rechargeable (18650), DC5V-1A, 3-4 months | |
| Power supply | 3.7V | |
| Power consumption | Working: 200ma Standby: 150uA | |
| Operating temperature | -20 ~ 50 ℃, Humidity <95% | |
| Operating humidty | 80% max | |
| Storage temperature | -20 ~ 70 ℃, Humidity <95% | |
| Protection Class | Impact test 0.5Nm | |
| System | ||
| Solution / OS | RTOS | |
| System Security | Three level user authority management | |
| Mobile App Requirement | Android | Android: Android 4.3 or higher |
| Other Mobile Support Support | SamSung, HTC, LG, Sony, Nokia | |
| iOS | iOS 9.X - 10.X ( iPhone 5/6S/7 ) or higher | |
| Mobile APP | Support Configuration/ Live browsing/ Recall/ Talking/ Audio volume adj/ Video adj./ Recording/ Format SD card | |
| Cloud recording storage | Support cloud uploading | Yes |
| Amazon Cloud | Yes | |
| Ring tone | Fixed | |
| Motion Sensor | PIR | |
| Detection range | 3m/ 110 degrees | |
| Sensitivity | High/ Medium High/ Medium/ Low for selection | |
| Suppory TF Card | Max. 32/64GB TF Card | |
| Format TF card | Yes | |
| Support FAT | Yes | |
| Tamper Detection | Yes | |
| Pairing Max units | AP / Scan QR code to add device | |
| On line visitor | Support up to 1 on line visitors | |
| DDNS（Dynamic Domain Name Server） | NO | |
| Video and Sensor | ||
| Image Sensor | 1080P 1/2.7" CMOS sensor | |
| Sensor support options | AWB AGC, IR filter and BLC | |
| Sensor size | 1/3 | |
| SNR | > = 39 dB | |
| Minimum brightness | 1 Lux ( Color mode ) No blur 0.3 Lux ( B&W mode ) No blur | |
| Lens/Viewing angle | 114° | |
| Lens spec | 4mm @ F1.4 | |
| Night Vision | 6pcs 850nm LEDs, IR Distance: 5 meters | |
| IR-Control | IR ON: | night vision view enabled, infrared Ray, ICR auto detect. |
| IR OFF: | night vision view disabled, infrared Ray OFF, ICR stay in day view mode. | |
| Compression standard | H.264/ motion JPEG ( when RF quality dropped ) | |
| Resolution & frame rate | Multi stream:1080P/25fps | |
| Bit Rate | CBR/VBR, output bit rate range: 128～4096kbps TBD | |
| Image adjustment | Brightness, Contrast, Saturation are adjustable. | |
| Audio | ||
| MIC input | 1 Channel Internal -48dB microphone | |
| Speaker output | Internal speaker (8Ω/1W) | |
| Sampling frequency/ | 8-16KHz/16bit | |
| Data compression technology | ADPCM/32kbps | |
| Echo cancellation | Yes | |
| Two-Way Talk | Yes | |
| Effective Volume | Indication tone 75dB @ 0.5m | |
| Mircrophone | Directive | Omni-directional |
| Effective Detection Range | 0.5m max. | |
| Network | ||
| Protocol | TCP/IP, HTTP, DHCP | |
| WiFi | 802.11b/g/n | |
| Network security | WEP, WPA, WPA2 encryption | |
| Wireless Connection | AP hotspot / STA (Station Mode - Client) | |
| RF receiving sensitivity | 802.11n: HT20/MCS 7 10% PER @ -70 dBm, typical 802.11g: 54Mbps 10%PER @ -72dBm, typical 802.11b: 11Mbps 10%PER @ -86 dBm, typical | |
| Output Power | 802.11n: HT20/MCS0 18 dBm typica l802.11n: HT20/MCS7 16 dBm typical 802.11g: 54Mbps 16 dBm typical802.11g: 6Mbps 18 dBm typical 802.11b: 11Mbps 18dBm typical | |
| Wired Connection | No | |
| Pairing | AP | |
| Recording | ||
| Recording mode | Motion detection recording, scheduled recording/ remote recording | |
| Storage | TF Card storage, Cloud storage | |
| Max recording duration | Depends on capacity of the storage device | |
| Full duplex recording | Recording video, two way audio, date/HH:MM:SS printing | |
| Playback | Indication for non-reading recording/ | |
| Storage device full management | overwrite the most earest recorded video | |
| Live browsing | Activate camera by mobile APP | |
| UI/UX interface | Via mobile APP | |
