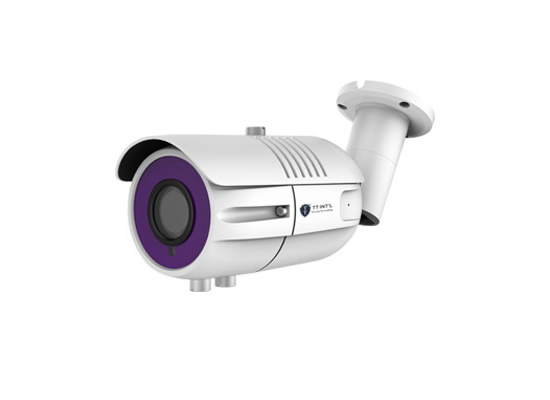

4 in 1 HD 4MP Array LED Varifocal IR Camera
特征:
4 in 1 HD Array LED Varifocal IR Camera
Color CMOS HD Sensor
AHD, TVI, CVI, CVBS Signal
Built-in IR Cutter Filter
2.8-12mm Megapixel Varifocal Lens
8pcs Array LEDs
OSD Menu
HBLC, HDNR, Mask Function
IP66 Weatherproof for Outdoor & Indoor
产品规格 发询盘 相关产品
Model | TT-L713MAHDVI | TT-L72MHDVI | TT-2M-L7VI | TT-L74MHDVI | ||||||||||||
Image Sensor | 1/3”1.3MP Sensor | 1/2.7”2MP SONY Sensor | 1/2.7”2MP Sensor | 1/2.7”4MP Sensor | ||||||||||||
Signal System | PAL/NTSC | |||||||||||||||
Effective Pixels | 1280 (H) * 960 (V) | 1920 (H) *1080(V) | 1920 (H) * 1080(V) | 1944 (H) * 1092 (V) | ||||||||||||
Min. Illumination | 0.01 Lux | 0.01 Lux | 0.1Lux | 0.1Lux | ||||||||||||
Shutter Time | 1/25(1/30) s to 1/50,000 s | |||||||||||||||
Lens | 2.8-12mm Megapixel Varifocal Lens | |||||||||||||||
Day& Night | Auto Switch IR Cut Filter | |||||||||||||||
Wide Dynamic | 110 dB | 120 dB | 100 dB | 120 dB | ||||||||||||
Video Frame Rate | 960p@25fps (PAL) 960p@30fps (NTSC) | 1080p@25fps (PAL) 1080p@30fps (NTSC) | 1080p@25fps (PAL) 1080p@30fps (NTSC) | 4MP@25fps (PAL) 4MP@30fps (NTSC) | ||||||||||||
HD Video Output | Analog HD Signal Output (AHD, CVI, TVI, CVBS 4 in 1 Signals) | |||||||||||||||
Synchronization | Internal Synchronization | |||||||||||||||
CVBS Output | 1Vp-p CVBS Output (75Ω/BNC) | |||||||||||||||
S/N Ratio | More than 50 dB | More than 60 dB | More than 48 dB | More than 62 dB | ||||||||||||
UTC | Support (Optional) | |||||||||||||||
Menu (Optional) | ||||||||||||||||
Camera ID | On / Off (15 Characters, Position Programmable) | |||||||||||||||
Day/Night Mode | Color / BW / EXT | |||||||||||||||
Auto White Balance | ATW / AWC-SET / Indoor / Outdoor / Manual | |||||||||||||||
Private Mask | On/Off, Maximum 4 Zones | |||||||||||||||
Motion Detection | On/Off, Maximum 4 Zones | |||||||||||||||
BLC | On/Off | |||||||||||||||
AGC | On/Off | |||||||||||||||
Language | English / Japanese / Simplified / traditional / Korean / German / French / Italia | |||||||||||||||
Environment Mode | Indoor, Outdoor, Indoor1, Low-Light | |||||||||||||||
Functions | Super WDR, HLC, 3DNR, Electronic Sensitivity, Mirror, Defogging, Positive & Negative Film, Dead Pixel Repair, Intelligent Digital Zoom | |||||||||||||||
General | ||||||||||||||||
Operating Temp. | -20 °C - 55 °C (-4 °F - 113 °F) | |||||||||||||||
Operating Humidity | Humidity 90% or Less (Non-condensing) | |||||||||||||||
Power Supply | DC 12V ±15% | |||||||||||||||
Power Consumption | Max. 10W | |||||||||||||||
IR Range | 35-40 Meters | |||||||||||||||
Net Dimension (mm) | 230 (L) x 90(W) x 82 (H) mm | |||||||||||||||
Net Weight (kg) | 1.5kg | |||||||||||||||
