V6

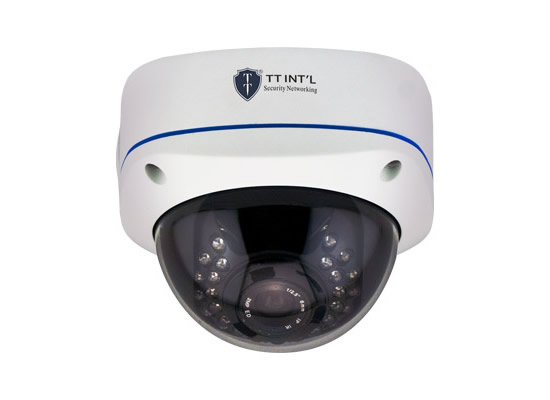

2MP 1080P Star Light True WDR HD Metal IR Dome Camera

特征:

Star Light True WDR HD Metal IR Dome

1/1.9" 2.4MP SONY Sensor (1080P)

Star light 0.001Lux Super Low Illumination

120dB Super WDR

with OSD Menu, Digital Zoom & Motion Detection

AHD, SDI & CVBS Output Simultaneously

6mm Mega Pixel Fixed Lens

30 pcs of Φ5 IR LEDs, IR distance: 25-30m

IP66 Weatherproof for Outdoor & Indoor


咨询

产品规格 发询盘 相关产品



Model

TT-V6WDR2M8

Image Sensor

1/1.9” SONY CMOS (SONY IMX185)

Total Pixels

1956 (H) ×   1266 (V) Approx. 2.47M pixels

Effective   Pixels

1944 (H) ×   1092(V) Approx. 2.12M pixels

Scanning   System

Progressive

Resolution

1080P (30fps),   720P (30fps)

Min-illumination

0.001 LUX

Video Output

SDI and AHD (1080P),   CVBS (960H) 1Vp-p Composite Output (75Ω/BNC)

S/N Ratio

More than 42dB   (AGC off)

ACE

Off / Low /   Middle / High

WDR

120dB

Lens

6mm Mega Pixel Fixed Lens

Brightness

0-20 Grade

AGC

0-20 Grace

SENS-up

Off / X2 / X4   / X8 / X16 / X32

Shutter Speed

AUTO / MANUAL   (1/50\60 ~ 1/60,000 sec)

Defog

Off / On, Low   / Middle / High

BLC

Off / BLC

HLC

Off / HLC

Day &Night

Auto / Color /   B&W / External Triger

Color (AWB)

Auto / Auto   External Triger / Preset / Manual

Monitor

0/1/2/3

DNR

Off / Low / Middle   / High

Mirror

Off / Low /   Middle / High

H-V-REV

Off / On

Sharpness

Off / On

Motion   Sensitivity

0-10 Grade

Privacy Mask

16 + Zones

Language

Chinese /   English / Other Language

Power (Max.)

DC12V   ±10%<1.6W

Video Output

SDI, AHD &   CVBS

Power Consumption

Max. 7W

IR Range

25 -30Meters

Net Dimension (mm)

130mm (W) * 95mm (H)

Net Weight (kg)

1kg
