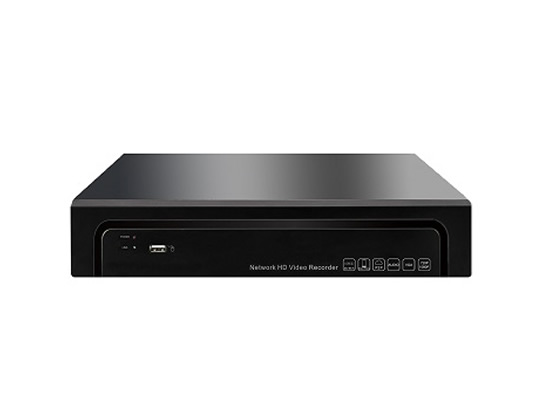

H265 NVR

4-CH 4K H.265 NVR 2HDD

特征:

Can conform to SPR, ONVIF standard and third-party IPC;

Support GB2818 Protocol, ONVIF Protocol into platform;

Support mobile App. cloud service, can one key configure surfing;

Support 4K HD network video preview, storage and playback;

Support H.265, H.264 encode the front self-adaptive connection ;

Support IPC centralize management, including IPC parameter configuration,  information input/output, ,audio intercom and upgrade, etc.;

HDMI video output resolution up to 3840*2160;

Fresh UI operating interface,support one key start recording function;

Support SPRIPC many smart detection functions to insert and linkage ,such as cross area, enter area, leave area, area invade, wandering, goods left, goods lost, facial recognition, license plate, audio input abnormal, defocus and scene change;

Support playback directly function, playback the current recording of the assigned channel under preview multi-screen  to do playback at the same time;

Max support 4CH playback simultaneously and multiple channel playback simultaneously;

Support event, query, playback recording file;

Support double users certification;

Support HDD quota and HDD group storage mode, can allocate different saving space or cycle of recording for different channel;

Support 2*SATA ports;

Support NTP (network timing), SADP(IP auto search), Email(Email service), UPNP(plug and play);


咨询

产品规格 发询盘 相关产品



Model

TT-NVR5042

Parameter type

Parameter

Parameter value

Video &       Audio Input

Network Video     Input

4CH network     compress video  input

Network       Video Connection Bandwidth

50M

Audio Input

IPC composite     Audio input

Video &       Audio Output

HDMI Output

1CH,     Resolution:4K (3840*2160) /30Hz

1920*1080/60Hz

Audio Output

1*RCA port

Video &       Audio encode parameter

Video Standard

H.265/H.264/MJPEG

Recording     Resolution

8M/5M/3M/1080P/720P

Decode Playback

Max support     4CH1080P playback

Recording       management

Record/Snapshot     Way

Manual       recording, timer recording, event recording, motion detection   recording,   alarm   recording, motion detection recording/alarm   recording, motion   detection   recording & alarm recording

Playback Way

Time-phased       playback, routine playback, event playback, external file   playback,   log   playback

Backup Way

Routine       backup, event backup, record cutting backup

Intelligent     Analysis

Intelligent     Analysis   Channels

4CH

Intelligent     Analysis   Function

Target Counting,     Object   Detection, Area Detection, Virtual Cordon, Sound Alarm,   License   Plate   Detection, Face Detection, Fire Detection, Video   Diagnose,   Transformation   Scene, License Plate Black List

HDD

HDD Port

2*SATA ports

Max Capacity

Each port     supports Max 6TB HDD

External       Ports

Network Port

1*RJ45, 10M/100M     self-adaptive LAN port

USB Port

3 ports(1*USB2.0     port in front, 2*USB2.0 ports in back)

Serial Port

1* RS-485

Alarm Input

4CH alarm input,     low electrical level effective, green   connection line port

Alarm Output

1CH alarm     output, Relay touch (1A@24VDC), NO, NC   can program

Network     Management

Network Protocol

ONVIF (support     2.4 version), IPv4,   UPnP( plug & play), NTP (Network Timing   ),     SADP (auto search IP address), PPPoE(dial-up), DHCP (auto   search IP   address) etc.

WIFI

Can       extend 4G

 Others

Power Supply

12V3A

Power     Consumption

(without HDD)

<10W       (without HDD)

Work Temperature

-10℃~+55℃

Work Humidity

10%~90%

Dimension

Equipment:1.5U, 350mm (W)     *240mm (L) *68mm   (H)

Packing:414mm*370mm*134mm

Weight       (without HDD)

N.W:1.7Kg;with packing:2.9Kg

Outside Carton

5pcs/carton.

Dimension:675mm*425mm*385mm

Weight:15.3 Kg.

Installation Way

Desktop     Installation
