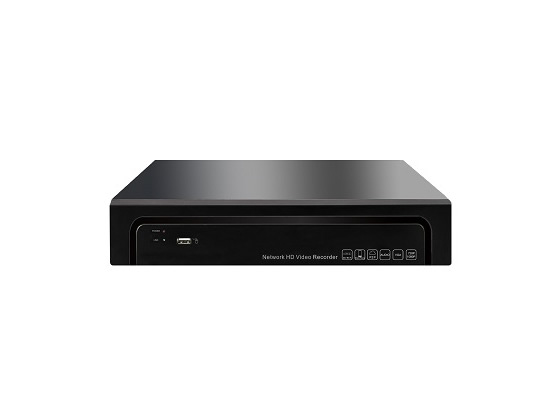

h265 NVR

8CH 4K H.265 NVR 1HDD

特征:

Can conform to SPR, ONVIF standard and third-party IPC;

Support GB2818 Protocol, ONVIF Protocol into platform;

Support mobile App cloud service, can one key configure surfing;

Support 4K HD network video preview, storage and playback;

Support H.265, H.264 encode the front self-adaptive connection ;

Support IPC centralize management, including IPC parameter configuration,  information input/output ,audio intercom and upgrade, etc.;

HDMI video output resolution up to 3840*2160;

Fresh UI operating interface, support one key start recording function;

Support SPR IPC many smart detection functions to insert and linkage ,such as cross area, enter area, leave area, area invade, wandering, goods left, goods lost, facial recognition, license plate, audio input abnormal, defocusand scene change;

Support playback directly function, playback the current recording of the assigned channel under preview multi-screen  to do playback at the same time;

Max support 4CH playback simultaneously and multiple channel playback simultaneously;

Support event, query, playback recording file;

Support double users certification;

Support HDD quota and HDD group storage mode, can allocate different saving space or cycle of recording for different channel;

Support 1*SATA ports;

Support NTP (network timing), SADP(IP auto search), Email(Email service), UPNP(plug and play);


咨询

产品规格 发询盘 相关产品



Parameter type

Parameter

Parameter value

Video &   Audio Input

Network Video     Input

8CH network   compress video  input

Network     Video Connection Bandwidth

80M

Audio Input

IPC     composite Audio input

Video &   Audio Output

HDMI Output

1CHResolution:4K(3840*2160)/30Hz,1920*1080/60Hz

Audio Output

1*RCA port

Video &   Audio encode   parameter

Video Standard

H.265/H.264/MJPEG

Recording     Resolution

8M/5M/3M/1080P/720P

Decode Playback

Max support     4CH 1080P playback

Recording   management

Record/Snapshot   Way

Manual   recording, timer recording, event   recording, motion detection   recording, alarm recording, motion detection   recording/alarm   recording, motion detection recording & alarm recording

Playback Way

Time-phased   playback, routine playback, event   playback, external file playback,   log playback

Backup Way

Routine backup,   event backup, record cutting   backup

Intelligent   Analysis

Intelligent   Analysis Channels

8CH

Intelligent   Analysis Function

Target Counting,   Object Detection, Area   Detection, Virtual Cordon, Sound Alarm, License   Plate Detection, Face   Detection, Fire Detection, Video Diagnose,   Transformation Scene, License   Plate Black List

HDD

HDD Port

1*SATA ports

Max Capacity

Each port   supports Max 6TB HDD

External Ports

Network Port

1*RJ45, 10M/100M   self-adaptive LAN port

USB Port

3 ports(1*USB2.0   port in front,2*USB2.0 ports in  back)

Serial Port

1* RS-485

Alarm Input

4CH alarm     input, low   electrical level effective,green connection   line port

Alarm Output

1CH alarm     output,Relay   touch (1A@24VDC), NO, NC can   program

Network   Management

Network Protocol

ONVIF(support 2.4     version), IPv4, UPnP(plug & play), NTP(Network Timing), SADP(auto     search IP address), PPPoE(dial-up), DHCP(auto search IP   address)etc.

WIFI

Can extend 4G

  Others

Power Supply

DC 12V2A

Power   Consumption

(without HDD)

<10W(without HDD)

Work Temperature

-10℃~+55℃

Work Humidity

10%~90%

Dimension

Equipment:1.5U,350mm(W)*240mm(L)*68mm(H)

Packing:414mm*370mm*134mm

Weight(without HDD)

N.W:1.7Kg;with packing:2.9Kg

Outside Carton

5pcs/carton.Dimension:675mm*425mm*385mm;weight:15.3 Kg.

Installation Way

Desktop   Installation
