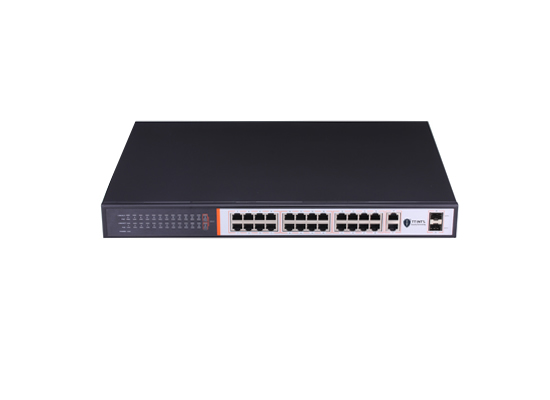

24 Port 10/100Mbps PoE Switch
特征:
24-Port 10/100Mbps + 2 Gigabit Combo uplink Port unmanaged PoE Switch
24 -Port supply power to PoE Powered Device
Complies with the IEEE 802.3f/at standard
If 12 POE port work only, then complies with IEEE 802.3at standard, 25W each port
Support MAC address auto-learning and auto-aging
Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
产品规格 发询盘 相关产品
Product name | 24-ports unmanaged POE switch |
Network protocols and standards | - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX |
Power Specifications | - Power consumption: maximum 400W - Voltage: 100 - 240 VAC, 50 -60 Hz |
Network interface | - 24 10/100M ports (MDI / MDIX adaptive); ports with PoE features - 2 10/100/1000M Gigabit copper RJ45 ports (MDI / MDIX adaptive) - 2 SFP GBIC fiber module slots |
Physical Specifications | - Dimensions: 440*290*44mm - Weight: 5.6kg |
Environmental norms | Operating Temperature: 0 ° - 50 ° C (32 ° - 104 ° F) Storage Temperature: -20 ° - 70 ° C (-4 ° - 158 ° F) Operating Humidity: Maximum relative humidity 90% without condensation Storage humidity: 95% maximum relative humidity, non-condensing Working height: up to 10,000 feet (3,000 meters) storage altitude: the largest 10,000 feet (3,000 meters) |
LEDs | - Each device: power light - Per port (10/100 and Gigabit): connection speed indicator - Per PoE port: PoE power-on LED |
Certification | - CE, FCC, RoHS, 1 year warranty |
Package | 24 Port PoE switch, Power cord, user manual |
