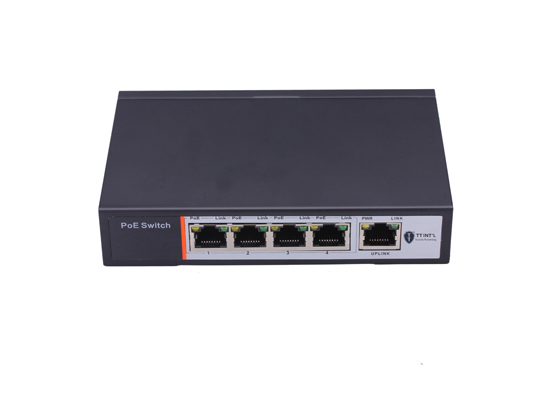

4+1 Port 10/100M PoE Switch

特征:

IEEE 802.3af Power over Ethernet standard

Supports 10/100Mbps fast Ethernet

4 x 100Mbps Auto-MDIX PoE ports

Provides up to 15.4 watts for PoE

Automatically detects the PoE class level of a Powered Device

1Gbps bandwidth

Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps

Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity

Full wire-speed non-blocking reception and transmission

Store-and-forward switching method

Back pressure Flow Control for Half-Duplex mode

IEEE 802.3x Flow Control for Full-Duplex mode

Plug and Play

产品规格发询盘相关产品

Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3x Flow Control
Ports	4x100M Auto-MDIX PoE / PoE+ RJ-45 ports
Data Transfer Rate	Ethernet: 10/100 Mbps (Half / Full Duplex)
Forwarding Rate	100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
Switch capacity	1Gbps
Power	100-240 V, 50/60 Hz
LED indicator	Power, PoE, Link / Activity
Power Consumption	Min: 8 Watts (standby) Max: 60 Watts
Temperature	Operating: 0° ~ 45°C (32° ~ 113°F) Storage: -20° ~ 90°C (-4° ~ 194°F)
Humidity	Max 90% (non-condensing)
Dimensions	92 x 82 x 22 mm
Weight	0.7kg
Certifications	CE, FCC ROHS
Power over Ethernet	Up to 15.4 watts for PoE PoE: pin 3,6 for power- and pin 1,2 for power+
