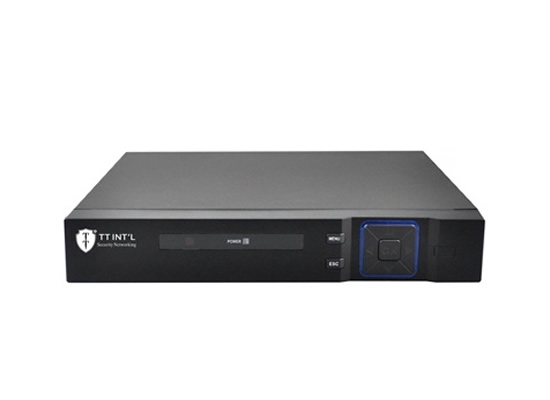

16 Channel 1080N DVR 5 in 1 XVR 2HDD
特征:
H.264 Video Compression Format
5 in 1 Hybrid Digital Video Recorder
Support AHD, TVI, CVI, IP and CVBS Input
Analog Input: 16-CH 1080N HD Camera
Hybrid Input: 8-CH1080N Analog HD & 8-CH 1080P IP Camera
Digital Input: 16-CH 960P IP Camera
Support Max. 16-CH 1080P Real-time Preview
Support 16-CH 1080N Playback, 2-CH Hybrid Playback, 4-CH Network Playback
USB/DVR-RW/Network Backup
Support HDMI and VGA, CVBS Output Optional
Support UTC Control
Support 2 HDD, up to 6T Max.
Support Multiple language
P2P, Mobile App. for iPhone & Android Smart Phone Remote View
产品规格 发询盘 相关产品
Model | TT-XVR9N216 | |
System | Video Compression Format | H.264 |
Video System | NTSC / PAL | |
Operation System | Embedded Linux | |
Video Input Model | 5 in 1 HD Signal (AHD,TVI,CVI, IP, CVBS)Input | |
Video/Audio Input | Analog video input | 16 Channel BNC Ports |
Network | 1 Channel RJ-45 port | |
Audio input | 4 Channel RCA, 2.0Vp-p, 1000 Ohm | |
Video/Audio Output | HDMI/VGA Output | 1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Audio Output | 1 Channel RCA, 2.0Vp-p, 1000 Ohm | |
Intercom | 2-Way Audio | |
Recording | Recording Channel | Analog: 16 Channel 1080N Real-time |
Hybrid: 12 Channel 1080N Analog & 4 Channel 1080P IP 8 Channel 1080N Analog & 8 Channel 1080P IP 4 Channel 1080N Analog & 12 Channel 1080P IP | ||
Network: 16 Channel 960P IP / 4 Channel 3.0mp IP / 2 Channel 5.0mp IP | ||
Recording Mode | Manual/Alarm/ Detection / Continuous | |
Playback | Playback Channel | Analog: 16 CH 1080N |
Hybrid: 2 Channel | ||
Digital: 4 Channel 1080P / 4 Channel 3.0mp /2 Channel 5.0mp | ||
Playback Mode | Instant playback, normal playback, event playback, tag playback, smart playback, external file playback, Interval playback, log playback | |
Playback Software | General H.264 Player | |
Storage | HDD Interface | 2 * SATA Fixed HDD |
Capability | SATA HDD up to 6TB each | |
Backup | USB Disk | 2 * USB 2.0 port |
Backup mode | Network Download / Flash USB / Movable HDD/SATA HDD / DVD-RW | |
PTZ | PTZ port | 1 RS-485 port |
Network | Interface | RJ-45 Port/10M/100M/1,000Mbps Ethernet |
Protocol | IPv6,HTTPS,UPnP, TCP/IP, DHCP, DDNS, DNS, PPPoE, UPNP, NTP, SMTP, Onvif | |
Smart Phone | IOS and Android | |
Computer System | Windows 7, 8 , 2000, XP, Vista / Mac OS x 10.6/10.7 | |
Compatible Browser | Google Chrome, Internet Explorer (IE 11), Mozilla Firefox, Safari | |
Free Cloud | P2P Function | |
IP Camera Protocol | ONVIFV2.3, Compatible to Third Party Device | |
Others | Operating Temperature | 0 & deg; C ~ 55 & deg;C |
Operating Humidity | 10% ~ 90% | |
Dimension | 326*240*52 mm | |
Weight | 2.2kg | |
Package | 1 * USB Mouse | |
8 * HDD Screw | ||
1 *DC12V/5A Power Adapter | ||
User manual & CD | ||
