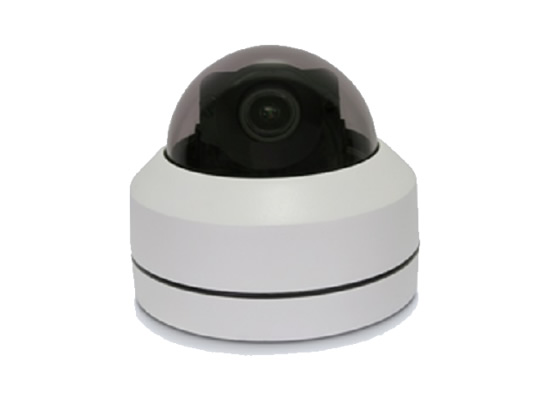

2.5 Inch 2MP 4X HD Analog Mini Dome Camera

Особенности:

● 2.0MP 1/2.9 Low illumination CMOS, 3X optical zoom;

● Precision motor-driven, keen responsive, smoothly operation, the precision deviation less than 0.1 degree;

● Support lightning protection, surge protection and voltage transient protection;

● Protection Grade: IP66;

● Support UTC control, the distance of video transmission up to 500 meters in theory;

● All metal case;

Features：

● 3PCS Infrared lights, effective IR distance 20m.

● 355°endless pan range and 0°- 90°tilt range.

● Max. Pan preset speed of 25°/s and max. Tilt preset speed of 20°/s

● Pan control speed 0°~25°/s, tilt control speed 0°~20°/s

● Support 16 presets, 1 patrol, 1 pattern, support AB Scan.

● Support Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiple.

● Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)

Application：

It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.

Запрос

Характеристики Отправить запрос Сопутствующие товары

Parametre/Model			TT-MAPTZ2M4X
PTZ Spec	IR distance		20m
	Pan range and speed		Pan 355°endless rotate, speed 0～25°/S
	Tilt range and speed		0°～90°, speed 0～20°/S
	Preset		16
	Patrol		1 group
	Pattern		1 group
	AB scan		Support
	Park action		Support, can select preset, patrol, pattern, A.B scan
Zoom module	Video parameter	Resolution	2.0 MP 1920 (H) X 1080 (V) 200N 1920X1080
		Sensor	1/2.9 Low illumination CMOS
		Illumination	Color: 0.2Lux@F2 Black: 0.01Lux@F2
		S/N	≥41dB
	Lens Parameter	Optical zoom	2.8 mm～12mm (4X )
		Angle view	106.6°——51.8°
	function	White balance	auto/manual
		Exposure mode	auto/manual
		BLC	Support
		Gain control	Support
		Electronic shutter	1/30s~1/10,000s
		Digital WDR	Support
		DNR	2D/3D digital
		Focus mode	auto/manual
		Day night mode	Support
		Digital zoom	No
		Edge illumination compensation	Support
Port	Video port		BNC port
	Power and control port		DC 12V/1A, RS485
others	Consumption		10W (max)
	Working temperature/Humidity		-20℃～+60℃, ≤90%RH (frostless)
	Protection Grade		TVS3000V lightning protection, surge protection and voltage transient protection
